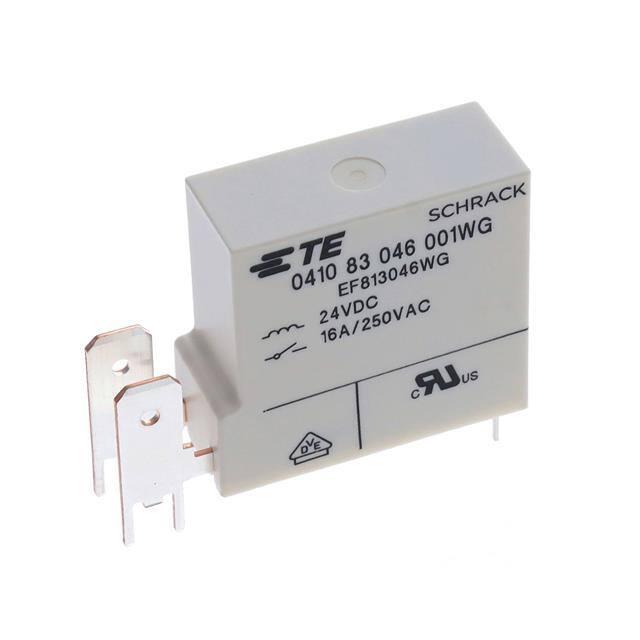

General Purpose Low Power PCB Relays SCHRACK Power Relay 41083 3mm n 1 pole 16A, 1 form X, double make, bridging contact gap >3mm n Switching capacity 4000VA n Coil power 360mW n 4kV/8mm coil-contact, insulation to VDE 0631 and 0700 n Ambient temperature 85°C; max. 105° at 10A n Quick connect terminals for load side n Materials in accordance to IEC 60335-1 n Contact Typical applications Washing machines, tumble dryers, absolute safe power supply disconnection in other domestic applications. Z Approvals Coil Data VDE REG.-Nr. 40001454, UL E214025 Technical data of approved types on request. Contact Data Contact arrangement 1 form X, double make (NO) Contact gap >3mm/full disconnection Rated voltage 250VAC Max. switching voltage 400VAC Rated current 16A Limiting making current, max. 4s, duty factor 10% 20A Breaking capacity max. 4000VA Contact material AgNi Contact style single contact, bridging contact Frequency of operation, with/without load 600/36000h-1 Contact ratings Type Contact IEC 61810 410 83 A (NO) 410 83 A (NO) 410 83 A (NO) Load All figures are given for coil without pre-energization, at ambient temperature +23°C. Other coil voltages on request. Cycles 16A, 250VAC resistive, 85°C 10A, 250VAC resistive, 105°C 10A, 400VAC resistive, 105°C Mechanical endurance Coil voltage range 6 to 60VDC Operative range, IEC 61810 1 Coil insulation system according UL1446 class F Coil versions, DC coil Coil Rated Operate Release Coil Rated coil code voltage voltage voltage resistance power VDC VDC VDC Ω±10% mW 053 9 5.9 0.68 230 360 054 6 3.9 0.45 100 360 050 12 7.9 0.9 400 360 046 24 15.8 1.8 1600 360 043 48 31.6 3.6 6400 360 042 60 39.5 4.5 10000 360 30x103 100x103 100x103 >1x106 operations Insulation Data Initial dielectric strength between open contacts between contact and coil 2500Vrms 4000Vrms Initial surge withstand voltage between contact and coil 8000V (1.2/50μs) Clearance/creepage between contact and coil ≥8/8mm Material group of insulation parts IIIa Tracking index of relay base PTI250V 07-2017, Rev. 0717 www.te.com © 2012 Tyco Electronics Corporation, a TE Connectivity Ltd. company. Catalog and product specification according to IEC 61810-1 and to be used only together with the ‘Definitions’ section. Catalog and product data is subject to the terms of the disclaimer and all chapters of the ‘Definitions’ section, available at http://relays.te.com/definitions Catalog product data, ‘Definitions’ section, application notes and all specifications are subject to change. 1 General Purpose Low Power PCB Relays SCHRACK Power Relay 41083 3mm (Continued) Other Data Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content refer to the Product Compliance Support Center at www.te.com/customersupport/rohssupportcenter Resistance to heat and fire WG version according EN60335-1, par.30 Ambient temperature -20 to +85°C max. +105°C at 10A Category of environmental protection IEC 61810 RTII - flux proof Vibration resistance (functional), form A (NO), 10 to 500Hz 10g Shock resistance (destructive) 100g Terminal type PCB-THT, quick connect for load side Weight 24g Resistance to soldering heat THT IEC 60068-2-20, flux proof version 270°C/10s Packaging/unit tray/75 pcs., box/1050 pcs. PCB layout / terminal assignment Bottom view on solder pins 1 form X, double make contact Dimensions Product code structure Typical product code 041083 050 001 WG Type 41083 Power Relay 410 ​83 3 ​mm Coil Coil code: please refer to coil versions table Version 001 1 form X. double make (NO) contact Version WG Product in accordance with IEC 60335-1 (domestic appliances) Other types on request. Product code Contact arrangement Contact material Coil Version 0410 83 046 001 1 form X AgNi 24VDC Standard 0410 83 046 001WG double make (NO) IEC60335-1 compliant 0410 83 050 001WG 3mm contact gap 12VDC 0410 83 053 001WG 9VDC 0410 83 054 001WG 6VDC Part Number 4-1415410-8 8-1415536-6 8-1415536-7 8-1415536-8 8-1415536-9 This list represents the most common types and does not show all variants covered by this datasheet. Other types on request. 2 07-2017, Rev. 0717 www.te.com © 2012 Tyco Electronics Corporation, a TE Connectivity Ltd. company. Catalog and product specification according to IEC 61810-1 and to be used only together with the ‘Definitions’ section. Catalog and product data is subject to the terms of the disclaimer and all chapters of the ‘Definitions’ section, available at http://relays.te.com/definitions Catalog product data, ‘Definitions’ section, application notes and all specifications are subject to change.
