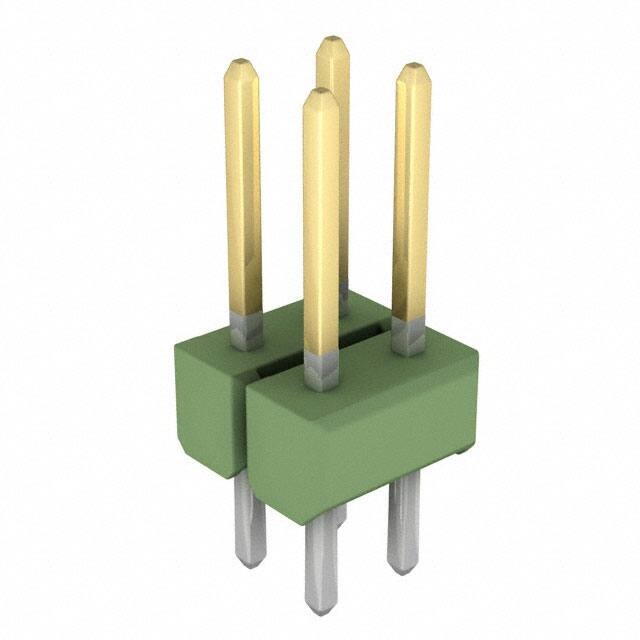

829394-2

| | | Search Products Documentation Resources Home > Products > By Type > PCB Connectors My Account Customer Support > Product Feature Selector > Product Details 829394 - 2 Product Details Quick Links .100 inch AMPMODU Headers ( Statement of Compliance Always EU RoHS/ELV Compliant 829394 ) Product Highlights: ? Header ? Header Type = Breakaway ? Number of Rows = Dual ? Number of Positions = 4 ? Mating Post Length = 6.80 mm -2 Active View all Features Products Check Pricing & Availability Search for Tooling Product Feature Selector Contact Us About This Product | Find Similar Documentation & Additional Information Product Drawings: ? AMPMODU II PINHEADER, DUAL ROW AMPMODU II STIFTLEIST... (PDF, English) Additional Information: ? Product Line Information Related Products: ? Tooling Catalog Pages/Data Sheets: ? None Available Product Specifications: ? None Available Application Specifications: ? None Available Instruction Sheets: ? None Available CAD Files: ( CAD Format & Compression Information ? 2D Drawing (DXF, Version A2) ? 3D Model (IGES, Version A2) ? 3D Model (STEP, Version A2) ) List all Documents Product Features (Please use the Product Drawing for all design activity) Product Type Features: ? Product Type = Header ? Number of Positions =4 ? Mount Angle = Vertical ? PCB Retention Feature = No ? Surface Mount Compatible = No ? Board Standoff = Without ? Mounting Ears = Without ? Mating Connector Lock = Without ? Profile = Standard ? Comment = Headers are side - to - side stackable. Contact Related Features: ? Contact Mating Area Plating Material (30) ? Contact Material = Phosphor Bronze Housing Related Features: ? Housing Material = Thermoplastic Polyester ? Housing Flammability Rating = UL 94V -0 Industry Standards: ? RoHS/ELV Compliance = RoHS compliant, ELV compliant ? Lead Free Solder Processes = Wave solder capable to 240°C, Wave solder capable to 260° C, Wave solder capable to 265°C ? RoHS/ELV Compliance History = Always was RoHS compliant Mechanical Attachment: ? Mating Post Length (mm [in]) = 6.80 [0.267] ? Panel Attachment = Without Termination Related Features: ? Termination (Solder) Post Length (mm [in]) 3.36 [0.132] ? Solder Tail Contact Plating = Tin Body Related Features: ? Header Type = Breakaway ? Number of Rows = Dual ? Centerline, Matrix (mm [in]) [.100 x .100] ? Selectively Loaded = No ? Mount Type = PC Board = Gold = Conditions for Usage: ? High Temperature Housing Operation/Application: ? High Speed Serial Data Connector Other: ? Brand = AMP = 2.54 x 2.54 Provide Website Feedback = No | Contact Customer Support Home | Customer Support | Suppliers | Site Map | Privacy Policy © 2008 Tyco Electronics Corporation All Rights Reserved | Browser Support = No
