85-030A-0U

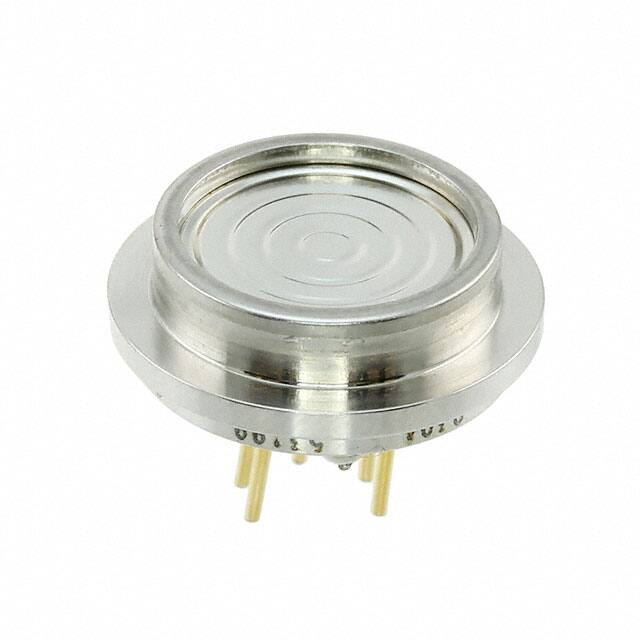

te.com 85 Uncompensated SPECIFICATIONS     FEATIRES     -40ºC to +125ºC Operating Temperature Range Up to ±0.1% Pressure Non Linearity Solid State Reliability Weldable/Threaded Process Fittings       Small Profile 0 - 100mV Output Absolute and Gage The 85 vacuum uncompensated pressure sensor is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The 85 vacuum uncompensated pressure sensor is offered in a weldable package or with a variety of threaded fittings such as 1/4 and 1/8NPT, 1/4BSP as well as other  custom process fittings.  The 85 uncompensated is designed for OEM applications where compatibility with corrosive media is required. The sensing package  utilizes silicon oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element.  APPLICATIONS 316L SS Pressure Sensor Please refer to the 85 compensated and constant voltage datasheets for more information on different features of the 85. Medical Instruments Process Control Fresh & Waste Water Measurements Partial Vacuum Gas Measurement Pressure Transmitters Tank Level Systems (RV & Industrial) CLICK HERE › CONNECT WITH A SPECIALIST TE CONNECTIVITY SENSORS /// 85U REVA 10/2021 Page 1 85 Digital Output Pressure Sensor PERFORMANCE SPECIFICATIONS Unless otherwise specified, Supply Current: 1.5 mA; Ambient Temperature: 25°C PARAMETERS 005 PSIA 005 PSIG & ≥15PSIG MIN TYP MAX Sensitivity 12 15 Zero Pressure Output -10 - Pressure Non Linearity -0.2 Pressure Hysteresis UNITS NOTES MIN TYP 18 12 - 27 mV/V @Span 10 -6.0 - 8.0 mV/V 1 - 0.2 -0.1 - 0.1 %Span 2，3 -0.10 - 0.10 -0.05 - 0.05 %Span 3 - ±0.02 - - ±0.02 - %Span Bridge Resistance 4.0K 5.0K 6.0K 3.8K - 5.8K Ω 4 Thermal Hysteresis – Span -0.25 ±0.05 0.25 -0.25 ±0.05 0.25 %Span 5 Thermal Hysteresis – Offset -0.25 ±0.05 0.25 -0.25 ±0.05 0.25 %Span 5 Temperature Coefficient – Resistance - 2.4K - 1.30K 1.51K 1.75K PPM/°C 5 Temperature Coefficient – Span - -2.0K - -1.65K -1.25K -1.0K PPM/°C 5 Temperature Coefficient – Offset -80 - 80 -30 - 30 µV/V/°C 3，5 Long Term Stability – Span - ±0.10 - - ±0.10 - %Span/Year Long Term Stability – Offset - ±0.25 - - ±0.10 - %Span/Year Supply Current 0.5 1.5 2.0 0.5 1.5 2.0 mA Supply Voltage - 5 9.5 - 5 9.5 V Output Noise (10Hz to 1kHz) - 1.0 - - 1.0 - µV p-p Response Time (10% to 90%) - 0.1 - - 0.1 - ms Insulation Resistance (50VDC) 50M - - 50M - - Ω 6 Pressure Overload - - 3X - - 3X Rated 7 Pressure Burst - - 4X - - 4X Rated 8 Operating Temperature -40 - 125 -40 - 125 ºC Storage Temperature -50 - 125 -50 - 125 ºC Repeatability Media – Pressure Port MAX 3 Liquids and Gases compatible with 316/316L Stainless Steel Notes 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. Measured at vacuum for absolute (A) and at ambient for gage (G). Best fit straight line. Values for 5PSIG devices are as follows: Non-linearity: ±0.2% max Temp coefficient (offset): -80 min, 80 max Long term stability (offset): ±0.25 TYP Pressure hysteresis:-0.1min,0.1max. Bridge resistance is measured with both –E pins shorted together. TC values are first order coefficients to a quadratic fit over a temperature range of -20 to +85°C (0 to +50°C for 5psi). Between case and sending element. The maximum pressure that can be applied to a transducer without rupture of either the sensing element or transducer. The maximum pressure that can be applied without changing the transducer’s performance or accuracy Standard gage units are not recommended for vacuum applications. Testing: 10.1 Units are not tested over temperature or pressure. 10.2 A final test is performed @ 1.5mA and room temperature for part functionality. 10.3 All units are subjected to 100% drift test. Marking: Part marked with Model Number, Pressure Range, Type, Lot Number, Serial Number and Date Code. Shipping and Packaging: The stainless steel diaphragm is protected by a static dissipative cap (No fitting options only). Each unit will be packaged individually in a plastic vial with anti-static foam. Product description: Model 85-XXXX-XU(T) is a uncompensated micro machined piezoresistive silicon pressure sensor TE CONNECTIVITY SENSORS /// 85U REVA 10/2021 Page 2 85 Digital Output Pressure Sensor 14. Direct mechanical contact with diaphragm is prohibited. Diaphragm surface must remain free of defects (scratches, punctures, dents, fingerprints, etc.) for device to operate properly. Caution is advised when handling parts with exposed diaphragms. Use protective cap whenever devices are not in use. DIMENSIONS Dimensions are in inches mm TE CONNECTIVITY SENSORS /// 85U REVA 10/2021 Page 3 85 Digital Output Pressure Sensor RECOMMENDED MOUNTING DIMENSIONS CONNECTIONS TE CONNECTIVITY SENSORS /// 85U REVA 10/2021 Page 4 85 Digital Output Pressure Sensor ORDERING INFORMATION Part Number 85 – 030 G – 3 U T Pressure Range [psi] Vent G A Tube No Tube T [Blank] 005 015 030 050 100 300 500 Electrical Open Bridge,Uncomp U [Blank] 1 2 3 4 5 8 9 Pressure Type Gage Absolute Fitting Type No Fitting,Weldable 1/4-18 NPT,7/8 HE X 1/8 -27NPT,7/8 HEX 7/16 -20UNF,7/8 HEX 1/4 NPT,5/8 HEX 1/4 BSP,3/4 HEX 1/8 NPT,5/8 HEX 1/4 BSP,7/8 HEX CLICK HERE › CONNECT WITH A SPECIALIST NORTH AMERICA Tel +1 800 522 6752 EUROPE Tel +31 73 624 6999 ASIA Tel +86 0400 820 6015 te.com/sensors TE Connectivity, TE, TE Connectivity (logo) and Every Connection Counts are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application. © 2021 TE Connectivity Corporation. All Rights Reserved. Version A7 02/2021 TE CONNECTIVITY SENSORS /// 85U REVA 10/2021 Page 5
