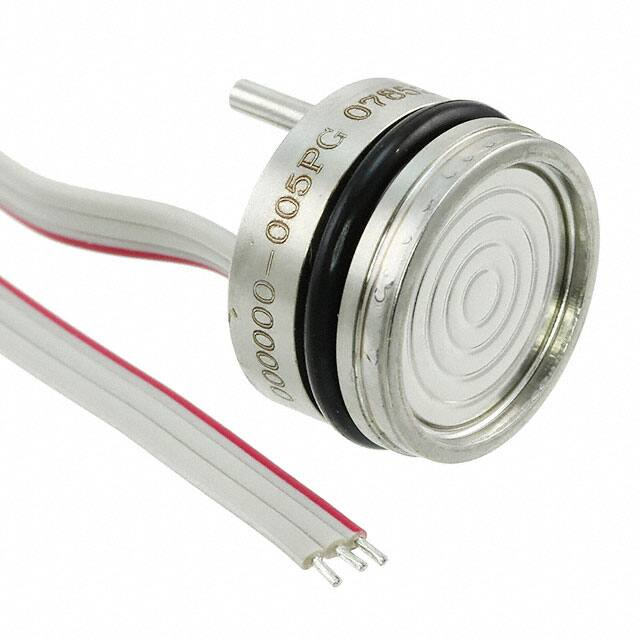

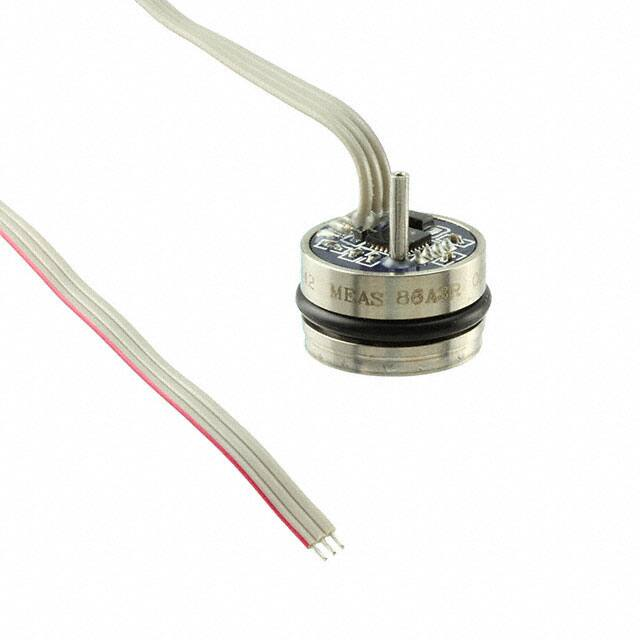

(Image displays Absolute type) 86A SPECIFICATIONS      316L SS Pressure Sensor Small Profile 0.5 - 4.5V High Level Output Gage, Absolute ASIC Calibrated The 86A is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The 86A is designed for O-ring mounting. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. The 86A is designed for high performance, low pressure applications. A custom ASIC is used for temperature compensation, offset correction, and provides an amplified output of 0.5 to 4.5V. For a similar sensor with a plastic threaded fitting, refer to the LM pressure transducer. SENSOR SOLUTIONS ///86A 09/2017 Page 1 86A FEATURES      O-Ring Mount -20ºC to +85ºC Operating Temperature Range ±1.0% Pressure Non Linearity Down to ±3.0% Total Error Band Solid State Reliability APPLICATIONS         Level Controls Tank Level Measurement OEM Equipment Corrosive Fluids and Gas Measurement Systems Sealed Systems Manifold Pressure Measurement Barometric Pressure Measurement Submersible Depth Monitoring STANDARD RANGES Range psig 0 to 1  0 to 2  0 to 5  0 to 15  0 to 30  0 to 50  0 to 100  0 to 150  *Intermediate ranges available, contact factory. SENSOR SOLUTIONS ///86A psia      Range 0 to .07 0 to .14 0 to .35 0 to 1 0 to 2 0 to 5 0 to 7 0 to 10 09/2017 Barg         Bara      Page 2 86A PERFORMANCE SPECIFICATIONS Supply Voltage: 5.0Vdc Ambient Temperature: 25°C (unless otherwise specified) PARAMETERS MIN TYP Full Scale Output Span Zero Pressure Output (Offset) Pressure Non Linearity Pressure Hysteresis MAX 4.5 ±0.3 -0.1 Repeatability NOTES V 0.5 -1 UNITS V 1 %Span 0.1 %Span ±0.02 1 %Span Temperature Error – Span (0°C to 40°C) 1, 2psi and .07bar: ±2.0 ≥5psi or ≥.35bar: ±1.5 %Span 2 Temperature Error – Zero (0°C to 40°C) 1, 2psi and .07bar: ±2.0 ≥5psi or ≥.35bar: ±1.5 %Span 2 %Span 1 Accuracy (combined linearity, hysteresis & repeatability) 0.25 Total Error Band (includes calibration errors above & temperature effects over the compensated range) Supply Voltage Insulation Resistance (50Vdc) 1, 2psi and .07bar: ±7 5psi and .35bar: ±5 >5psi or .35bar: ±3 4.75 5.00 Operating Temperature Media – Pressure Port 5.25 50 Pressure Overload Compensated Temperature %Span V 3 MΩ 4 3X Rated 0 +40 ºC -20 +85 ºC Liquids and Gases compatible with 316L Stainless Steel Notes 1. Best fit straight line. 2. Over the compensated temperature range with respect to 25°C. 3. Guarantees output/input ratiometricity. 4. Between case and sensing element. 5. The maximum pressure that can be applied to a transducer without rupture of either the sensing element or transducer. SENSOR SOLUTIONS ///86A 09/2017 Page 3 86A DIMENSIONS SENSOR SOLUTIONS ///86A 09/2017 Page 4 86A SENSOR SOLUTIONS ///86A 09/2017 Page 5 86A ORDERING INFORMATION 86A Model Name Output 3 R ― 00000 0 ― 001P G 3 = 0.5 to 4.5V Ratio Connection P = Solder Pads R = 6" Ribbon Cable C = 6" Ribbon cable with Connector X = Special Connector Custom P/N 0's = Standard P/N Port Type 0 = Standard X = Special Pressure Range See Pressure Range Table Pressure Unit A = Absolute G = Gage Pressure Range psi bar 001P* .07B* 002P* 005P* .35B* 015P 001B 030P 002B 050P 005B 100P 007B 150P 010B *Gage Only NORTH AMERICA EUROPE ASIA Measurement Specialties, Inc., a TE Connectivity Company Tel: 800-522-6752 Email: customercare.frmt@te.com Measurement Specialties (Europe), Ltd., a TE Connectivity Company Tel: 800-440-5100 Email: customercare.lcsb@te.com Measurement Specialties (China), Ltd., a TE Connectivity Company Tel: 0400-820-6015 Email: customercare.shzn@te.com TE.com/sensorsolutions Measurement Specialties, Inc., a TE Connectivity company. Measurement Specialties, TE Connectivity, TE Connectivity (logo) and EVERY CONNECTION COUNTS are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application. © 2015 TE Connectivity Ltd. family of companies SENSOR SOLUTIONS ///86A All Rights Reserved. 09/2017 Page 6
