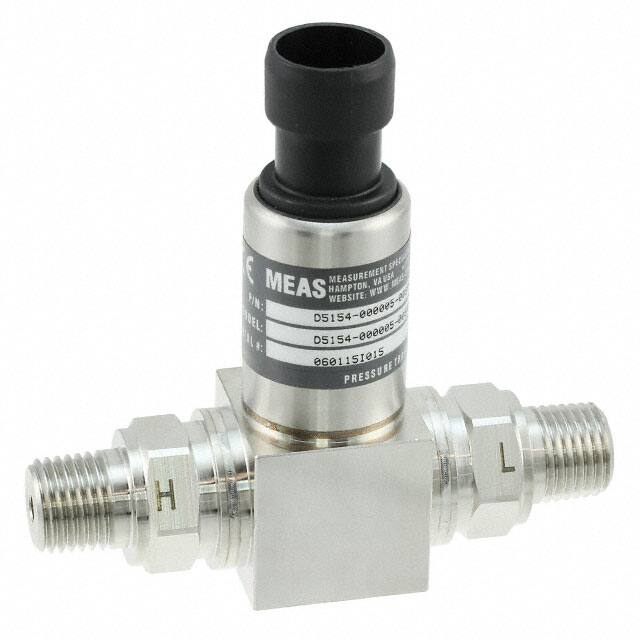

D5154-000005-005PD

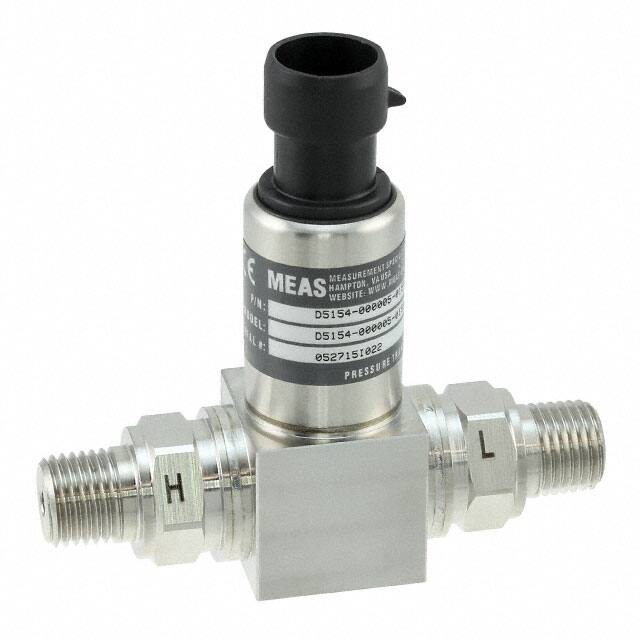

D5100 Industrial Differential Pressure Transducer SPECIFICATIONS      316L Stainless Steel Wetted Surface Voltage, Current, and mV Outputs True Wet/Wet Differential CE Certified (amplified version only) Variety of Pressure Ports and Electrical Connections FEATURES       Heavy Industrial CE Approval (amplified only) As Low As ±0.1% Pressure Non Linearity Rugged Construction: Can Withstand 50g Shock/20g Vibration Up to -40°C to +125°C Operating Temperature Range Excellent Stability Various Output, Pressure Ports and Electrical Connections The D5100 series from Measurement Specialties sets the price and performance standard for differential pressure transducers used in demanding environments. The amplified model of the D5100 series exceeds the latest heavy industrial CE requirements including surge protection and reverse polarity protection. The amplified and mV output pressure transducers both have two pressure ports for high and low pressures and all wetted parts are made of 316L stainless steel. They come in a variety of electrical configurations and ranges from 1 to 500 psi (up to 35 Bar). APPLICATIONS      Process Controls Tank Level Measurement Filter Performance Monitoring Corrosive Fluids and Gas Measurement Systems Flow Measurements SENSOR SOLUTIONS ///D5100 11/2020 Page 1 D5100 Industrial Differential Pressure Transducer STANDARD RANGES Range 0 to 1 0 to 5 0 to 15 0 to 30 0 to 50 0 to 100 0 to 300 0 to 500 psiD         Range 0 to 0.07 0 to 0.35 0 to 1 0 to 2 0 to 3.5 0 to 7 0 to 20 0 to 35 barD         PERFORMANCE SPECIFICATIONS (AMPLIFIED OUTPUT) Typical Drive: See Output Options Table Ambient Temperature: 25°C (unless otherwise specified) 1 PSI PARAMETERS MIN TYP Accuracy Isolation, Body To Any Lead Pressure Cycles -0.3 ≥5 PSI MAX MIN TYP MAX 0.3 5psi: -0.25 0.25 ≥15psi: -0.1 0.1 UNITS NOTES %Span 1 MΩ @25VDC 1 1 1.00E+6 1.00E+6 0-FS Cycles Proof Pressure (High Side) 10X 3X Rated 2 Proof Pressure (Low Side) 10X 3X Rated 3 Burst Pressure (High Side) 12X 4X Rated 2 Burst Pressure (Low Side) 12X 4X Rated 3 Line (common) Pressure 1000 1000 psi Line Pressure Effect on Zero Long Term Stability Total Error Band Compensated Temperature 5psi: 0.0008 TYP 0.004 ±0.25 -1.5 %Span/psi ≥15psi: 0.0005 TYP ±0.1 1.5 %Span/year -1 1 5psi: 0 70 ≥15psi: -20 +85 %Span 0 50 -40 +85 -40 +125 °C 4 Storage Temperature -40 +125 -40 +125 ºC 4 Load Resistance (RL) RL > 100k Ω Sensor Type Differential Pressure Sensor with Unidirectional Calibration Pressure Port Material 316L Stainless Steel Bandwidth DC to 1KHz (typical) Shock 50g, 11 msec Half sine shock per MIL-STD-202F, Method 213B, Condition A Vibration ±20g, MIL-STD-810C, Procedure 514.2, Fig 514.2-2, Curve L Operating Temperature °C 5 Notes 1. Combined linearity, hysteresis and repeatability using Best Fit Straight Line. 2. 1000psi, whichever is less. 3. 150psi, whichever is less. 4. Except cable 105°C Max. 5. Voltage output. SENSOR SOLUTIONS ///D5100 11/2020 Page 2 D5100 Industrial Differential Pressure Transducer CE Compliance IEC 55022 Emissions Class A & B IEC 61000-4-2 Electrostatic Discharge Immunity (6kV contact/8kV air) IEC 61000-4-3 EM Field Immunity (30V/m) IEC 61000-4-4 Electrical Fast Transient Immunity (1kV) IEC 61000-4-5 Surge (1kV) IEC 61000-4-6 Conducted Immunity (10V) IEC 61000-4-9 Pulsed Magnetic Field Immunity (100A/m) Pressure Port Options 2 = 1/4-19 BSPP Male 5 = 1/4-18 NPT Male F = 1/4-19 BSPP Female G = 1/4-18 NPT Female Others available upon request Dim C (inches) [mm] 3.08 [78.3] 3.18 [80.8] 2.18 [55.42] 2.18 [55.42] Electrical Connection Options 1 = 2 ft cable 4 = Packard Connector 5 = Bendix Connector 6 = Hirschmann Connector Others available upon request DIMENSIONS (AMPLIFIED OUTPUT) SENSOR SOLUTIONS ///D5100 11/2020 Page 3 D5100 Industrial Differential Pressure Transducer DIMENSIONS (AMPLIFIED OUTPUT) SENSOR SOLUTIONS ///D5100 11/2020 Page 4 D5100 Industrial Differential Pressure Transducer DIMENSIONS (AMPLIFIED OUTPUT) SENSOR SOLUTIONS ///D5100 11/2020 Page 5 D5100 Industrial Differential Pressure Transducer DIMENSIONS (AMPLIFIED OUTPUT) SENSOR SOLUTIONS ///D5100 11/2020 Page 6 D5100 Industrial Differential Pressure Transducer OUTPUT OPTIONS (AMPLIFIED OUTPUT) Code 3 4 5 Output 0.5 – 4.5V (ratiometric) 1 – 5V 4 – 20mA Supply(V) TYP 5.00 15 15 MIN 4.75 8 9 MAX 5.25 30 30 PERFORMANCE SPECIFICATIONS (mV OUTPUT) Unless Otherwise Specified: Ambient Temperature: 25°C, Supply Voltage: 10VDC PARAMETERS Supply Voltage Zero Pressure Output Span 10 14 2.0 77 80 83 Input Resistance 5.5 Pressure Cycles MAX 0 -0.3 Isolation, Body To Any Lead TYP -2.0 Accuracy Output Resistance ≥5 PSI 1 PSI MIN 0.3 9.0 4.0 MIN MAX 10 14 5psi: -2.0 0 2.0 ≥15psi: -1.0 0 1.0 5psi: 98 100 102 ≥15psi: 99 100 101 5psi: -0.25 0.25 ≥15psi: -0.1 0.1 12.5 30.0 TYP 5.5 9.0 12.5 5psi: 4.0 30.0 ≥15psi: 4.0 25.0 UNITS NOTES VDC mV mV %Span 1 KΩ KΩ MΩ @50VDC 50 50 1.00E+6 1.00E+6 0-FS Cycles Proof Pressure (High Side) 10X 3X Rated 2 Proof Pressure (Low Side) 10X 3X Rated 3 Burst Pressure (High Side) 12X 4X Rated 2 Burst Pressure (Low Side) 12X 4X Rated 3 Line (common) Pressure 1000 1000 psi Line Pressure Effect on Zero 0.004 Long Term Stability ±0.25 5psi: 0.0008 TYP ±0.1 Temperature Coefficient – Span -1.5 1.5 Temperature Coefficient – Offset -2.5 2.5 Output Load Resistance %Span/psi ≥15psi: 0.0005 TYP %Span/year 5psi: -1.5 1.5 ≥15psi: -1.0 1.0 5psi: -1.5 1.5 ≥15psi: -1.0 1.0 5 %Span %Span MΩ 5 Output Noise (10Hz to 1KHz) 1.0 1.0 µV p-p Response Time (10% to 90%) 0.1 0.1 ms Compensated Temperature 0 50 5psi: 0 70 ≥15psi: -20 85 °C Operating Temperature -40 +85 -40 +125 °C Storage Temperature -40 +125 -40 +125 ºC Voltage Breakdown 500V rms@50Hz, Leakage Current
