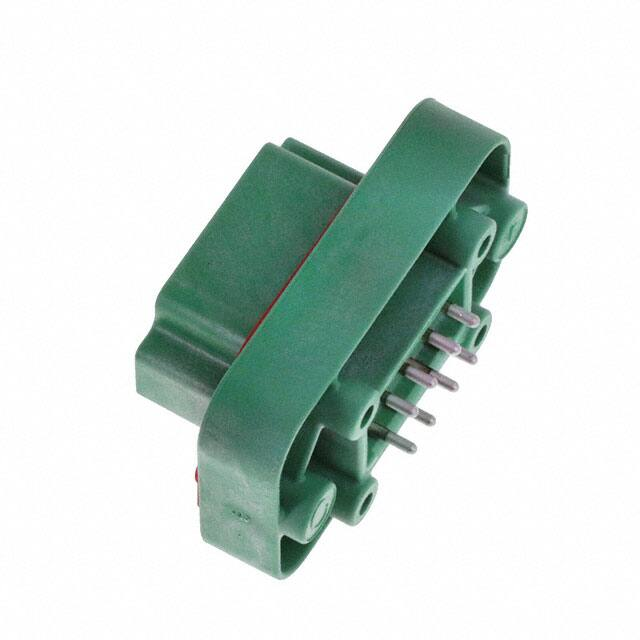

DT15-08PC

4 THIS DRAWING IS UNPUBLISHED. C BY TE CONNECTIVITY COPYRIGHT 1994 2 3 1 2018 RELEASED FOR PUBLICATION REVISIONS ALL RIGHTS RESERVED. P DESCRIPTION LTR E DATE REVISED PER PCN E-19-016091 DWN APVD KP 17OCT2019 DM D D 3D VIEW .130 [3.3 ] BLIND HOLE .840 [21.34 ] 1.185 [30.1 ] .122 [3.1 ] #6-19 SCREW FLANGE SEAL C .175 [4.45 ] 2.170 [55.12 ] 1.780 [45.21 ] .110 [2.79 ] BLIND HOLE #4-20 SCREW .062 [1.57 ] .565 [14.35 ] 1.435 [36.45 ] .359 [9.12 ] C 1.070 [27.18 ] .253 [6.41 ] .215 [5.46 ] B 6 5. RECOMMENDED MOUNTING SCREWS (NOT INCLUDED): CAMCAR PLASTITE 48. 3. THIS RECEPTACLE MATES WITH DT06-08SX-XXXX PLUG (XXXX = ALL MODIFICATIONS.) 1 SHELL MATERIAL: PA46 GF30 (GRAY); FLANGE SEAL MATERIAL: SILICONE. CONTACT PLATING- MATING SIDE :NICKLE; PCB SIDE: TIN DIMENSION TOLERANCE: # .025 [.64]; PANEL CUTOUT # .010 [.25] PIN LOCATIONS: # .005 [.13]; MOUNTING HOLE LOCATIONS: # .005 [.13] PCB LAYOUT: # .005 [.13] NOTES: 1470-19 (3/13) 1.388 [35.26 ] .611 [15.52] MOUNTING SCREW TORQUE VALUES ARE AS FOLLOWS: #6-19 SCREWS: 13 # 2.0 IN-LB [1.47 # .23 N-M]. #4-20 SCREWS: 8 # 2.0 IN-LB [.90 # .23 N-M]. VALUES VALID FOR PLASTITE 48 SCREWS ONLY. 4. 2 A MINIMUM RECOMMENDED HOLE SIZE. CUSTOMER TO DETERMINE FINISHED HOLE SIZE BASED ON SOLDER PROCESS. B TCPN ALIAS PART NUMBER DT15-08PB DT15-08PB DT15-08PA DT15-08PA DT15-08PC THIS DRAWING IS A CONTROLLED DOCUMENT. DWN K.MCKEE DT15-08PD 20OCT2006 16NOV2006 J.APOSTOL APVD 14NOV2006 S.BEARD TOLERANCES UNLESS OTHERWISE SPECIFIED: INCHES [mm] 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES MATERIAL FINISH 2 PRODUCT SPEC 1 1 $ 108-151009 APPLICATION SPEC NAME PCB MOUNT RECEPTACLE 8 PINS STRAIGHT DT SERIES SIZE WEIGHT 26g CUSTOMER DRAWING DT15-08PD TE Connectivity CHK DIMENSIONS: DT15-08PC CAGE CODE A3 4AFU8 A DRAWING NO DT15-08-PX SCALE 1:1 RESTRICTED TO SHEET - 1 OF 2 REV E 4 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 1994 1 2018 RELEASED FOR PUBLICATION REVISIONS ALL RIGHTS RESERVED. BY TE CONNECTIVITY 6 8X D 2 3 4X A KEYWAY P .840 [21.34 ] +.005 .074 -.000 +0.13 1.88 -0.00 AFTER PLATING [ +.005 .135 -.000 +0.13 3.43 -0.00 [ ] ] - .565 [14.35 ] DESCRIPTION LTR DATE SEE SHEET 1 DWN APVD - - - D 1.071 [27.2 ] .359 [9.12 ] .215 [5.46 ] RECOMMENDED PCB LAYOUT B KEYWAY D KEYWAY C KEYWAY C C DATECODE R.250 4X [6.35 ] .936 [23.77 ] B DT15-08PA COLOR GREY DT15-08PB COLOR BLACK DT15-08PD COLOR BROWN DT15-08PC COLOR GREEN THIS DRAWING IS A CONTROLLED DOCUMENT. DWN K.MCKEE INCHES [mm] A PLC PLC PLC PLC PLC ANGLES MATERIAL FINISH 2 1470-19 (3/13) 0 1 2 3 4 1.780 [45.21 ] 20OCT2006 16NOV2006 J.APOSTOL APVD 14NOV2006 S.BEARD PRODUCT SPEC 1 1 $ 108-151009 APPLICATION SPEC TE Connectivity NAME PCB MOUNT RECEPTACLE 8 PINS STRAIGHT DT SERIES SIZE WEIGHT .155 [3.94 ] 1.475 [37.47 ] CHK TOLERANCES UNLESS OTHERWISE SPECIFIED: DIMENSIONS: B 26g CUSTOMER DRAWING CAGE CODE A3 4AFU8 A DRAWING NO DT15-08-PX SCALE 1:1 RESTRICTED TO SHEET - 2 OF 2 REV E
