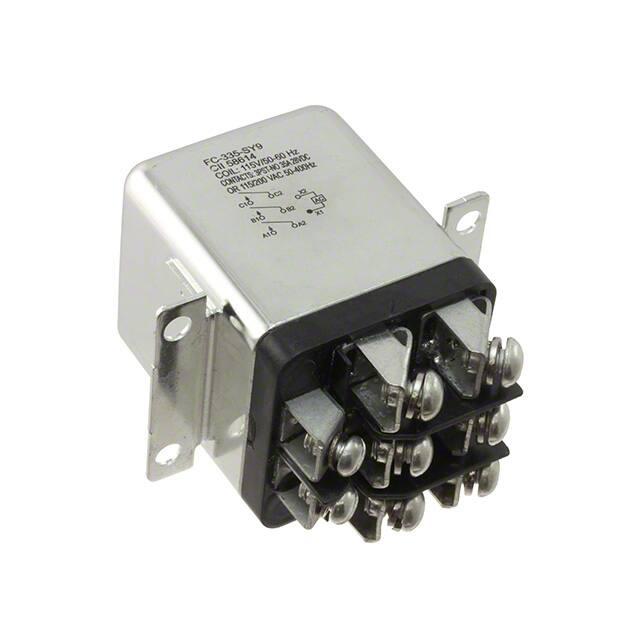

FC-335-SY9

CII FC-335 Series Relays Compact, Hermetically Sealed, Non-Latching Relays AEROSPACE, DEFENSE & MARINE /// CII FC-335 Series Relays CII FC-335 Series Relays Compact, Hermetically Sealed, Non-Latching Relays FC-335 Series relays from TE Connectivity (TE) are hermetically sealed devices designed for harsh inductive, motor, and lamp load applications in the aerospace, defense, and marine markets. OUTSTANDING PERFORMANCE •H  igher capacity rating over standard M83536 relays •M  echanical Life Expectancy: >50,000 cycles Configured as a 3PST/NO (DM), the double make contact design of the CII FC-335 Series relays offer higher capacity rating over most standard M83536 relays. It shares the load across two contact sets, helping to minimize less wear. This helps provide stable performance and helps to extend the relay’s life. The relay’s all welded design creates a reliable alternative to similar solder sealed relays in the market. ADVANTAGES •D  ouble make contacts and laser welded enclosure design helps to provide stable performance over life of relay •E  xcellent in switching harsh inductive loads (motor/lamp) •3  5 Amp / 28 Vdc resistive rating. Similar products on the market are rated at 25 Amps. • -70°C to + 125°C Temperature range •M  ain contacts are suitable for use in 360-800 Hz variable frequency applications • 80,000 ft Altitude Rating RUGGED • Hermetically Sealed/ non-latching • All welded construction • Corrosion protected metal can VERSATILE •2  8 VDC and 115 VAC coils configurations •S  older hooks and terminal block configurations •H  igher current capacity ratings over most standard M83536 relays. Excellent for switching harsh inductive, motor and lamp loads APPLICATIONS • Launch Systems • Power Distribution • Fuel Pumps • Guidance and Navigation Systems • Aircraft Galley/Cabin Equipment • Weapon Systems • Ground Support Equipment COMPACT/LIGHTWEIGHT • 1.5 inch cube • .5 lbs max (227 Grams max) MARKETS • Commercial Aircraft • Military Aircraft • Missiles • Defense Systems TE Components . . . TE Technology . . . TE Know-how . . . AMP | AGASTAT | CII | HARTMAN | KILOVAC | MICRODOT | NANONICS | POLAMCO | Raychem SEACON | Rochester | DEUTSCH Empower Engineers to Solve Problems, Moving the World Forward. AEROSPACE, DEFENSE & MARINE /// CII FC-335 Series Relays PAGE 2 CII FC-335 Series Relays CONFIGURATION The FC-335 Series is available in 2 basic configurations: Screw Terminals Solder Hooks ORDERING INFORMATION Part Number Terminal Mounting Coil FC-335-CW3 Solder Hook Stud 28 Vdc FC-335-CW4 Solder Hook Stud 28 Vdc (Suppressed) FC-335-CW8 Solder Hook Stud 115 Vac, 400 Hz FC-335-CW9 Solder Hook Stud 115 Vac, 50/60 Hz FC-335-SY3 Screw Bracket 28 Vdc FC-335-SY4 Screw Bracket 28 Vdc (Suppressed) FC-335-SY8 Screw Bracket 115 Vac, 400 Hz FC-335-SY9 Screw Bracket 115 Vac, 50/60 Hz * Custom Orders available upon request. Please contact TE. AEROSPACE, DEFENSE & MARINE /// CII FC-335 Series Relays PAGE 3 LET’S CONNECT We make it easy to connect with our experts and are ready to provide all the support you need. Just call your local support number or visit te.com to chat with a Product Information Specialist. Technical Support te.com/support-center North America +1 800 522 6752 Asia Pacific +86 400 820 6015 North America (Toll) +1 717 986 7777 Japan +81 044 844 8180 EMEA/South Africa +800 0440 5100 Australia +61 2 9554 2695 EMEA (Toll) +31 73 624 6999 New Zealand +64 (0) 9 634 4580 India (Toll-Free) +800 440 5100 te.com/fc-335 AMP, AGASTAT, CII, DEUTSCH, HARTMAN, KILOVAC, MICRODOT, NANONICS, POLAMCO, Raychem, SEACON, TE, TE Connectivity and the TE connectivity (logo) are trademarks of TE Connectivity. Other products, logos, and company names mentioned herein may be trademarks of their respective owners. While TE Connectivity (TE) has made every reasonable effort to ensure the accuracy of the information herein, nothing herein constitutes any guarantee that such information is error-free, or any other representation, warranty or guarantee that the information is accurate, correct, reliable or current. The TE entity issuing this publication reserves the right to make any adjustments to the information contained herein at any time without notice. All implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose are expressly disclaimed. The dimensions herein are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications. © 2018 TE Connectivity All Rights Reserved. 1-1773949-9  03/18    AEROSPACE, DEFENSE & MARINE /// CII FC-335 Series Relays
