G-TPCO-031

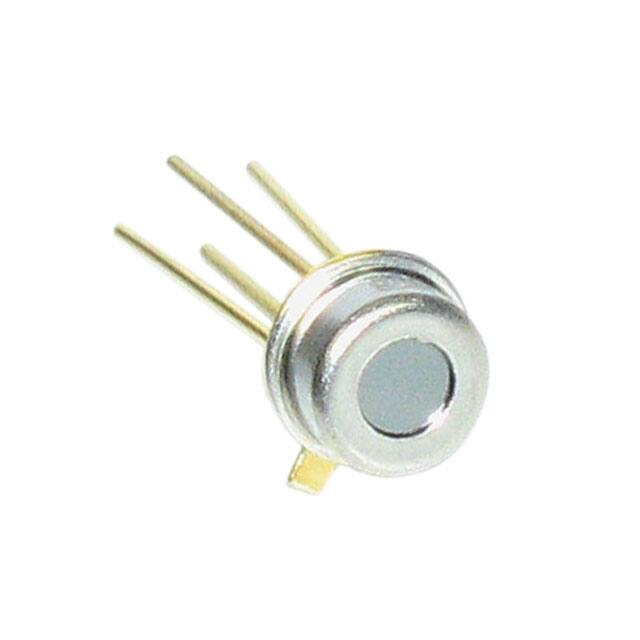

TS318-1B0814 Thermopile Sensor SPECIFICATIONS Thermopile IR-Sensor For Contactless Temperature Measurement Single Element Small Package for Ear Thermometer High Signal Flat Filter Accurate Reference Sensor Thermopiles are mainly used for contactless temperature measurement in many applications. Their function is to transfer the heat radiation emitted from the objects into a voltage output. SENSOR SOLUTIONS ///TS318-1B0814 09/2015 Page 1 TS318-1B0814 Thermopile Sensor FEATURES High Signal Ni-RTD Reference Sensor Small TO-18 Package 8-14µm Band Pass Filter for measurement distances >0.5m APPLICATIONS Pyrometers (general) Industrial Pyrometers ABSOLUTE MAXIMUM RATINGS Parameter Storage Temperature Storage Temperature Symbol TS TS Min -20 -20 Typical +20 +20 Max +85 +100 Unit °C °C Description permanent non permanent PERFORMANCE SPECS Parameter Symbol Operating Ambient Temperature Operating Ambient Temperature Package Absorber Area TAmb TAmb Thermopile Resistance RTP Temperature Coefficient of Thermopile Resistance TCRTP Voltage Response VTP Temperature Coefficient of Voltage Response Noise Equivalent Voltage Rise Time Ambient Temperature Sensor Ambient Temperature Sensor Resistance Temperature Coefficient of Ni-RTD SENSOR SOLUTIONS /// TS318-1B0814 A TCVTP Value -20 to +85 -20 to +100 TO-18 0.8  0.8 Condition °C °C permanent non permanent mm2 70 ± 30 k TAmb = +25°C -0.06 ± 0.04 %/K TAmb = +25°C to +75°C 5.0 ± 1.3 mV TAmb = +25°C, TObj = +100°C, DC, totally filled field of view -0.45 ± 0.08 %/K TAmb = +25°C to +75°C nV/Hz½ ms TAmb = +25°C NEV 63 34 12 ± 5 Ni-RTD RNi-RTD 1000 ± 4 TCNi-RTD Unit 6178 ±150  TAmb = 0°C ppm/K TAmb = 0°C to +100°C 10/2015 Page 2 TS318-1B0814 Thermopile Sensor TYPICAL PERFORMANCE CURVES 6 Ambient Temperature = 25°C Thermopile Signal [mV] 5 4 3 2 1 0 0 10 20 30 40 50 60 70 80 90 100 -1 -2 Object Temperature [°C] Figure 1: Thermopile signal versus object temperature at 25°C ambient temperature OPTICAL CHARACTERISTICS Parameter Field of View Symbol FOV Value 110 Unit deg Description at 50% of maximum signal 100% 90% 80% Amplitude 70% 60% 50% 40% 30% 20% 10% 0% -80 -70 -60 -50 -40 -30 -20 -10 0 10 Angle [deg] 20 30 40 50 60 70 80 Figure 2: Field of View Curve SENSOR SOLUTIONS /// TS318-1B0814 10/2015 Page 3 TS318-1B0814 Thermopile Sensor FILTER CHARACTERISTICS Parameter Transmission Range Transmission Symbol BBP T9 ... 13µm Value 8-14 ≥ 75.0 Unit µm % Description Broad Band Pass at 9 ... 13µm 100% 90% 80% Transmission 70% 60% 50% 40% 30% 20% 10% 0% 4 6 8 10 12 14 16 18 Wavelength [µm] Figure 3: Filter transmission curve ELECTRICAL CONNECTIONS Pin Symbol 1 TP + 2 Ni-RTD 3 TP - 4 GND Figure 4: Electrical connections - bottom view of thermopile SENSOR SOLUTIONS /// TS318-1B0814 10/2015 Page 4 TS318-1B0814 Thermopile Sensor MECHANICAL DIMENSIONS Figure 5: Mechanical dimensions of thermopile ORDERING INFORMATION Part Descripton TS318-1B0814 Part No. G-TPCO-031 NORTH AMERICA EUROPE ASIA Measurement Specialties, Inc., a TE Connectivity Company 1000 Lucas Way Hampton, VA 23666 United States Phone: +1-800-745-8008 Fax: +1-757-766-4297 Email: sales@meas-spec.com Web: www.meas-spec.com Measurement Specialties (Europe), Ltd., a TE Connectivity Company Deutschland GmbH Hauert 13 D-44227 Dortmund Germany Phone: +49-(0)231-9740-0 Fax: +49-(0)231-9740-20 Email: info.de@meas-spec.com Web: www.meas-spec.com Measurement Specialties (China), Ltd., a TE Connectivity Company No. 26 Langshan Road Shenzhen High-Tech Park (North) Nanshan District, Shenzhen 518057 China Tel: +86 755 3330 5088 Fax: +86 755 3330 5099 Email: info.cn@meas-spec.com Web: www.meas-spec.com TE.com/sensorsolutions Measurement Specialties, Inc., a TE Connectivity company. Measurement Specialties, TE Connectivity, TE Connectivity (logo) and EVERY CONNECTION COUNTS are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application. © 2015 TE Connectivity Ltd. family of companies All Rights Reserved. SENSOR SOLUTIONS /// TS318-1B0814 10/2015 Page 5
