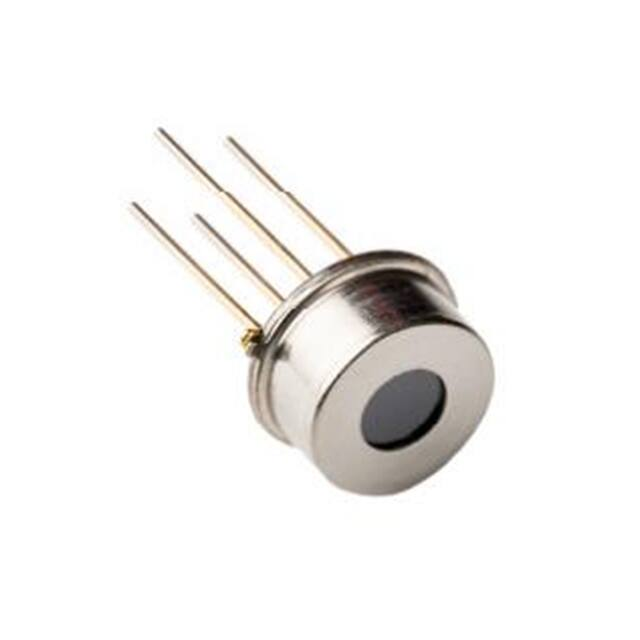

TS305-11C55 Thermopile Sensor SPECIFICATIONS       Thermopile IR-Sensor For Contactless Temperature Measurement Single Element High Signal Flat Filter Accurate Reference Sensor Thermopiles are mainly used for contactless temperature measurement in many applications. Their function is to transfer the heat radiation emitted from the objects into a voltage output. SENSOR SOLUTIONS /// TS305-11C55 09/2015 Page 1 TS305-11C55 Thermopile Sensor FEATURES High Signal Accurate NTC Reference Sensor 5.5 µm Long Wave Pass Filter APPLICATIONS Industrial Pyrometers Climate Control Medical ABSOLUTE MAXIMUM RATINGS Parameter Storage Temperature Storage Temperature Symbol TS TS Min -20 -20 Typical +20 +20 Max +85 +100 Unit °C °C Description permanent non permanent PERFORMANCE SPECS Parameter Symbol Operating Ambient Temperature Operating Ambient Temperature Package Absorber Area TAmb TAmb Thermopile Resistance RTP Temperature Coefficient of Thermopile Resistance TCRTP Voltage Response VTP Temperature Coefficient of Voltage Response Noise Equivalent Voltage Rise Time Ambient Temperature Sensor Ambient Temperature Sensor Resistance Beta Value of NTC SENSOR SOLUTIONS /// TS305-11C55 A TCVTP Value -20 to +85 -20 to +100 TO-5 0.8  0.8 Unit Condition °C °C permanent non permanent mm2 70 ± 30 k TAmb = +25°C -0.06 ± 0.04 %/K TAmb = +25°C to +75°C 7.0 ± 2.1 mV TAmb = +25°C, TObj = +100°C, DC, totally filled field of view -0.45 ± 0.08 %/K TAmb = +25°C to +75°C NEV 63 45 12 ± 5 NTC nV/Hz½ ms TAmb = +25°C RNTC 100 ± 5 k TAmb = +25°C K TAmb = 0°C to +50°C -Value 3955 ±0.3% 10/2015 Page 2 TS305-11C55 Thermopile Sensor TYPICAL PERFORMANCE CURVES 8 Ambient Temperature = 25°C 7 Thermopile Signal [mV] 6 5 4 3 2 1 0 -1 0 10 20 30 40 50 60 70 80 90 100 -2 Object Temperature [°C] Figure 1: Thermopile signal versus object temperature at 25°C ambient temperature Optical Characteristics Parameter Field of View Symbol FOV Value 88 Unit deg Description at 50% of maximum signal 100% 90% 80% Viewing Angle [deg] 70% 60% 50% 40% 30% 20% 10% 0% -80 -60 -40 -20 0 20 40 60 80 Amplitude Figure 2: Field of View Curve SENSOR SOLUTIONS /// TS305-11C55 10/2015 Page 3 TS305-11C55 Thermopile Sensor FILTER CHARACTERISTICS Parameter Transmission Range Symbol LWP Value ≥ 5.5 Unit µm Description Long Wave Pass 100% 90% 80% Transmission 70% 60% 50% 40% 30% 20% 10% 0% 0 5 10 15 20 25 Wavelength [µm] Figure 3: Filter transmission curve ELECTRICAL CONNECTIONS Pin Symbol 1 TP + 2 NTC 3 TP - 4 GND Figure 4: Electrical connections - bottom view of thermopile SENSOR SOLUTIONS /// TS305-11C55 10/2015 Page 4 TS305-11C55 Thermopile Sensor MECHANICAL DIMENSIONS Figure 5: Mechanical dimensions of thermopile ORDERING INFORMATION Part Descripton TS305-11C55 Part No. G-TPCO-033 NORTH AMERICA EUROPE ASIA Measurement Specialties, Inc., a TE Connectivity Company 910 Turnpike Road Shrewsbury, MA 01545 United States Phone: +1-508-842-0516 Fax: +1-508-842-0342 Email: temperature.sales.amer@measspec.com Web: www.meas-spec.com Measurement Specialties (Europe), Ltd., a TE Connectivity Company Deutschland GmbH Hauert 13 D-44227 Dortmund Germany Phone: +49-(0)231-9740-0 Fax: +49-(0)231-9740-20 Email: info.de@meas-spec.com Web: www.meas-spec.com Measurement Specialties (China), Ltd., a TE Connectivity Company No. 26 Langshan Road Shenzhen High-Tech Park (North) Nanshan District, Shenzhen 518057 China Tel: +86 755 3330 5088 Fax: +86 755 3330 5099 Email: temperature.sales.asia@meas-spec.com Web: www.meas-spec.com TE.com/sensorsolutions Measurement Specialties, Inc., a TE Connectivity company. Measurement Specialties, TE Connectivity, TE Connectivity (logo) and EVERY CONNECTION COUNTS are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application. © 2015 TE Connectivity Ltd. family of companies All Rights Reserved. SENSOR SOLUTIONS /// TS305-11C55 10/2015 Page 5
