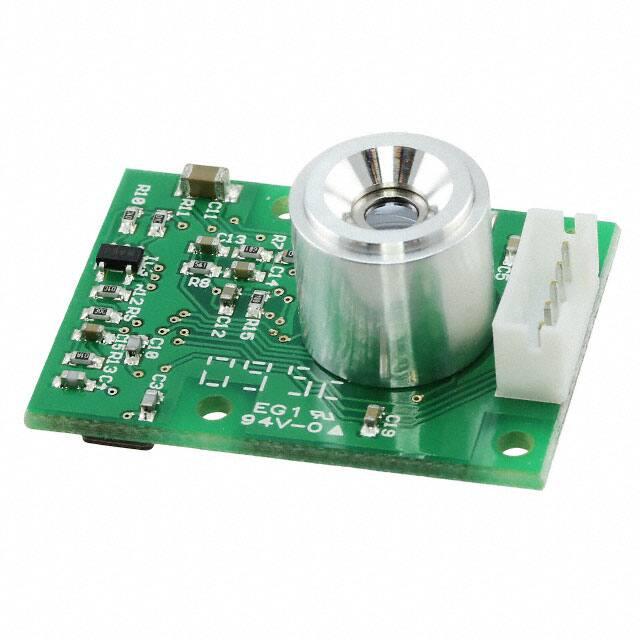

TSEV0108L39 Thermopile Sensor Module SPECIFICATIONS     Contact less Temperature Measurement 8 Measurement Pixels Wide Supply Voltage Range Digital Interface Bus (SPI) TSEV0108L39 is a contact-less temperature measuring system for OEM use based on the detection of infrared radiation TSEV0108L39 is equipped with an infrared sensor (Thermopile) in front. In this version a Thermopile Array, including 8 pixels, is used. It has to be pointed at the target object The basic working principle is:     SENSOR SOLUTIONS ///TSEV0108L39 09/2015 Detection of infrared radiation with a Thermopile sensor Determination of sensor temperature using a thermistor Calculation of ambient and object temperature using a processing unit Providing the temperatures at digital output bus (SPI like Interface) Page 1 TSEV0108L39 Thermopile Sensor Module FEATURES -20°C – +120°C Measurement Range 4V – 16V Supply Voltage Range Up to 2°C Accuracy APPLICATIONS Contact less Temperature Measurement Microwave Oven Climate Control ABSOLUTE MAXIMUM RATINGS Absolute maximum ratings are limiting values of permitted operation and should never be exceeded under the worst possible conditions either initially or consequently. If exceeded by even the smallest amount, instantaneous catastrophic failure can occur. And even if the device continues to operate satisfactorily, its life may be considerably shortened. Parameter Supply Voltage Operating Temperature Storage Temperature Humidity Humidity Symbol Vcc Top Tstor HumL HumH Conditions Measured versus GND Min -0.3 -10 -30 Typ Max 16 +85 +85 85 50 Unit V °C °C % % Typ 40 3.5 3.9 Max Unit ° ° Typ 5 Max 6 Unit V 10 15 mA 85 50 % % Max Unit -30°C - +50°C +50°C - +85°C SENSOR CHARACTERISTICS If not otherwise noted, 25°C ambient temperature, 5V supply voltage were applied. Parameter Total Field of View Individual Field of View Focal length Symbol T_FOV P_FOV f Conditions Over all 8 Pixels Field of View of one Pixel Min Parameter Supply voltage Symbol Vcc Min 4 Supply Current I Humidity Humidity HumL HumH Conditions Measured versus GND Full ambient temp. range, no output load -30°C - +50°C +50°C - +85°C Parameter Symbol Conditions Min Clock Rate (SPI) FSPI 100 kHz Fout 1 Hz mm OPERATING CONDITIONS INTERFACE CHARACTERISTICS Typ Data Output Rate (New Measurement Data of all 8 Pixels available) SENSOR SOLUTIONS /// TSEV0108L39 09/2015 Page 2 TSEV0108L39 Thermopile Sensor Module OPERATIONAL CHARACTERISTICS 1 Parameter Object Temperature Range Ambient Temperature Range Resolution Symbol Tobj Tamb Res Standard Start-Up Time tStart Accuracy tolerance when Tambient = 25°C ±5°C 1) ΔT Conditions Time from turning on supply to first measurement -5°C < Tobject < +5°C Outside above range Min -20 0 Typ Max +120 +85 0.1 Unit °C °C °C 3 5 s ±21) ±41) °C °C Valid for a distance of 100mm and black body size of 150mm x 150mm MECHANICAL DIMENSIONS Only use hatched areas for mechanical assembly (screws, nuts, etc). SENSOR SOLUTIONS /// TSEV0108L39 09/2015 Page 3 TSEV0108L39 Thermopile Sensor Module TERMINALS Connector: JST B5B-PH-K-S(LF)(SN) Pin 1 2 3 4 5 Name GND MISO MOSI CLK VDD Desription Supply Ground Data Out Data In Clock Supply Voltage 1 Type Supply Output Input Input Supply 5 BLOCK DIAGRAM Thermopile 8 T hermopile Sensors Clk MOSI MISO SPI like Interface Supply MCU SENSOR SOLUTIONS /// TSEV0108L39 09/2015 Page 4 TSEV0108L39 Thermopile Sensor Module FIELD OF VIEW ANGLE OF PIXELS 1 19,03 2 13,84 3 8,41 4 2,82 5 -2,82 6 -8,41 7 -13,84 8 -19,03 Min Typ Max Unit 200 kHz 0.8 V FUNCTION SPI INTERFACE PHYSICAL INTERFACE PARAMETERS Parameter Symbol Baudrate FSPI Conditions 10 Data Bits 8 Edge Rising Chip Select No Input Voltage Low Input Voltage High 2.8 Output Current High @ 2.8V 1 mA Output Current Low @ 0.8V 1 mA SENSOR SOLUTIONS /// TSEV0108L39 09/2015 3.6 V Page 5 TSEV0108L39 Thermopile Sensor Module SPI CONNECTION CLK CLK MOSI MOSI Master TSEV0108L39 MISO MISO GND GND SPI SIGNAL TIMING DESCRIPTION CLK MOSI 7 6 5 4 3 2 1 0 MISO 7 6 5 4 3 2 1 0 INTERNAL RESET The internal SPI status is reset to idle state if one of the following conditions occur:  100ms without receiving data  Reset due to cycling of supply voltage FILTER CIRCUITRY Capacitors are added to the following lines in to reduce noise/spikes in order to provide stable SPI transmission even in EMC affected environment:  CLK  MOSI A 10nF capacitor is added parallel to ground potential. SENSOR SOLUTIONS /// TSEV0108L39 09/2015 Page 6 TSEV0108L39 Thermopile Sensor Module SPI SIGNAL SEQUENCE Reading Temperature of Pixel 1 Nr. MOSI MISO 1 0xA1 --- 2 0XFF 0xXX 3 0XFF 0xXX Direction MS Description Sending Command (See Command Reference) Wait at least 150us to arrange temperature data MS Receiving High Byte (Send 0xFF while receiving) Wait at least 150us to arrange temperature data MS Receiving Low Byte (Send 0xFF while receiving) EXAMPLE FOR 5V SPI INTERFACE LINE The sensor cannot be connected directly to a SPI interface with 5V levels. Therefore the following circuitry is suggested. The Baud rate should be limited to 20kHz. AMBIENT AND OBJECT MEASUREMENT Please refer following table for SPI commands to read object temperature and ambient temperature. Both values are transmitted in tenth of degrees. All temperature read outs are to be interpreted as twos complement. Com Description Reply Bytes 0xA0 0xA1 Sensor Temperature Sensor temperature in tenth of degrees Celsius 2 Temperature Pixel 1 Temp. at pixel position 1 in tenth of degree Celsius 2 0xA2 Temperature Pixel 2 Temp. at pixel position 2 in tenth of degree Celsius 2 0xA3 Temperature Pixel 3 Temp. at pixel position 3 in tenth of degree Celsius 2 0xA4 Temperature Pixel 4 Temp. at pixel position 4 in tenth of degree Celsius 2 0xA5 Temperature Pixel 5 Temp. at pixel position 5 in tenth of degree Celsius 2 0xA6 Temperature Pixel 6 Temp. at pixel position 6 in tenth of degree Celsius 2 0xA7 Temperature Pixel 7 Temp. at pixel position 7 in tenth of degree Celsius 2 0xA8 Temperature Pixel 8 Temp. at pixel position 8 in tenth of degree Celsius 2 SENSOR SOLUTIONS /// TSEV0108L39 09/2015 Page 7 TSEV0108L39 Thermopile Sensor Module EXAMPLE OF TEMPERATURE CALCULATION For reading object temperature of pixel 3 send: 0xA3 Return values i.e.: Byte(0) = 0x02 Byte(1) = 0xB0 Temperature Tobj = (256 * Byte(0) + Byte(1)) / 10 = (256 * 2 + 11) / 10 = 52,3°C OUT OF TEMPERATURE RANGE INDICATION Com Description Reply Bytes 0xA0 Sensor Temperature < 0°C 0x8001 2 0xA0 Sensor Temperature > 85°C 0x8002 2 0xA1 – 0xA8 Pixel Temperature < -20°C 0x8003 2 0xA1 – 0xA8 Pixel Temperature > +120°C 0x8004 2 ORDER INFORMATION Please order this product using following: Part Number G-TPMO-014 Part Description TSEV0108L39 EMC Due to the use of these modules for OEM application no CE declaration is done. Especially line coupled disturbances like surge, burst, HF etc. cannot be removed by the module due to the small board area and low price feature. There is no protection circuit against reverse polarity or over voltage implemented. The module will be designed using capacitors for blocking and ground plane areas in order to prevent wireless coupled disturbances as good as possible SENSOR SOLUTIONS /// TSEV0108L39 09/2015 Page 8 TSEV0108L39 Thermopile Sensor Module DEFINITIONS AND DISCLAIMERS   Application information – Applications that are described herein for any of these products are for illustrative purpose only. MEAS Deutschland GmbH makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Life support applications – These products are not designed for use in life support appliances, devices, or systems where malfunctions of these products can reasonably be expected to result in personal injury. MEAS Deutschland GmbH customers using or selling this product for use in such applications do so at their own risk and agree to fully indemnify MEAS Deutschland GmbH for any damages resulting from such improper use or sale NORTH AMERICA EUROPE ASIA Measurement Specialties, Inc., a TE Connectivity Company 910 Turnpike Road Shrewsbury, MA 01545 Tel: 1-508-842-0516 Fax: 1-508-842-0342 Sales email: temperature.sales.amer@meas-spec.com Measurement Specialties (Europe), Ltd., a TE Connectivity Company Deutschland GmbH Hauert 13 44277 Dortmund Tel: +49 (0) 231/9740-0 Fax: +49 (0) 231/9740-20 Sales email: info.de@meas-spec.com Measurement Specialties (China), Ltd., a TE Connectivity Company No. 26 Langshan Road Shenzhen High-Tech Park (North) Nanshan District, Shenzhen 518057 China Tel: +86 755 3330 5088 Fax: +86 755 3330 5099 Sales: pfg.cs.asia@meas-spec.com TE.com/sensorsolutions Measurement Specialties, Inc., a TE Connectivity company. Measurement Specialties, TE Connectivity, TE Connectivity (logo) and EVERY CONNECTION COUNTS are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or 09/2015 SENSOR Page misuse of theSOLUTIONS product. Users of /// TE TSEV0108L39 Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application. © 2015 TE Connectivity Ltd. family of companies All Rights Reserved. 9
