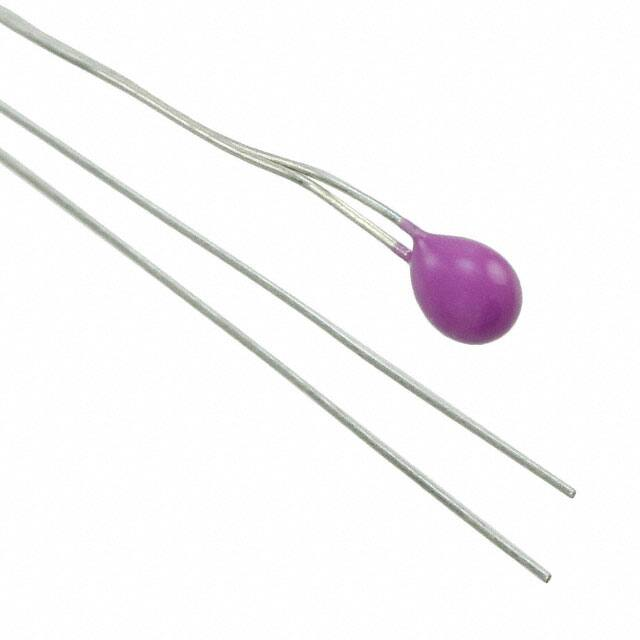

GA100K6A1A

SERIES I THERMISTORS Thermally Conductive Epoxy Coating Ø 2.4 mm Maximum Diameter 32 AWG Alloy 180 Leads Four Temperature Tolerance Classifications Available RoHS Compliant BetaCURVE series I thermistors are small epoxy coated devices with solid tin-plated lead wires. The series I offers a choice of precision temperature tolerance classifications for a wide variety of customer applications, such as temperature measurements, temperature indication, temperature control, and thermal compensation. FEATURES  Interchangeability  Proven stability and reliability  Alloy lead wires for reduced thermal conductivity ("stem effect")     Rapid time response Thermally conductive epoxy coating Temperature range -40ºC to +125ºC Custom probe assemblies available APPLICATIONS    TE CONNECTIVITY SENSORS /// SERIES I THERMISTORS Temperature sensing, control and compensation Tight tolerance instrumentation General instrumentation applications 02/2018 Page 1 SERIES I THERMISTORS MECHANICAL DETAILS DIMENSIONS A B 76 ±2 mm 2.4 mm max. Note 1: 32 AWG Solid Alloy 180 Leads Note 2: Stycast 2850ft Epoxy TE CONNECTIVITY SENSORS /// SERIES I THERMISTORS 02/2018 Page 2 SERIES I THERMISTORS PRODUCT DETAILS Part Number Color Coding Resistance [Ω] @ +25ºC GA2.2K3A1A GA2.2K3A1B GA2.2K3A1C Tolerance from 0 to +70ºC Brown 2,252 ±0.2ºC ±0.5ºC ±1.0ºC GA3K3A1A ±0.1ºC GA3K3A1C Red 3,000 ±0.2ºC ±0.5ºC GA3K3A1D ±1.0ºC GA5K3A1A ±0.1ºC GA5K3A1B GA5K3A1C Orange 5,000 ±0.2ºC ±0.5ºC GA5K3A1D ±1.0ºC GA10K3A1A ±0.1ºC GA10K3A1B GA10K3A1C Yellow 10,000 ±0.2ºC ±0.5ºC GA10K3A1D ±1.0ºC GA10K4A1A ±0.1ºC GA10K4A1B GA10K4A1C Black 10,000 ±0.2ºC ±0.5ºC GA10K4A1D ±1.0ºC GA30K5A1A ±0.1ºC GA30K5A1B GA30K5A1C White 30,000 ±0.2ºC ±0.5ºC GA30K5A1D ±1.0ºC GA30K6A1A ±0.1ºC GA30K6A1B GA30K6A1C Green 30,000 ±0.2ºC ±0.5ºC GA30K6A1D ±1.0ºC GA50K6A1A ±0.1ºC GA50K6A1B GA50K6A1C Blue 50,000 ±0.2ºC ±0.5ºC GA50K6A1D ±1.0ºC GA100K6A1A ±0.1ºC GA100K6A1B GA100K6A1C GA100K6A1D Beta Value 25/85 Beta Tolerance Dissipation Constant in Still Air @+25ºC Time Response (Stirred Oil) -4.39 %/ ºC 3976 ±0.5% 0.75 mW/ºC
