MINI BETACURVE (MBD)
Thermistor Probe
SPECIFICATIONS
NTC Temperature Sensor
Fast time response
Small tip diameter
Various lead lengths available
NTC Thermistor soldered to 30 AWG Solid Silver Plated Copper
Wire with PVDF Insulation. Unit is potted in a polyimide tube with
thermally conductive black epoxy
SENSOR SOLUTIONS ///MINI BETACURVE (MBD)
09/2015
Page 1
MINI BETACURVE (MBD)
Thermistor Probe
FEATURES
Rapid Time Constant
(400 milliseconds in liquids).
Standards supplied with ± 0.2°C tolerance
(0°C to +70°C).
Custom tolerances available on request
Temperature range -40ºC to +125ºC
APPLICATIONS
Reduced size allows localized
temperature sensing
Small Medical probes
Micro-flow sensing
PERFORMANCE SPECS
Parameters
Nominal Resistance at +25°C
Resistance tolerance from 0°C to +70°C
Alpha Value at +25°C
Beta Value 25/85
Tolerance on Beta Value 25/85
Time response in Liquids
Dissipation Constant in still air
Units
Ohms
°C
%/°C
K
%
milliseconds
mW/°C
Value
100000
± 0.2
4.68
4261
± 0.5
400
0.5
MECHANICAL DETAILS

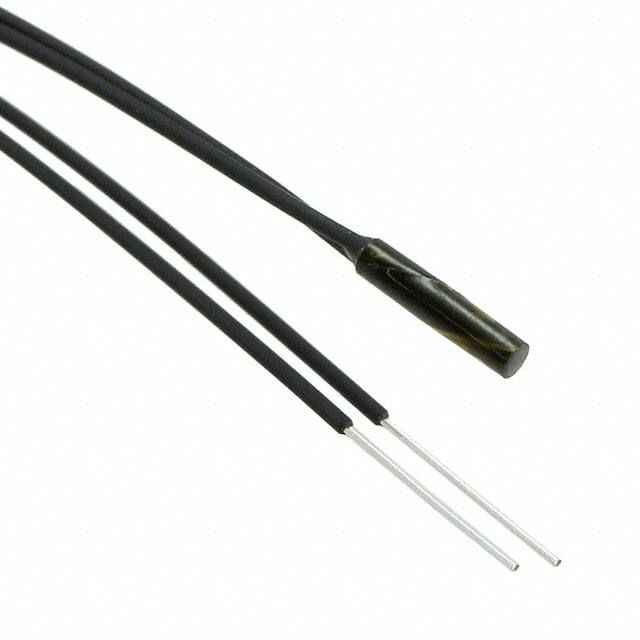

Figure 1: Mini BetaCURVE Thermistor Probe (MBD)
SENSOR SOLUTIONS ///MINI BETACURVE (MBD)
09/2015
Page 2
MINI BETACURVE (MBD)
Thermistor Probe
RESISTANCE V TEMPERATURE TABLE
Temp. oC
-40
-39
-38
-37
-36
-35
-34
-33
-32
-31
-30
-29
-28
-27
-26
-25
-24
-23
-22
-21
-20
-19
-18
-17
-16
-15
-14
-13
-12
-11
-10
-9
-8
-7
-6
-5
-4
-3
-2
-1
0
Ohms
4,071,370
3,799,004
3,546,481
3,312,243
3,094,866
2,893,041
2,705,570
2,531,351
2,369,375
2,218,714
2,078,515
1,947,995
1,826,432
1,713,162
1,607,574
1,509,106
1,417,239
1,331,495
1,251,431
1,176,643
1,106,752
1,041,413
980,305
923,131
869,616
819,508
772,570
728,587
687,355
648,689
612,416
578,374
546,415
516,401
488,202
461,700
436,784
413,350
391,304
370,555
351,020
Temp. oC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
Ohms
332,623
315,290
298,956
283,557
269,036
255,337
242,410
230,207
218,685
207,801
197,518
187,800
178,611
169,921
161,701
153,922
146,559
139,587
132,983
126,727
120,799
115,179
109,850
104,795
100,000
95,449
91,129
87,027
83,131
79,430
75,913
72,569
69,390
66,367
63,491
60,754
58,150
55,670
53,309
51,060
48,917
SENSOR SOLUTIONS ///MINI BETACURVE (MBD)
Temp. oC
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
09/2015
Ohms
46,875
44,929
43,073
41,303
39,615
38,004
36,467
35,000
33,599
32,262
30,984
29,763
28,596
27,481
26,415
25,395
24,420
23,487
22,594
21,740
20,922
20,138
19,388
18,670
17,981
17,322
16,689
16,083
15,502
14,945
14,410
13,897
13,405
12,932
12,478
12,043
11,625
11,223
10,837
10,466
10,109
Temp. oC
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
Ohms
9,767
9,437
9,121
8,816
8,523
8,241
7,970
7,708
7,457
7,215
6,982
6,758
6,541
6,333
6,132
5,939
5,753
5,573
5,400
5,232
5,071
4,916
4,766
4,621
4,481
4,346
4,216
4,090
3,969
3,852
3,738
3,629
3,523
3,421
3,322
3,227
3,134
3,045
2,959
2,875
2,794
2,716
2,640
Page 3
MINI BETACURVE (MBD)
Thermistor Probe
ORDERING INFORMATION
Part Number
100K6MBD1
Description
Mini BetaCurve Thermistor Probe (MBD)
Ω @25ºC
100000
MOQ
1000 *
* For quantities less than Minimum Order Quantity – contact distribution
