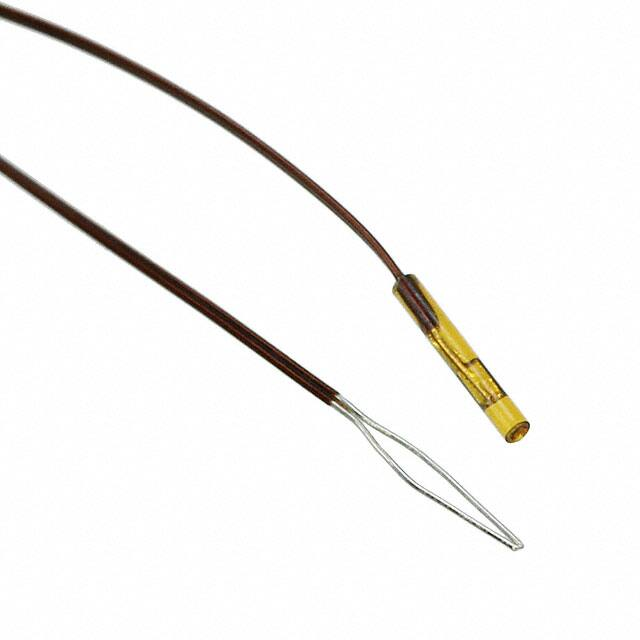

MICRO-BETACHIP (MCD)
Thermistor Probe
SPECIFICATIONS
NTC Temperature Sensor
Fast time response
Small tip diameter (Ø0.5mm Max.)
Various lead lengths available
NTC thermistor soldered to 38 AWG Solid Nickel Bifilar with
Polyester Type Insulation. Unit potted in polyimide tube using
Epoxy Resin
SENSOR SOLUTIONS ///MICRO-BETACHIP (MCD)
09/2015
Page 1
MICRO-BETACHIP (MCD)
Thermistor Probe
FEATURES
Rapid Time Constant
(200 milliseconds in liquids).
Custom tolerances available on request
0.3 mW/°C typ. Dissipation Constant
in air at 25°C.
Smaller than mini-BetaCURVE device.
Temperature range -40ºC to +125ºC
APPLICATIONS
Low volume flow sensors (liquids or gases)
Laboratory animal research.
Peltiere (thermal cooler) temperature
tracking sensors.
Temperature control for bath showers.
DNA research sensors.
Medical catheters.
PERFORMANCE SPECS
Parameters
Resistance @ +25°C
Resistance tolerance @ 25°C
Alpha Value @ 25°C
Beta Value 25/85
Tolerance on Beta Value 25/85
Time response in Liquids
Dissipation Constant in still air
Units
Ohms
°C
%/°C
K
%
milliseconds
mW/°C
Value
100,000
± 0.2
- 4.68
4261
± 0.5
200
0.3
MECHANICAL DETAILS
Figure 1: Micro-Beta CHIP Thermistor Probe (MCD)
SENSOR SOLUTIONS ///MICRO-BETA CHIP (MCD)
09/2015
Page 2
MICRO-BETACHIP (MCD)
Thermistor Probe
RESISTANCE V TEMPERATURE TABLE
Temp. oC
-40
-39
-38
-37
-36
-35
-34
-33
-32
-31
-30
-29
-28
-27
-26
-25
-24
-23
-22
-21
-20
-19
-18
-17
-16
-15
-14
-13
-12
-11
-10
-9
-8
-7
-6
-5
-4
-3
-2
-1
0
Ohms
4,071,370.1
3,799,004.1
3,546,480.7
3,312,243.5
3,094,866.1
2,893,041.2
2,705,569.5
2,531,350.9
2,369,375.1
2,218,714.2
2,078,515.5
1,947,995.0
1,826,431.7
1,713,161.8
1,607,574.3
1,509,106.3
1,417,239.1
1,331,494.6
1,251,431.4
1,176,642.6
1,106,752.3
1,041,413.3
980,305.0
923,130.6
869,616.1
819,507.6
772,570.3
728,586.8
687,355.4
648,689.5
612,415.9
578,374.1
546,415.1
516,400.5
488,202.0
461,700.0
436,783.9
413,350.5
391,303.8
370,554.6
351,020.0
Temp. oC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
SENSOR SOLUTIONS ///MICRO-BETA CHIP (MCD)
Ohms
332,622.5
315,290.2
298,956.0
283,557.2
269,035.5
255,336.6
242,409.5
230,207.0
218,684.8
207,801.5
197,518.4
187,799.5
178,611.0
169,921.3
161,700.8
153,921.8
146,558.5
139,586.6
132,983.3
126,727.3
120,798.7
115,178.7
109,849.8
104,795.4
100,000.0
95,449.2
91,129.2
87,027.3
83,131.3
79,430.0
75,912.6
72,569.2
69,390.3
66,367.1
63,491.1
60,754.5
58,149.8
55,670.2
53,308.9
51,059.8
48,917.1
Temp. oC
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
09/2015
Ohms
46,875.1
44,928.7
43,072.9
41,303.2
39,615.1
38,004.5
36,467.4
35,000.2
33,599.3
32,261.5
30,983.7
29,762.8
28,596.0
27,480.8
26,414.6
25,395.0
24,419.7
23,486.7
22,594.0
21,739.5
20,921.5
20,138.3
19,388.2
18,669.7
17,981.4
17,321.7
16,689.4
16,083.2
15,502.0
14,944.6
14,409.9
13,896.8
13,404.5
12,932.0
12,478.4
12,042.8
11,624.5
11,222.8
10,836.8
10,465.9
10,109.4
9,766.8
Temp. oC
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
Ohms
9,437.3
9,120.6
8,815.9
8,522.9
8,240.9
7,969.6
7,708.5
7,457.1
7,215.1
6,982.0
6,757.6
6,541.4
6,333.1
6,132.4
5,939.0
5,752.6
5,572.8
5,399.5
5,232.4
5,071.2
4,915.7
4,765.7
4,620.9
4,481.2
4,346.3
4,216.1
4,090.4
3,968.9
3,851.7
3,738.4
3,628.9
3,523.2
3,420.9
3,322.1
3,226.6
3,134.3
3,045.0
2,958.6
2,875.1
2,794.3
2,716.1
2,640.5
Page 3
MICRO-BETACHIP (MCD)
Thermistor Probe
ORDERING INFORMATION
Part Number
100K6MCD1
Description
Micro-BetaCHIP Thermistor Probe (MCD)
Ω @25ºC
100,000
MOQ
1000 *
* For quantities less than Minimum Order Quantity – contact distribution
