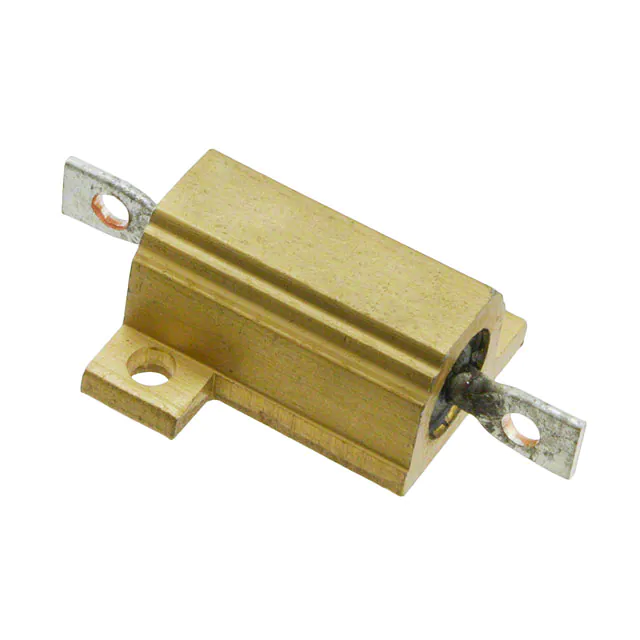

HSA5120RJ

4 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 2005 2 3 RELEASED FOR PUBLICATION 1 NOV. 2005 REVISIONS ALL RIGHTS RESERVED. BY - P B2 D LASER MARKING: TE LOGO PN VALUE TOLERANCE & DATE CODE 4 n2. x 2 B3 ES HOL DESCRIPTION LTR V DATE DWN APVD Released as per ECR-09-006012 16-MAR-09 SP JC ECR-13-007945 14MAY2013 KR TN ECR-16-003725 14MAR2016 KR TN D 0.15 1 FOR FURTHER INFORMATION SEE DATA SHEET FOR HS SERIES-ALUMINIUM HOUSED RESISTORS DISSIPATION AT 25 $ C : 10 WATTS MOUNTED ON STD HEATSINK BS OHMIC RANGE : R051 TO 7KS STABILITY : R < =1% PER 1000Hrs ISOLATION VOLTAGE : 1400V DC/AC pk MAX WORKING VOLTAGE : 150V DC/AC rms TEMP COEFFICIENT : > 1RO 50ppm > 100R 25ppm CLIMATIC CATEGORY : 55/200/56 11.30 0.15 n 2/2.2 9.0 MAX 2.5 MAX TAG HOLE RoHS Compliant B 17 MAX 4.00 0.25 B C 0.3 C 3 TECHNICAL SPECIFICATION 4.3 1.9 MIN 12.40 2 FOR A SPECIFIC PN FOR A RESISTANCE VALUE AND TOLERANCE, PLEASE REFER TO DMF 17 MAX 31.0 MAX SCALE 2:1 THIS DRAWING IS A CONTROLLED DOCUMENT. DWN D KENNEDY 07.NOV.05 07.NOV.05 J CATCHPOLE APVD 07.NOV.05 J CATCHPOLE TE Connectivity CHK TOLERANCES UNLESS OTHERWISE SPECIFIED: DIMENSIONS: mm A MATERIAL 1470-19 (3/13) material_2 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES FINISH 0.5 0.2 0.1 - PRODUCT SPEC - APPLICATION SPEC 5 $ - WEIGHT finish_spec_2 CUSTOMER DRAWING NAME HSA 5 METAL CLAD RESISTOR - SIZE A3 A CAGE CODE 00779 DRAWING NO RESTRICTED TO 1625963 SCALE 4:1 SHEET - 1 OF 1 REV V
