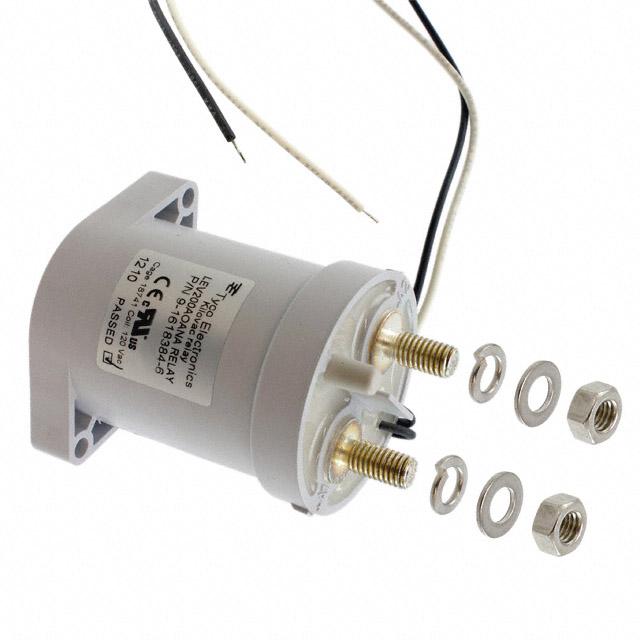

LEV200AOANA
High Voltage Relays, 12 - 900VDC Contact Voltage Rating, Contact Arrangement 1
Form X, SPST-NO-DM, Flying Lead, Terminals, Kilovac LEV200
LEV200AOANA
ACTIVE
Kilovac | Kilovac LEV200
TE Internal #: 9-1618384-6
High Voltage Relays, 12 - 900VDC Contact Voltage Rating, Contact
Arrangement 1 Form X, SPST-NO-DM, Flying Lead, Terminals,
Kilovac LEV200
View on TE.com >
Relays & Contactors > Relays > High Voltage Relays
Contact Voltage Rating: 12 - 900 VDC
Contact Arrangement: 1 Form X, SPST-NO-DM
Coil Termination & Connection Type: Flying Lead
High Voltage Connection (Power): Terminals
Power Switching: Yes
Features
Configuration Features
Contact Arrangement
1 Form X, SPST-NO-DM
Electrical Characteristics
Contact Voltage Rating
12 - 900 VDC
Contact Current Rating
500 A
Coil Voltage Rating
900 VDC
Coil Resistance
1008.3 Ω
Contact Switching Voltage (Max)
900 VDC
Contact Features
Contact Material
Copper
Termination Features
Coil Termination & Connection Type
Flying Lead
High Voltage Connection (Power)
Terminals
Terminal Configuration
Stud Terminals
Mechanical Attachment
Product Mounting Feature Type
Flange with Mounting Holes
Product Mount Type
Chassis
Operation/Application
Power Switching
For support call +1 800 522 6752
Yes
06/19/2024 09:48PM |Page 1
LEV200AOANA
High Voltage Relays, 12 - 900VDC Contact Voltage Rating, Contact Arrangement 1
Form X, SPST-NO-DM, Flying Lead, Terminals, Kilovac LEV200
Power Switching
Yes
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
Compliant with Exemptions
EU ELV Directive 2000/53/EC
Compliant with Exemptions
China RoHS 2 Directive MIIT Order No 32, 2016
Restricted Materials Above Threshold
EU REACH Regulation (EC) No. 1907/2006
Current ECHA Candidate List: JAN 2024
(240)
Candidate List Declared Against: JAN 2022
(223)
Does not contain REACH SVHC
Halogen Content
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Solder Process Capability
Hand solderable with lead free solder
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) 'Guidance on
requirements for substances in articles' posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach
Compatible Parts
TE Part # 9-1618387-5
TE Part # 8-1618404-1
LEV200HOANA01=RELAY, SPST-NO
LEV200AKNAF=RELAY, SPST-NO
72VDC
