MS580305BA01-00

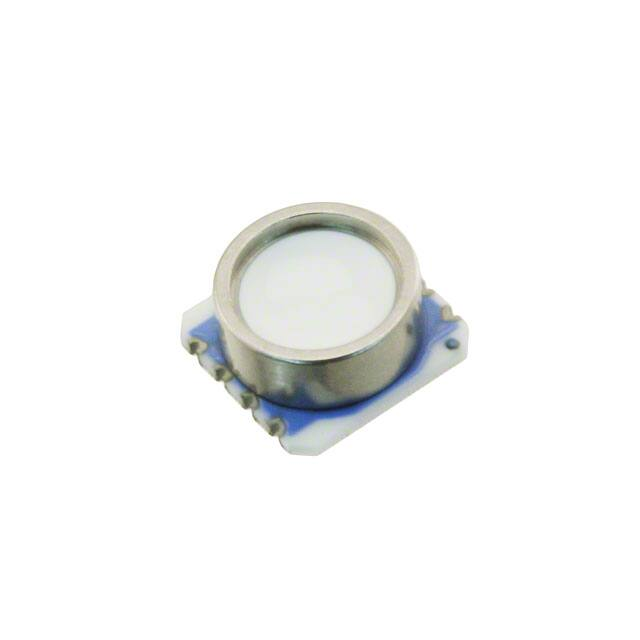

MS5803-05BA Miniature Altimeter and Diving Module FEATURES           High resolution module, 30cm Fast conversion down to 1 ms Low power, 1 µA (standby < 0.15 µA) Integrated digital pressure sensor (24 bit ΔΣ ADC) Supply voltage 1.8 to 3.6 V Operating range: 0 to 5bar, -40 to +85 °C I2C and SPI interface (Mode 0, 3) No external components (Internal oscillator) Excellent long term stability The MS5803-05BA is a new generation of high resolution altimeter sensors from TE Connectivity with SPI and I2C bus interface. It is optimized for depth meters and altimeters with an altitude resolution of 30 cm. The sensor module includes a high linearity pressure sensor and an ultra-low power 24 bit ΔΣ ADC with internal factory calibrated coefficients. It provides a precise digital 24 Bit pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. A high resolution temperature output allows the implementation of an altimeter/thermometer function without any additional sensor. The MS5803-05BA can be interfaced to virtually any microcontroller. The communication protocol is simple, without the need of programming internal registers in the device. The gel protection and antimagnetic stainless steel cap allows the use in 100m waterproof watches. This new sensor module generation is based on leading MEMS technology and latest benefits from TE proven experience and know-how in high volume manufacturing of altimeter modules, which have been widely used for over a decade. The sensing principle employed leads to very low hysteresis and high stability of both pressure and temperature signal. Hermetically sealable for outdoor devices APPLICATIONS    Dual Mobile altimeter / depth meter systems Adventure or multi-mode watches Diving computers SENSOR SOLUTIONS ///MS5803-05BA 08/2017 Page 1 MS5803-05BA Miniature Altimeter and Diving Module TECHNICAL DATA Sensor Performances (VDD = 3 V) Pressure Min Range Typ 0 ADC Resolution (1), Altimeter mode Accuracy 20°C 300 to 1100 mbar (2) Accuracy 0°C to +50°C, 0 to 5 bar (2) Max Unit 5 bar 24 0.195 / 0.126 / 0.081 / 0.054 / 0.036 mbar -1.5 +1.5 mbar -100 100 mbar Long term stability 0.5 / 1.1 / 2.1 / 4.1 / 8.22 +/-1 Temperature Min Range -40 Response time bit Resolution Typ ms mbar/yr Max Unit +85 °C
