Power Rocker Switches
Series PRA, PRB and PRD
Product Facts
• Full
line of single or doublepole power rocker switches
for three different industry
compatible panel cut-out
sizes
• Easy to install snap-in
mounting
• Dust resistant
• Dual color rocker option
• Full-illuminated rocker
option
• LED or neon window
illuminated option
• Wide range of marking
options and functions
available
• Solder lugs or .187 & .250
FASTON Tab terminals
• Cost competitive
Series PRA
.51 [13.0] x .76 [19.2]
Panel Cut-out
Series PRB
.54 [13.8] x 1.09 [27.6]
Panel Cut-out
Materials and Finish
Current: 16A@125 VAC 1/3 HP
10A@250 VAC 1/2 HP
PRA Series Double Pole:
7A@125 VAC
6A@250 VAC
PRA Series Single Pole:
6 (3)A 250V ~ 10A 125V ~
µ 25T85
Inrush Current: 50A/3msec
(capacitive load)
Contact Resistance (initial): 1000
VAC, 1 min.
Insulation Resistance (initial):
>100Mohms min.
Electrical Life Endurance:
>6000 operations
Voltage drop 100,000 operations
Actuating Force:
Series PRA 150g min., 650g max.
Series PRB 300g min., 700g max.
Series PRD 850g min., 1250g max.
F21
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Power Rocker Switches Series PRA
.51 [13.0] x .76 [19.2] Panel Cutout
Single-Pole, Lamp Illuminated or Non-Illuminated
.83
[21.0]
Rocker
Button
.15±.02
[3.8±0.5]
Switch
Frame
.82±.039
[20.9±1.0]
to install snap-in
mounting
n Dust resistant
n Dual color rocker option
n Full-illuminated rocker
option
n LED or neon window
illuminated option
n Wide range of marking
options and functions
available
n Solder lugs or .187 FASTON
Tab terminals
n Cost competitive
Power Rocker Switches Series PRA
F
.59
[15.0]
0.59
[15.0]
Switch
Frame
.13±.012
[3.3±0.3]
.079±.008
[2.00±0.20]
Rocker
Button
.078±.012
[2.0±0.30]
.59±.012
[15.0±0.3]
Faston Tab
Terminal
.03±.004
[0.8±0.1]
FASTON
Tab
Terminal
.34
.187±.004 [8.7]
[4.75±0.10]
.28
[7.1]
n Easy
* Refer to Pages F21 for
Product Specifications
.83
[21.0]
.54
[13.8]
Product Facts
Double-Pole, Non-Illuminated
.73
[18.5]
.512±.008
[13.00±0.20]
0.031
[0.80]
.187±.004
.19±.012
[4.75±0.10]
[4.8±0.3]
.71[18.0]
.31 Typ.
[7.75]
.504±.004
[12.8±0.10]
Non-Illuminated Version Shown
Alcoswitch Part Number
PR
A
X
XX — XX
X — X
X
X
X
X
Switch Type
PR Power Rockers
Legend Text Color
Panel Cut-out Size
0 Not Applicable
B Black
A
G Green
.51 [13.0] x .76 [19.2]
0
A
B
C
D
Single Pole
Double Pole
Switch Functions
A1
A2
A3
B1
B2
B3
B4
C1
D1
D2
D3
D4
ON-OFF; opaque, single-color rocker button
ON-OFF; opaque, dual-color rocker button
(ON)-OFF; opaque, single-color rocker button
ON-OFF; transparent, lamp-illuminated rocker button
(100-125 V lamp voltage)
ON-OFF; opaque, with lamp window, lamp-illuminated rocker
button (100-125 V lamp voltage)
ON-OFF; transparent, lamp-illuminated rocker
button (200-250 V lamp voltage)
ON-OFF; opaque, with lamp window, lamp-illuminated rocker
button (200-250 V lamp voltage)
ON-OFF; opaque, with LED window, LED-illuminated rocker
button
ON-ON; opaque, single-color rocker button
ON-(ON); opaque, single-color rocker button
ON-OFF-ON; opaque, single-color rocker button
ON-OFF-(ON); opaque, single-color rocker button
Power Rating
07
16
W White
Legend Text Pattern
Number of Poles
S
D
R Red
Not Applicable
Dot
o -o|
-- =
E
F
G
H
J
| ||
-- o =
| o ||
ON OFF
o--
Secondary Rocker Color, Window Color, or LED Color
0 Not Applicable
A Amber
B Black
C
G
R
W
Rocker Color
A
B
Amber
Black
C
Clear
Clear
Green
Red
White
G Green
R Red
W White
Frame Color
B
Black
W White
Terminal Type
F
L
FASTON Tab
Solder Lug
7A @ 125 VAC; 6A @ 250 VAC (Double-pole only)
16A, 1/3 Hp @ 125 VAC (Single-pole only)
10A, 1/2 Hp @ 250 VAC
10A 125V~ 6 (3)A 250V~
µ 25T85
Part No.
Tyco
Electronics
1571076-9
1-1571076-0
1-1571076-1
1-1571076-2
1-1571076-3
1-1571076-4
1-1571076-5
1-1571076-6
1-1571076-7
2-1571076-0
2-1571076-1
1571078-2
1571078-4
1571079-4
1571079-5
1571079-6
Alcoswitch
PRASA1-16F-BB000
PRASA1-16F-BB0BW
PRASA1-16F-BB0CW
PRASA1-16L-BB000
PRASA1-16L-BB0BW
PRASA1-16L-BB0CW
PRASA1-16F-BR000
PRASA1-16L-BR000
PRASA2-16F-BBRBR
PRASA1-16F-BB0HW
PRASA3-16F-BB0JW

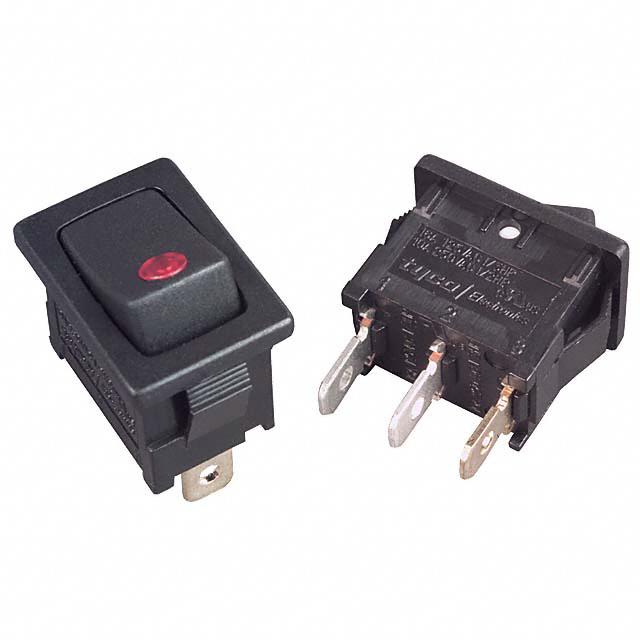

PRASB1-16F-BR000
PRASB2-16F-BBR00
PRASD1-16F-BB000
PRASD1-16F-BB0DW
PRASD1-16F-BB0EW
Tyco
Electronics
1571079-7
1571079-8
1571079-9
1-1571079-0
1-1571079-1
1-1571079-2
1-1571079-3
1-1571079-4
1-1571079-5
1571083-2
1571084-1
1571084-2
1571084-3
1571084-4
Alcoswitch
PRASD3-16F-BB000
PRASD3-16F-BB0FW
PRASD3-16F-BB0GW
PRASD2-16F-BB000
PRASD2-16F-BB0DW
PRASD2-16F-BB0EW
PRASD4-16F-BB000
PRASD4-16F-BB0FW
PRASD4-16F-BB0GW
PRASC1-16F-BBR00
PRADA1-07F-BB000
PRADA1-07F-BB0BW
PRADA1-07F-BB0CW
PRADA1-07F-BR000
Tyco
Electronics
1571084-5
1571086-1
1571086-2
1571086-3
1571086-4
1571086-5
1571086-6
1571086-7
1571086-8
1571086-9
1-1571086-0
1-1571086-1
1-1571086-2
Alcoswitch
PRADA1-07F-BR0BW
PRADD1-07F-BB000
PRADD1-07F-BB0DW
PRADD1-07F-BB0EW
PRADD3-07F-BB000
PRADD3-07F-BB0FW
PRADD3-07F-BB0GW
PRADD2-07F-BB000
PRADD2-07F-BB0DW
PRADD2-07F-BB0EW
PRADD4-07F-BB000
PRADD4-07F-BB0FW
PRADD4-07F-BB0GW
PVC Waterproof Cover: 1571786-1
F22
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Power Rocker Switches Series PRB
.54 [13.8] x 1.09 [27.6] Panel Cutout
1.240
[31.5]
* Refer to Pages F21 for
Product Specifications
.728
[18.5]
.417±.008 [10.6±0.2]
Rocker Button
.23±.02
[5.8±0.5]
.063±.008 [1.6±0.2]
Switch
Frame
.767
[19.5]
1.16±.04
[29.5±1.0]
FASTON Tab
Terminal
.031 [0.80]
Product Facts
.250±.004 [6.35±0.1]
.37±.02 [9.3±0.5]
n Easy
to install snap-in
mounting
n Dual color rocker option
n Full-illuminated rocker
option
n Lamp window illuminated
option
n Wide range of marking
options and functions
available
n Solder lugs or .250 FASTON
Tab terminals
n Cost competitive
.535±.008 [13.6±0.2]
1.070±.008
[27.2±0.2]
Alcoswitch Part Number
PR
B
S
XX — XX
X — X
X
X
X
X
Switch Type
PR Power Rockers
Legend Text Color
Panel Cut-out Size
0 Not Applicable
B Black
B
G Green
.54 [13.8] x 1.09 [27.6]
0
A
B
C
D
Single Pole
Switch Functions
A1 ON-OFF; opaque, single-color rocker button
A2 ON-OFF; opaque, dual-color rocker button
B1 ON-OFF; transparent, lamp-illuminated rocker button
(100-125 V lamp voltage)
B3 ON-OFF; transparent, lamp-illuminated rocker button
(200-250 V lamp voltage)
C1 ON-OFF; opaque, with LED window, LED-illuminated rocker
button
D1 ON-ON; opaque, single-color rocker button
D3 ON-OFF-ON; opaque, single-color rocker button
Not Applicable
Dot
o -o|
-- =
E
F
G
H
| ||
-- o =
| o ||
ON OFF
F
Secondary Rocker Color, Window Color, or LED Color
C
G
R
W
Rocker Color
A
B
Amber
Black
C
Clear
Power Rocker Switches Series PRB
0 Not Applicable
A Amber
B Black
Power Rating
16
W White
Legend Text Pattern
Number of Poles
S
R Red
Clear
Green
Red
White
G Green
R Red
W White
Frame Color
16A, 1/3 Hp @ 125 VAC
10A, 1/2 Hp @ 250 VAC
B
Black
W White
Terminal Type
F
L
FASTON Tab
Solder Lug
Part No.
Tyco
Electronics
1571087-1
1571087-2
1571091-1
1571091-2
1571091-3
1571091-4
1571091-5
1571091-6
1571091-7
1571091-8
1571091-9
1-1571091-0
1-1571091-1
1-1571091-2
Alcoswitch
PRBSC1-16F-BBR00
PRBSC1-16L-BBR00
PRBSA1-16F-BB000
PRBSA1-16F-BB0BW
PRBSA1-16F-BB0CW
PRBSA1-16L-BB000
PRBSA1-16L-BB0BW
PRBSA1-16L-BB0CW
PRBSA1-16F-BR000
PRBSA1-16L-BR000
PRBSA1-16F-BB0HW
PRBSA1-16F-BR0HW
PRBSA1-16F-BW000
PRBSA1-16F-BW0HB
Tyco
Electronics
1571092-1
1571092-2
1571092-3
1571092-4
1571094-1
1571094-2
1571094-3
1571094-4
1571094-5
1571094-6
1571094-7
Alcoswitch
PRBSB1-16F-BR000
PRBSB1-16F-BR0BW
PRBSB1-16F-BA000
PRBSB1-16F-BC000
PRBSD1-16F-BB000
PRBSD1-16F-BB0DW
PRBSD1-16F-BB0EW
PRBSD3-16F-BB000
PRBSD3-16F-BB0FW
PRBSD3-16F-BB0GW
PRBSD3-16F-BW000
F23
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Power Rocker Switches Series PRD
1.00 [25.4] x 1.09 [27.6] Panel Cutout
1.24
[31.5]
.19±.02
[4.8±0.5]
* Refer to Pages F21 for
Product Specifications
1.15
[29.3]
Rocker Button
Switch
Frame
.063±.008
[1.6±0.2]
0.89
[22.5]
1.28±.04
[32.5±1.0]
FASTON Tab
Terminal
Product Facts
to install snap-in
mounting
n Full illuminated rocker
option
n Wide range of marking
options and functions
available
n FASTON .250 Tab terminals
n Cost competitive
.031
[0.80]
n Easy
.472±.020
[12.0±0.5]
.37±.02
[9.3±0.5]
.992±.008
[25.2±0.2]
1.078±.008
[27.4±0.2]
Alcoswitch Part Number
PR
F
.250±.004
[6.35±0.1]
D
D
XX — XX
X — X
X
X
X
X
Power Rocker Switches Series PRD
Switch Type
PR Power Rockers
Legend Text Color
Panel Cut-out Size
0 Not Applicable
B Black
B
G Green
1.00 [25.4] x 1.09 [27.6]
0
A
B
C
D
Double Pole
Switch Functions
A1 ON-OFF; opaque, single-color rocker button
B1 ON-OFF; transparent, lamp-illuminated rocker button
(100-125 V lamp voltage)
B3 ON-OFF; transparent, lamp-illuminated rocker button
(200-250 V lamp voltage)
D1 ON-ON; opaque, single-color rocker button
D3 ON-OFF-ON; opaque, single-color rocker button
E
F
G
H
| ||
-o=
| o ||
ON OFF
0 Not Applicable
Rocker Color
16A, 1/3 Hp @ 125 VAC
10A, 1/2 Hp @ 250 VAC
A
B
Amber
Black
C
Clear
G Green
R Red
W White
Frame Color
B
Terminal Type
F
Not Applicable
Dot
o -o|
-=
Secondary Rocker Color, Window Color, or LED Color
Power Rating
16
W White
Legend Text Pattern
Number of Poles
S
R Red
Black
W White
FASTON Tab
Part No.
Tyco
Electronics
1571103-1
1571103-2
1571103-3
1571103-4
1571103-5
1571103-6
1571113-7
Alcoswitch
PRDDA1-16F-BB000
PRDDA1-16F-BB0BW
PRDDA1-16F-BB0CW
PRDDA1-16F-BR000
PRDDA1-16F-BB0HW
PRDDA1-16F-BR0HW
PRDDD3-16F-BR000
Tyco
Electronics
1571112-1
1571112-2
1571113-1
1571113-2
1571113-3
1571113-4
1571113-5
1571113-6
Alcoswitch
PRDDB1-16F-BR000
PRDDB1-16F-BA000
PRDDD1-16F-BB000
PRDDD1-16F-BB0DW
PRDDD1-16F-BB0EW
PRDDD3-16F-BB000
PRDDD3-16F-BB0FW
PRDDD3-16F-BB0GW
F24
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
