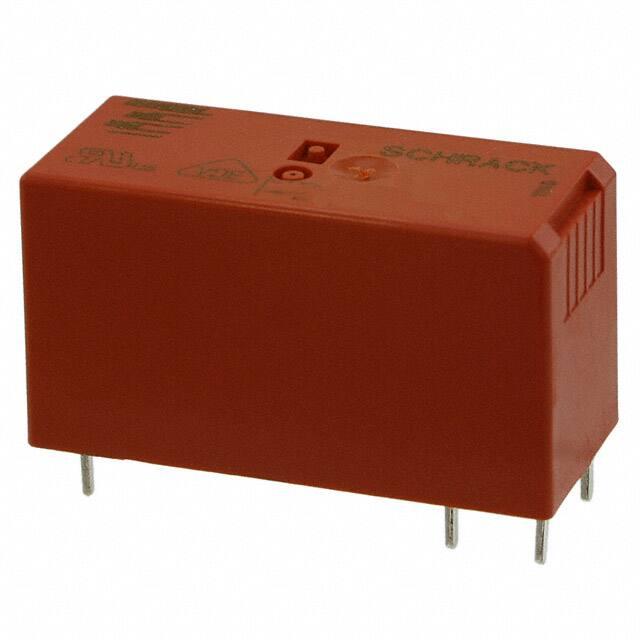

RTX3-1AT-B048

General Purpose Relays PCB Relays SCHRACK Power PCB Relay RTX n 1 pole 16A, 1 form A (NO) contact (W pre-make contact + AgSnO2) rated fluorescent load n 140µF load, 16A/250V, 30000 operations n Bistable coil n 5kV/10mm coil-contact n Reinforced insulation n 16A F0176-C Typical applications Lighting control systems, movement sensors (e.g. passive infrared sensors), home automation applications (bus systems, remote switching), electronic switches for fixed installation Z All figures are given for coil without preenergization, at ambient temperature +23°C. Other coil voltages on request. Approvals Coil data (continued) VDE 40035087; UL E214025 Technical data of approved types on request Contact Data Contact arrangement 1 form A (NO) contact Rated voltage 250VAC Rated current 16A Limiting making current incandescent lamps 200A peak flourescent lamps 320A peak Breaking capacity max. 4000VA Contact material W (pre-make cont.)+AgSnO2 Contact style pre-make contact Frequency of operation, with/without load 720/7200h-1 Operate/ Reset time max. 7/5 ms Bounce time max. 4 ms Contact ratings Load IEC 61810 16A, 250VAC resistive, 70°C IEC 60669-1 (planned) 16A; 250V UL508 16A, 250VAC, general purpose, 70°C TV16, 277VAC, 70°C Mechanical endurance Coil Data, bistable coils Cycles 10x103 15x103 25x103 >105 operations 1 coil 2 coils Magnetic system polarized, bistable Coil voltage range 3 to 48VDC Min./Max. energization duration 30ms/1min at < 10% df Coil insulation system according UL1446 class F Bistable coils - operation Version 1 coil 2 coils Coil terminals A1 A2 A1 A3 A2 Operate + - + Reset - + - + Contact position not defined at delivery Insulation Data Initial dielectric strength between open contacts new after test with 250VAC between contact and coil Clearance/creepage between contact and coil Distance through solid insulation Material group of insulation parts Tracking index of relay base 1250Vrms 500Vrms 5000Vrms ≥ 6/6mm > 2mm IIIa PTI 250V Other Data EU RoHS/ELV compliance compliant Ambient temperature -40 to 70°C Category of environmental protection IEC 61810 RTII - flux proof Vibration resistance (functional) 15g Shock resistance (destructive) 100g Terminal type PCB-THT Weight 11g Resistance to soldering heat THT IEC 60068-2-20 270°C/10s Packaging/unit tube/20 pcs., box/500 pcs. Coil versions, bistable coil Coil Rated Set Reset Coil Rated coil code voltage voltage voltage resistance power VDC VDC VDC Ω±10% mW Coil versions, bistable 1 coil B003 3 2.25 2.25 14 650 B005 5 3.75 3.75 38 650 B006 6 4.5 4.5 55 650 B009 9 6.8 6.8 120 665 B012 12 9.0 9.0 220 650 B024 24 18.0 18.0 890 650 B048 48 36.0 36.0 3540 650 Coil versions, bistable 2 coils C012 12 9.0 9.0 150 950 C024 24 18.0 18.0 610 950 05-2014, Rev. 0514 www.te.com © 2014 Tyco Electronics Corporation, a TE Connectivity Ltd. company Datasheets and product specification according to IEC 61810-1 and to be used only together with the ‘Definitions’ section. Datasheets and product data is subject to the terms of the disclaimer and all chapters of the ‘Definitions’ section, available at http://relays.te.com/definitions Datasheets, product data, ‘Definitions’ section, application notes and all specifications are subject to change. 1 General Purpose Relays PCB Relays SCHRACK Power PCB Relay RTX (Continued) PCB layout / terminal assignment Bottom view on solder pins 16​A, pinning 5​mm, 1 form A (NO) contact a) Indicated contact position during or after coil energization with reset voltage. b) for 2 coil version only S0163-DI a) S0418-CM Dimensions S0272-BC-RTX Product code structure Typical product code RTX 3 -1A T -B012 Type RTX Version 3 16A, double pinning 5mm Contact arrangement 1A 1 form A (1 NO) Contact material T W (pre-make cont.)+AgSnO Coil version Coil code: please refer to coil versions table Product code RTX3-1AT-B003 RTX3-1AT-B005 RTX3-1AT-B006 RTX3-1AT-B009 RTX3-1AT-B012 RTX3-1AT-B024 RTX3-1AT-B048 RTX3-1AT-C012 RTX3-1AT-C024 Contacts 1 NO contact Power PCB Relay RTX Contact material W(pre-make) + AgSnO Coil Version bistable 1 coil bistable 2 coil Other types on request. This list represents the most common types and does not show all variants covered by this datasheet. 2 05-2014, Rev. 0514 www.te.com © 2014 Tyco Electronics Corporation, a TE Connectivity Ltd. company Datasheets and product specification according to IEC 61810-1 and to be used only together with the ‘Definitions’ section. Datasheets and product data is subject to the terms of the disclaimer and all chapters of the ‘Definitions’ section, available at http://relays.te.com/definitions Coil 3 VDC 5 VDC 6 VDC 9 VDC 12 VDC 24 VDC 48 VDC 12 VDC 24 VDC Part number 1937650-1 1937650-2 1937650-3 1937650-4 1937650-5 1937650-6 1937650-7 1937650-8 1937650-9 Datasheets, product data, ‘Definitions’ section, application notes and all specifications are subject to change.
