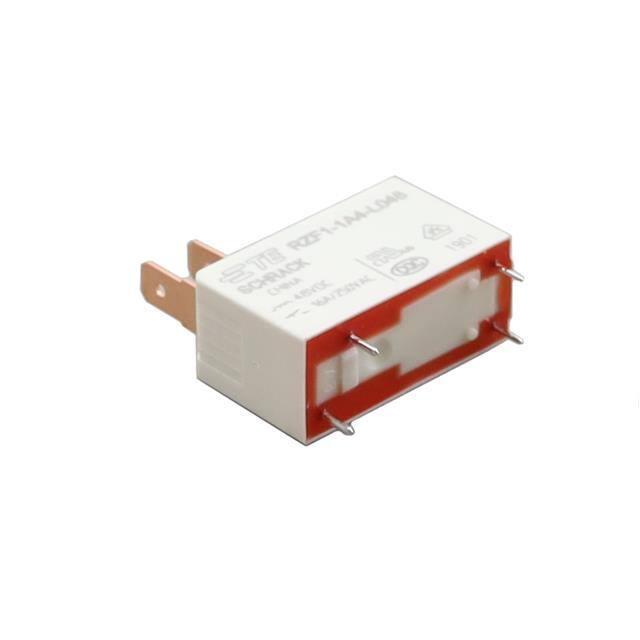

1833011-7
RZF1-1A4-L048
1833011-7
OBSOLETE
SCHRACK
TE Internal #: 1833011-7
TE Internal Description: RZF1-1A4-L048
View on TE.com >
Relays, Contactors & Switches > Relays > Power Relays
Power Relay Type: Standard
Coil Magnetic System: Monostable, DC
Coil Power Rating DC: 530 mW
Coil Resistance: 4347 Ω
Coil Special Features: UL Coil Insulation Class F
Features
Product Type Features
Power Relay Type
Standard
Electrical Characteristics
Insulation Initial Dielectric Between Coil & Contact Class
2500 – 5000 V, 4000 – 5000 V, 5000 V
Vibration
5G's, 0 - 500Hz
Insulation Initial Dielectric Between Open Contacts
1000 Vrms
Contact Limiting Making Current
16 A
Contact Limiting Continuous Current
16 A
Insulation Creepage Class
8 mm
Coil Power Rating Class
500 – 600 mW
Shock
100G's, 6ms
Insulation Initial Dielectric Between Contacts & Coil
5000 Vrms
Insulation Creepage Between Contact & Coil
8 mm[.315 in]
Coil Magnetic System
Monostable, DC
Coil Power Rating DC
530 mW
Coil Resistance
4347 Ω
Coil Special Features
UL Coil Insulation Class F
Coil Voltage Rating
48 VDC
Contact Switching Load (Min)
100mA @ 5V
Contact Switching Voltage (Max)
400 VAC
Contact Voltage Rating
250 VAC
For support call+1 800 522 6752
01/02/2024 09:05AM | Page 1
1833011-7
RZF1-1A4-L048
Contact Voltage Rating
250 VAC
Body Features
Product Weight
11 g[.388 oz]
Case Color
Natural
Contact Features
Contact Plating Material
Silver Nickel
Switch Arrangement
1 Form A (SPST-NO)
Contact Arrangement
1 Form A (NO)
Contact Current Class
10 – 20 A, 15 – 20 A, 16 A
Contact Current Rating (Max)
16 A
Contact Material
AgNi90/10
Contact Number of Poles
1
Relay Terminal Type
PCB-THT
Mechanical Attachment
Relay Mounting Type
Printed Circuit Board
Dimensions
Length Class (Mechanical)
25 – 30 mm
Insulation Clearance Class
5 – 8 mm
Height Class (Mechanical)
16 – 20 mm
Width Class (Mechanical)
12 – 16 mm
Product Width
12.8 mm[.504 in]
Product Length
29 mm[1.142 in]
Product Height
17.9 mm[.705 in]
Usage Conditions
Environmental Ambient Temperature (Max)
85 °C[185 °F]
Operating Temperature Range
-40 – 85 °C[-40 – 185 °F]
Packaging Features
Packaging Method
Carton & Tube
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
Compliant
EU ELV Directive 2000/53/EC
Compliant
For support call+1 800 522 6752
01/02/2024 09:05AM | Page 2
1833011-7
RZF1-1A4-L048
EU ELV Directive 2000/53/EC
Compliant
China RoHS 2 Directive MIIT Order No 32, 2016
No Restricted Materials Above Threshold
EU REACH Regulation (EC) No. 1907/2006
Current ECHA Candidate List: JUNE 2023
(235)
Candidate List Declared Against: JUL 2021
(219)
Does not contain REACH SVHC
Halogen Content
Not Low Halogen - contains Br or Cl > 900
ppm.
Solder Process Capability
Wave solder capable to 265°C
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach
Customers Also Bought
TE Part #320574
TE Part #1393260-7
TE Part #T4061410004-004
TE Part #503123-000
TERMINAL,PIDG R 16-14 10
SR6B4024 - V23050-A1024-A542
M8 CABLE RA FEMALE 3M 4POS PVC
CABLE
DK-621-0412-S
TE Part #32151
TE Part #6-1393765-9
TE Part #1-2176397-8
TE Part #T4061310003-005
SPLICE,SOLIS BUTT 12-10
R10-E1P2-V700=R10
3502 5R1 1%
M8 CABLE ST FEMALE 5M 3POS PVC
CABLE
For support call+1 800 522 6752
01/02/2024 09:05AM | Page 3
1833011-7
RZF1-1A4-L048
TE Part #T4151410004-005
TE Part #ZPF000000000105608
RPC-M12-FR-4CON-PVC-5.0
DBAS 74-37-924 SN 059
Documents
CAD Files
3D PDF
3D
Customer View Model
ENG_CVM_CVM_1833011-7_B.2d_dxf.zip
English
Customer View Model
ENG_CVM_CVM_1833011-7_B.3d_igs.zip
English
Customer View Model
ENG_CVM_CVM_1833011-7_B.3d_stp.zip
English
By downloading the CAD file I accept and agree to the Terms and Conditions of use.
Datasheets & Catalog Pages
RZF Relay Product Flyer
English
RZF Relay Datasheet
English
Agency Approvals
RZF_CQC_S_C1
English
RZF_CQC_SZ_C1
English
For support call+1 800 522 6752
01/02/2024 09:05AM | Page 4
