SBCHE15150RJ

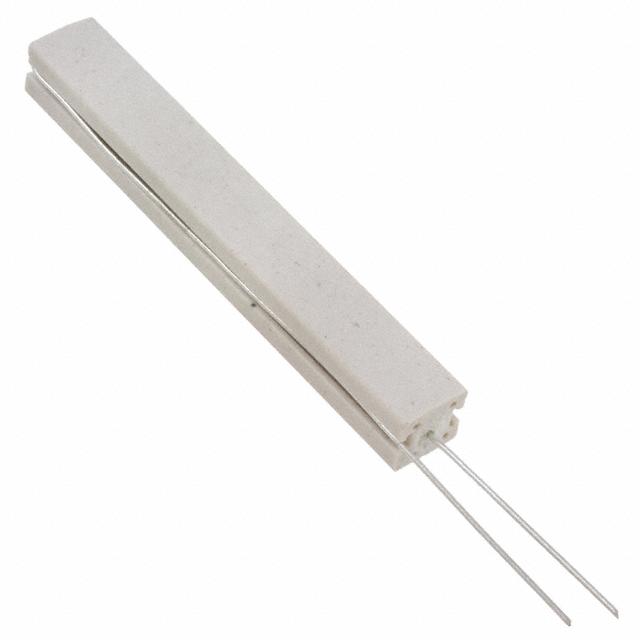

150 Ω, Wire Wound, Power Resistor, 5 %, 75 x 10 x 9 mm, 2 Termination, Loose Piece
- Box, 17 W, ±200 ppm/°C, Copper Termination, Axial-Leaded, CGS SBC
SBCHE15150RJ
ACTIVE
CGS | CGS SBC
TE Internal #: 1623729-4
150 Ω, Wire Wound, Power Resistor, 5 %, 75 x 10 x 9 mm, 2
Termination, Loose Piece - Box, 17 W, ±200 ppm/°C, Copper
Termination, Axial-Leaded, CGS SBC
View on TE.com >
Passive Components > Resistors > Through-Hole Resistors > Wirewound Resistor: Vertical Mount
Resistor Type: Power Resistor
Passive Component Dimensions: 75 x 10 x 9 mm
Number of Terminations: 2
Packaging Method: Loose Piece - Box
Passive Component Tolerance: 5 %
All Wirewound Resistor: Vertical Mount (166)
Features
Product Type Features
Resistor Type
Power Resistor
Element Type
Wire Wound
Configuration Features
Number of Resistors
1
Electrical Characteristics
Passive Component Tolerance
5%
Resistance Class
Up to 1kΩ
Resistance Value
150 Ω
Power Rating
17 W
Body Features
Lead Type
Axial-Leaded
Termination Features
Number of Terminations
2
Termination Area Base Material
Copper
Dimensions
Passive Component Dimensions
Usage Conditions
For support call+1 800 522 6752
75 x 10 x 9 mm
11/17/2023 10:07AM | Page 1
SBCHE15150RJ
150 Ω, Wire Wound, Power Resistor, 5 %, 75 x 10 x 9 mm, 2 Termination, Loose Piece
- Box, 17 W, ±200 ppm/°C, Copper Termination, Axial-Leaded, CGS SBC
Usage Conditions
Operating Temperature Range
-55 – 350 °C
Temperature Coefficient
±200 ppm/°C
Packaging Features
Packaging Method
Loose Piece - Box
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
Compliant
EU ELV Directive 2000/53/EC
Compliant
China RoHS 2 Directive MIIT Order No 32, 2016
No Restricted Materials Above Threshold
EU REACH Regulation (EC) No. 1907/2006
Current ECHA Candidate List: JUNE 2023
(235)
Candidate List Declared Against: JUNE
2023 (235)
Does not contain REACH SVHC
Halogen Content
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Solder Process Capability
Wave solder capable to 265°C
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach
