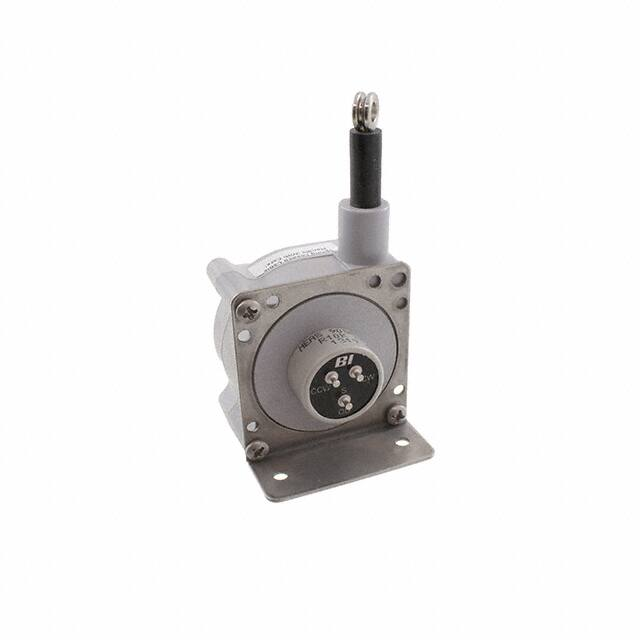

SP1
Compact String Pot • Voltage Divider
Output
Linear Position to 50 inches (1270 mm)
Rugged Polycarbonate Enclosure • IP67 Optional
Mounting Bracket & Optional Sensor Cover w/Connector
IN STOCK for Quick Delivery!
Complete Specifications
This compact stringpot with “voltage divider”
output, provides ease-of-use and flexibility for
measurement ranges up to 50 inches. Made of
rugged polycarbonate, the SP1 fits in small
spaces, doesn’t need perfect alignment and ships
with a stainless steel mounting bracket to let the
user easily orient this sensor in just about any
direction imaginable.
The SP1 is available with a connector, mating
plug and sensor cover to protect against IP67
(wet) environments and a lower cost, “open”
sensor version priced for both the budget
conscious single piece user and the OEM alike.
Ordering Information
Available Stroke Ranges
0-4.75, 0-12.5, 0-25, 0-50 inches
Output Signal
voltage divider (potentiometer)
Accuracy
±0.25 to ±1.00% (see ordering info)
Repeatability
± 0.05% full stroke
Resolution
essentially infinite
Measuring Cable
0.019-in. dia. nylon-coated stainless steel
Measuring Cable Tension
see ordering information
Maximum Cable Acceleration
see ordering information
Enclosure Material
Polycarbonate
Sensor
plastic-hybrid precision potentiometer
Weight, max. (includes bracket)
.4 lbs (.19 kg)
Electrical
Input Resistance
10K ohms, ±10%
Power Rating, Watts
2.0 at 70°F derated to 0 at 250°
Recommended Maximum Input
Voltage
30 V (AC/DC)
Output Signal Change Over Full
Stroke Range
94% ±4% of input voltage
Electrical Connection, SP1-xx
solder terminals
Electrical Connection, SP1-xx-3
4-pin, M12 connector
Environmental
SENSOR SOLUTIONS /// SP1
12//2015
Enclosure
IP 50 (SP1-xx), IP67 (SP1-xx-3)
Operating Temperature, SP1-xx
0° to 160°F (-18° to 70°C)
Operating Temperature, SP1-xx-3
-40° to 160°F (-40° to 70°C)
Vibration
up to 10 g to 2000 Hz maximum
Page 1
SP1
Compact String Pot • Voltage Divider Output
Electrical Connection
Terminal/Pin Location (SP1-xx)
Output Signal
Mounting Options for SP1-xx:
SENSOR SOLUTIONS /// SP1
12//2015
Page 2
SP1
Compact String Pot • Voltage Divider Output
SP1-xx w/o Mounting Bracket
SP1-xx w/ Mounting Bracket
SENSOR SOLUTIONS /// SP1
12//2015
Page 3
SP1
Compact String Pot • Voltage Divider Output
Mounting Options for SP1-xx-3
SP1-xx-3 w/o Mounting Bracket
SENSOR SOLUTIONS /// SP1
12//2015
Page 4
SP1
Compact String Pot • Voltage Divider Output
SP1-xx-3 w/ Mounting Bracket
NORTH AMERICA
Measurement Specialties, Inc.,
a TE Connectivity company
20630 Plummer Street
Chatsworth, CA 91311
Tel +1 800 423 5483
Tel +1 818 701 2750
Fax +1 818 701 2799
info@celesco.com
TE.com/sensorsolutions
Measurement Specialties, Inc., a TE Connectivity company.
Measurement Specialties, TE Connectivity, TE Connectivity (logo) and EVERY CONNECTION COUNTS are trademarks. All other logos, products and/or company names referred to
herein might be trademarks of their respective owners.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes
no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard
Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or
misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application.
© 2015
TE Connectivity Ltd. family of companies
All Rights Reserved.
SP1 12/01/2015
SENSOR SOLUTIONS /// SP1
12//2015
Page 5
