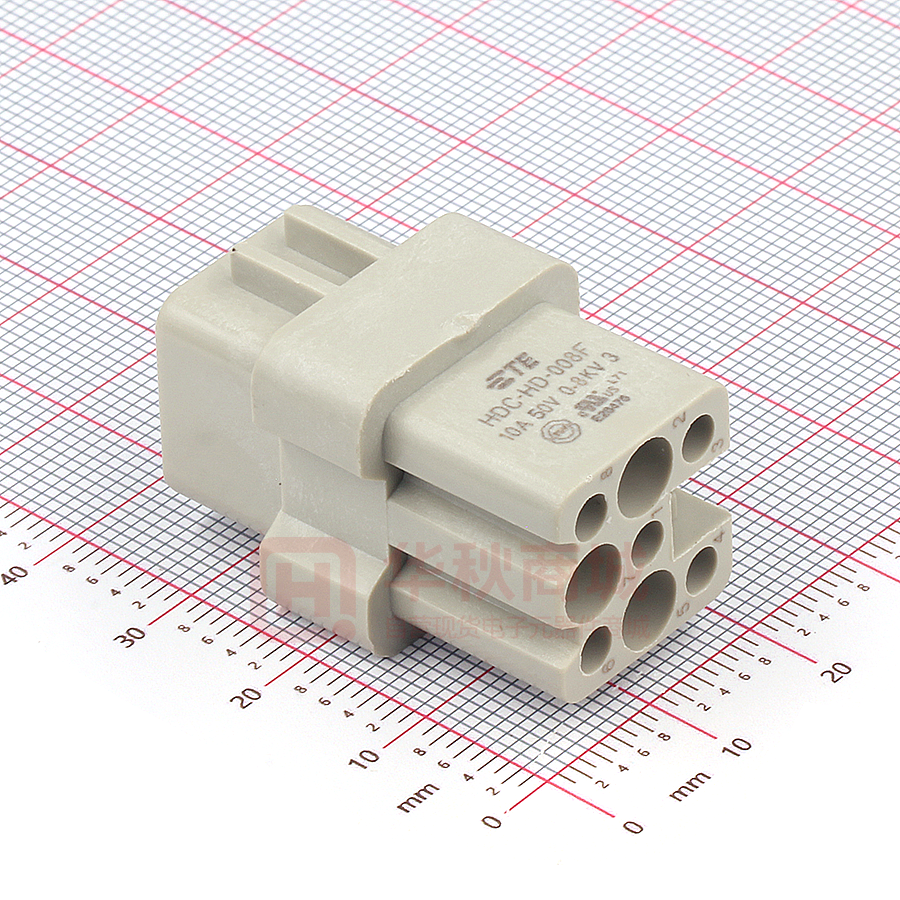

T2020082201-000

4 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT RELEASED FOR PUBLICATION 1 20 REVISIONS ALL RIGHTS RESERVED. BY - 20 2 3 P DESCRIPTION LTR A B D B1 C 10.2 DWN APVD INITIAL RELEASE 16DEC2014 HMR CW ECR-15-013292 16SEP2015 DL CW ECR-16-009730 06JUL2016 BS CW ECR-21-105750 02JUL2021 BS CW D 10.2 NOTES: 1. TECHNICAL CHARACTERISTICS: INSULATION MATERIAL: PBT RATED VOLTAGE: 50 V RATED CURRENT: 10 A INSULATION RESISTANCE: >=400M ^ RATED IMPULSE VOLTAGE: 0.8 KV POLLUTION DEGREE: 3 FLAMMABILITY: UL94V-0 MATING CYCLES: 500 CYCLES WIRE RANGE: 0.14-2.5 mm² (26-14 AWG) CONTACT TYPE: CRIMP CONTACT 2. CONTACT NEED TO BE ORDERED SEPARATELY. (ORDER No. REFER TO DRAWING:T20200X20XX000) M3 SCREW RECOMMENDED TIGHTENING TORQUE 0.5Nm C : : : : : : 10.5 1. : : : : : 33.5 ( 18.9 ) 14 DATE 2. ( C PBT 50V 10A >=400M ^ : 0.8 KV 3 UL94V-0 500 0.14-2.5 mm² (26-14 AWG) . : T20200X20XX000) B B T2020082201-001 T2020082201-000 PART NUMBER 21 THIS DRAWING IS A CONTROLLED DOCUMENT. TOLERANCES UNLESS OTHERWISE SPECIFIED: DIMENSIONS: mm A 21 1470-19 (3/13) MATERIAL 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES - FINISH - - 16DEC2014 RAGHAVENDRA H M CHK 16DEC2014 CHRIS WANG APVD 16DEC2014 XU XIANG HD-008-F HD-008 ( ) HD-008-F HD-008 DESCRIPTION DWN PRODUCT SPEC TE Connectivity NAME HD-008-F A 108-137042 APPLICATION SPEC - 114-137042 WEIGHT CUSTOMER DRAWING SIZE A3 CAGE CODE - DRAWING NO RESTRICTED TO T2020082201000 SCALE 2:1 SHEET 1 OF 1 REV C
