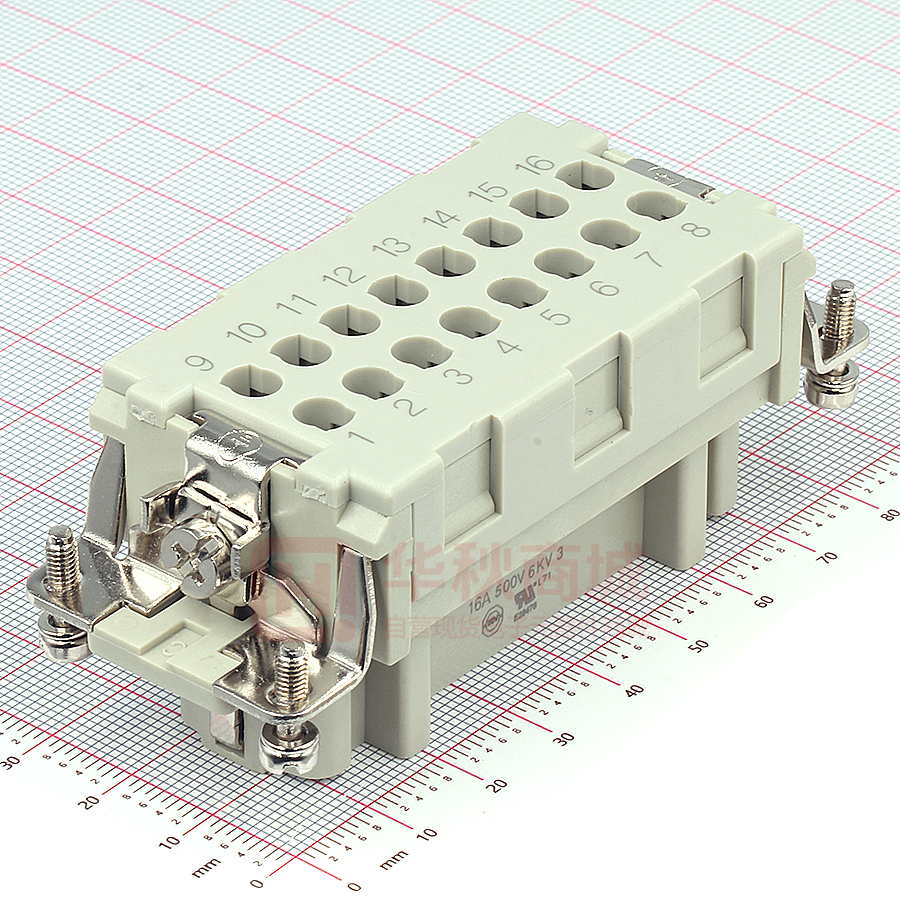

T2040164201-000

4 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 1 20 RELEASED FOR PUBLICATION REVISIONS ALL RIGHTS RESERVED. BY - 20 2 3 P A D B 84.5 B1 33.8 C 34.5 17.3 1.2 ( 23.3 ) : 1. 4X M3 SCREW,RECOMMENDED TIGHTENING TORQUE 0.5Nm 4X M3 , 0.5Nm 68.5 2. 36 14 27 B 4X .3 n3 77.5 PANEL CUT FOR INSERTS FOR USING WITHOUT HOODS/ HOUSINGS APVD 16APR2015 GY CW ECR-15-013759 12OCT2015 DW CW ECR-16-015492 16NOV2016 QY CW ECR-21-106515 19JUL2021 SQ CW D C PC 500V 16A >=400M ^ 6KV 3 UL94V-0 500 0.14mm²~4mm² (AWG26-AWG12) ( . : T20300X20XX000) B 77.5 TYPE-1,T2040164201-000,TE LOGO -1,T2040164201-000,TE LOGO THIS DRAWING IS A CONTROLLED DOCUMENT. TOLERANCES UNLESS OTHERWISE SPECIFIED: DIMENSIONS: mm A MATERIAL 1470-19 (3/13) DWN INITIAL RELEASE : : : : : : : : : : : 27 5 DATE NOTES: 1. TECHNICAL CHARACTERISTICS: INSULATION MATERIAL: PC RATED VOLTAGE: 500V RATED CURRENT: 16A INSULATION RESISTANCE: >=400M ^ RATED IMPULSE VOLTAGE: 6KV POLLUTION DEGREE: 3 FLAMMABILITY: UL94V-0 MATING CYCLES: 500 CYCLES WIRE RANGE: 0.14mm²~4mm² (AWG26-AWG12 ) CONTACT TYPE: CRIMP CONTACT 2. CONTACTS NEED TO BE ORDERED SEPARATELY. (ORDER No. REFER TO DRAWING:T20300X20XX000) M4 SCREW,RECOMMENDED TIGHTENING TORQUE 1.2Nm M4 , 1.2Nm C DESCRIPTION LTR 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES - FINISH - - DWN 16APR2015 CHK 16APR2015 APVD 16APR2015 Gino.Yao Chirs.Wang Xiang.Xu PRODUCT SPEC TE Connectivity NAME HE-016-FC A 108-137044 APPLICATION SPEC - 114-137044 WEIGHT CUSTOMER DRAWING SIZE CAGE CODE A3 00779 DRAWING NO RESTRICTED TO - T2040164201000 SCALE 1:1 SHEET 1 OF 2 REV C 4 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 RELEASED FOR PUBLICATION BY - 2 3 1 20 REVISIONS ALL RIGHTS RESERVED. P DESCRIPTION LTR - DATE SEE SHEET 1 DWN APVD - - - D D NOTE: SEE SHEET 1 : 1 C C TYPE-2,T2040164201-001,STAINLESS STEEL SCREW,NO LOGO -2,T2040164201-001, , LOGO B B ALL SPEC DIMENSION REFER TO TYPE 1 TYPE 1 HE-016-FC T2040164201-000 HE-016-FC PART NUMBER THIS DRAWING IS A CONTROLLED DOCUMENT. TOLERANCES UNLESS OTHERWISE SPECIFIED: DIMENSIONS: mm A MATERIAL 1470-19 (3/13) T2040164201-001 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES - FINISH - - HE-016 FEMALE INSERT,CRIMPING, STAINLESS STEEL SCREW,NO LOGO HE-016 , , , LOGO TYPE-2 -2 HE-016 FEMALE INSERT,CRIMPING HE-016 , TYPE-1 -1 PART DESCRIPTION DWN 16APR2015 CHK 16APR2015 APVD 16APR2015 Gino.Yao Chirs.Wang Xiang.Xu PRODUCT SPEC TYPE TE Connectivity NAME HE-016-FC A 108-137044 APPLICATION SPEC - 114-137044 WEIGHT CUSTOMER DRAWING SIZE CAGE CODE A3 00779 DRAWING NO RESTRICTED TO - T2040164201000 SCALE 1:1 SHEET 2 OF 2 REV C
