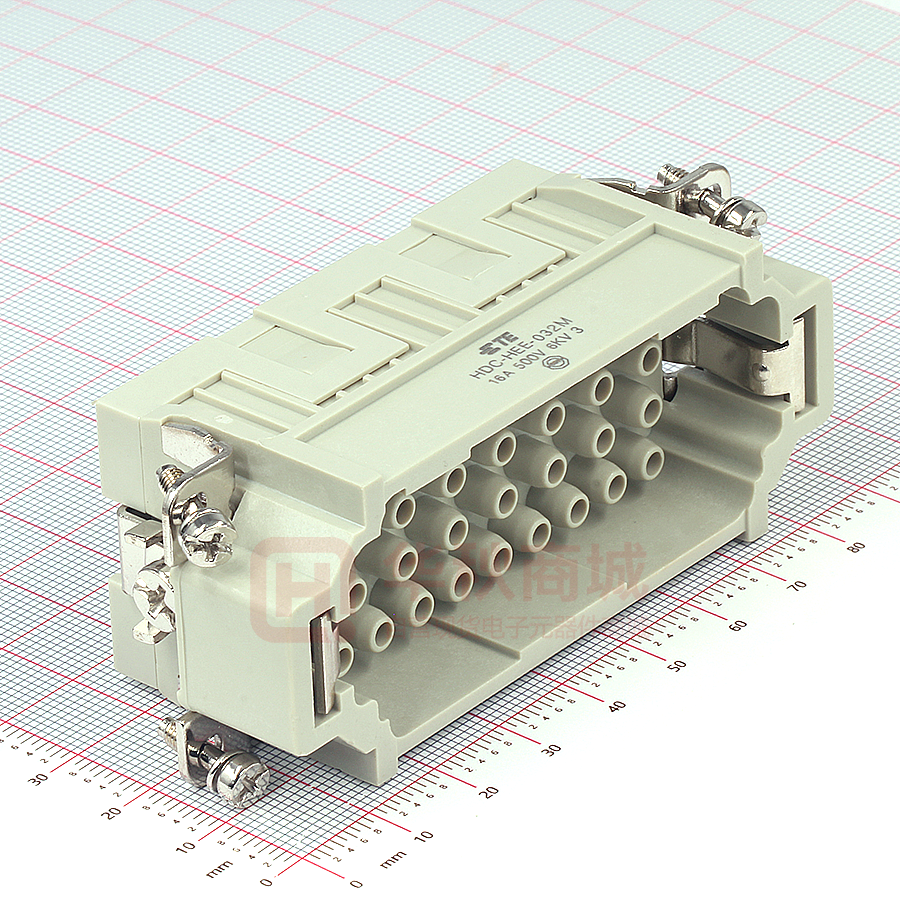

4 THIS DRAWING IS UNPUBLISHED. C 20 COPYRIGHT 2 3 1 20 RELEASED FOR PUBLICATION REVISIONS ALL RIGHTS RESERVED. BY - P DESCRIPTION LTR A2 77.5 A3 D B B1 DATE DWN APVD ECR-15-004309 18MAR2015 DW CW ECR-15-007632 25MAY2015 DW CW ECR-15-014907 14OCT2015 DL CW ECR-16-015492 09NOV2016 QY CW D 27 18.5 33.5 ( 1.2 ) C M4 SCREW,RECOMMENDED TIGHTENING TORQUE 1.2Nm M4 , 1.2Nm 4X M3 SCREW,RECOMMENDED TIGHTENING TORQUE 0.5Nm 4X M3 , 0.5Nm NOTES: 1. TECHNICAL CHARACTERISTICS: INSULATION MATERIAL: PC RATED VOLTAGE: 500 V RATED CURRENT: 16 A INSULATION RESISTANCE: >=400M ^ RATED IMPULSE VOLTAGE: 6 KV POLLUTION DEGREE: 3 FLAMMABILITY: UL94V-0 MATING CYCLES: 500 CYCLES OPERATION TEMPERATURE: -40-+125 $ C WIRE RANGE: 0.14-4 mm² (26-12 AWG) CONTACT TYPE: CRIMP CONTACT 2. CONTACT NEED TO BE ORDERED SEPARATELY. (ORDER No. REFER TO DRAWING:T20300X10XX000) : 1. : : : : : 34 PANEL CUT FOR INSERTS FOR USE WITHOUT HOODS/ HOUSINGS B 5 ( 83.9 ) 2. TYPE-1,T2050322101-000,WITH TE LOGO -1,T2050322101-000, TE LOGO 68.5 : : : : : : C PC 500V 16A >=400M ^ : 6 KV 3 UL94V-0 500 -40-+125 $ C 0.14-4 mm² (26-12 AWG) ( B . : T20300X10XX000) 14 27 36 THIS DRAWING IS A CONTROLLED DOCUMENT. TOLERANCES UNLESS OTHERWISE SPECIFIED: DIMENSIONS: A 4X 3.3 mm 77.5 MATERIAL 1470-19 (3/13) 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES - FINISH -- - DWN 11JUN2014 CHK 11JUN2014 APVD 11JUN2014 David Wang Chris Wang Xiang Xu TE Connectivity NAME PRODUCT SPEC HEE-032-M A 108-106137 APPLICATION SPEC - 114-106137 WEIGHT Customer Drawing SIZE CAGE CODE A3 00779 DRAWING NO RESTRICTED TO T2050322101000 SCALE 1:1 SHEET - 1 OF 2 REV B1 4 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 RELEASED FOR PUBLICATION BY - 2 3 1 20 REVISIONS ALL RIGHTS RESERVED. P DESCRIPTION LTR - DATE SEE SHEET 1 DWN APVD - - - D D NOTE: ALL SPEC REFER TO TYPE 1 : TYPE 1 C C TYPE-2,T2050322101-001,WITH STAINLESS STEEL SCREW,WITHOUT LOGO -2,T2050322101-001, , LOGO B B T2050322101-001 HEE-032-M T2050322101-000 HEE-032-M PART NUMBER mm TOLERANCES UNLESS OTHERWISE SPECIFIED: A MATERIAL 1470-19 (3/13) 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES - FINISH TYPE-2 -2 HEE-032 MALE INSERT HEE-032 TYPE-1 -1 PART DESCRIPTION THIS DRAWING IS A CONTROLLED DOCUMENT. DIMENSIONS: HEE-032 MALE INSERT, WITH STAINLESS STEEL SCREW,WITHOUT LOGO HEE-032 , , LOGO -- - DWN 11JUN2014 CHK 11JUN2014 APVD 11JUN2014 David Wang Chris Wang Xiang Xu TYPE TE Connectivity NAME PRODUCT SPEC HEE-032-M A 108-106137 APPLICATION SPEC - 114-106137 WEIGHT Customer Drawing SIZE CAGE CODE A3 00779 DRAWING NO RESTRICTED TO T2050322101000 SCALE 1:1 SHEET - 2 OF 2 REV B1
