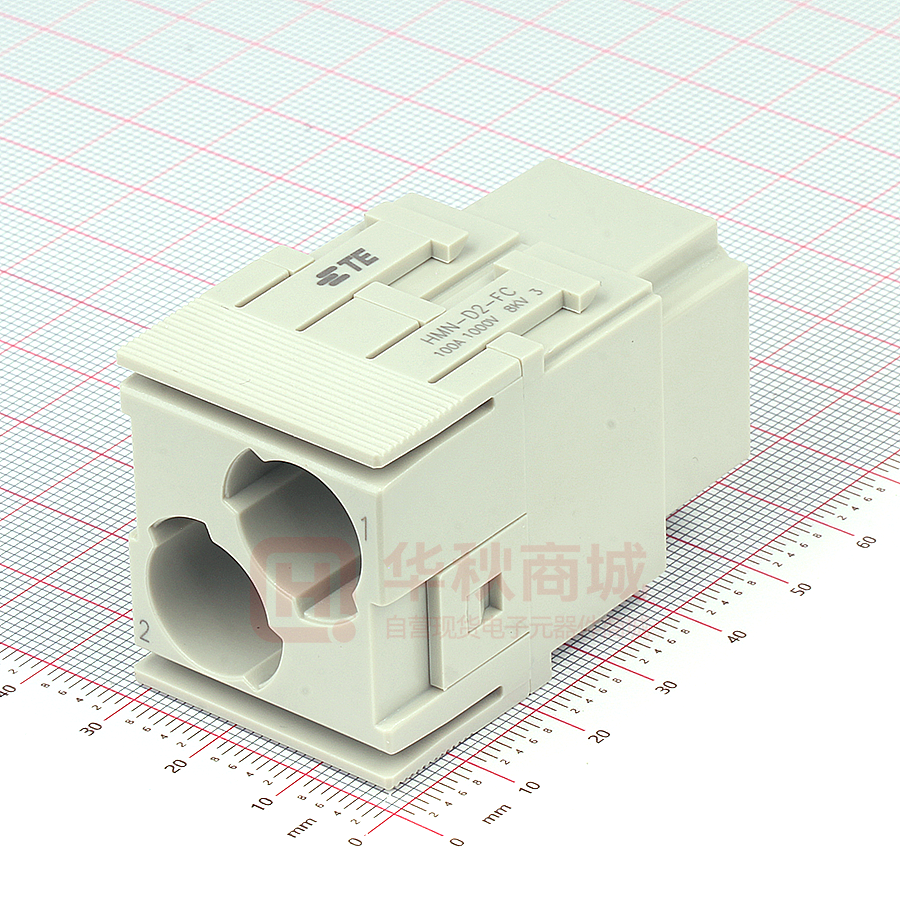

4 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 RELEASED FOR PUBLICATION BY - 2 3 1 20 REVISIONS ALL RIGHTS RESERVED. P DESCRIPTION LTR A B D C 34.4 DATE APVD INITIAL 18MAR2015 DW CW ECR-15-018270 07DEC2015 DW CW ECR-21-111798 23SEP2021 WQR CW NOTES: 1. TECHNICAL CHARACTERISTICS: INSULATION MATERIAL: PC RATED VOLTAGE: 1000V RATED CURRENT: 100A INSULATION RESISTANCE: >=400M ^ RATED IMPULSE VOLTAGE: 8KV POLLUTION DEGREE: 3 FLAMMABILITY: UL94V-0 MATING CYCLES: 500 CYCLES OPERATION TEMPERATURE: -40 $ C~+125 $ C WIRE RANGE: 10.0mm²~35.0mm² CONTACT TYPE: CRIMP CONTACT 2. CONTACT NEED TO BE ORDERED SEPARATELY. (ORDER No. REFER TO DRAWING:T20500020XX000) C 54.5 : 1. : : : : : : : : : : : : 29.3 B 2. ( THIS DRAWING IS A CONTROLLED DOCUMENT. B . : T20500020XX000) TOLERANCES UNLESS OTHERWISE SPECIFIED: DIMENSIONS: mm A MATERIAL 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES - FINISH - - DWN 18MAR2015 CHK 18MAR2015 APVD 18MAR2015 David Wang Chris.Wang Xiang.Xu T2111028201-000 DESCRIPTION PART NUMBER TE Connectivity NAME PRODUCT SPEC HMN-D2-FC A 108-137058 APPLICATION SPEC - 114-137058 WEIGHT Customer Drawing D C PC 1000V 100A >=400M ^ 8KV 3 UL94V-0 500 -40 $ C~+125 $ C 10.0mm²~35.0mm² HMN-D2-FC 1470-19 (3/13) DWN SIZE CAGE CODE A3 00779 DRAWING NO RESTRICTED TO - T2111028201000 SCALE 1:1 SHEET 1 OF 1 REV C
