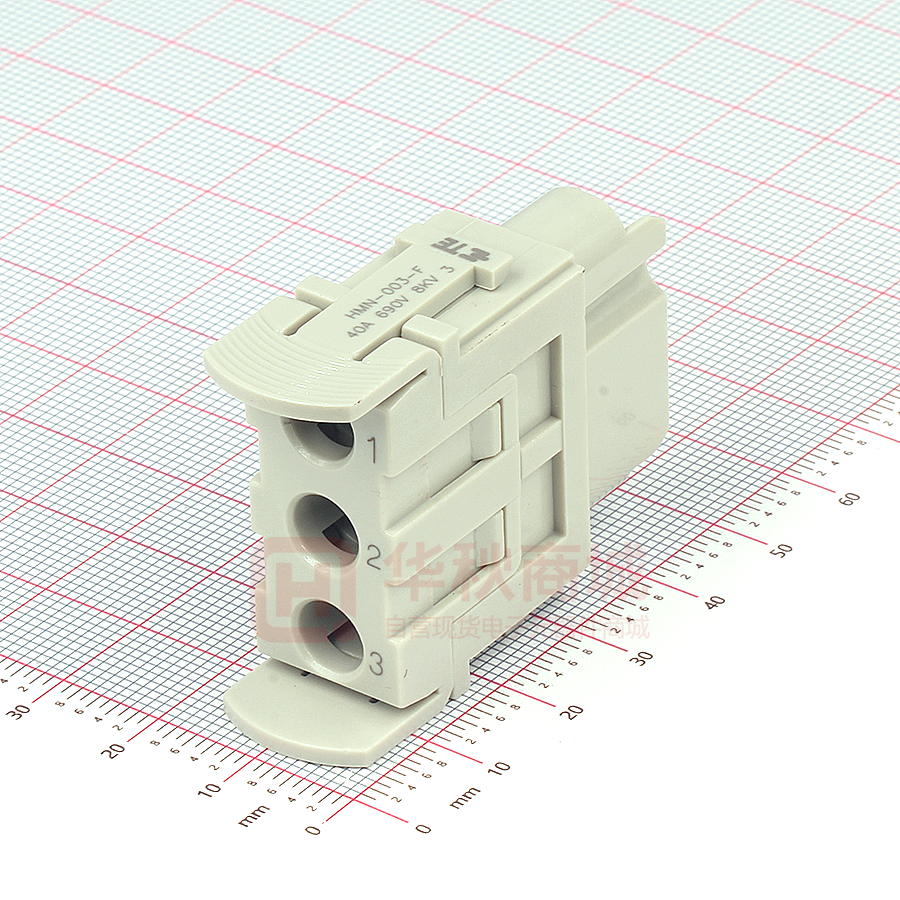

T2111032201-000

4 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 1 20 RELEASED FOR PUBLICATION BY - 2 3 REVISIONS ALL RIGHTS RESERVED. P B TYPE 1 1 D DESCRIPTION LTR B1 C D 14.6 C DWN APVD ECR-15-018270 09DEC2015 DW CW ECR-18-018657 29NOV2018 CD CW ECR-19-006822 21MAY2019 BS CW ECR-21-111798 23SEP2021 WQR CW NOTES: 1. TECHNICAL CHARACTERISTICS: INSULATION MATERIAL: PC RATED VOLTAGE: 690V RATED CURRENT: 40A INSULATION RESISTANCE: >=400M ^ RATED IMPULSE VOLTAGE: 8KV POLLUTION DEGREE: 3 FLAMMABILITY: UL94V-0 MATING CYCLES: 500 CYCLES OPERATION TEMPERATURE: -40~+125 $ C WIRE RANGE: 1~6 mm² (18~10 AWG) CONTACT TYPE: CRIMP CONTACT 2. CONTACT NEED TO BE ORDERED SEPARATELY. (ORDER No. REFER TO DRAWING:T20400X20XX000) 47.7 : 1. : : : : : : : : : : : 34.4 B 2. THIS DRAWING IS A CONTROLLED DOCUMENT. TOLERANCES UNLESS OTHERWISE SPECIFIED: DIMENSIONS: mm A MATERIAL 1470-19 (3/13) DATE 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES - FINISH - - DWN 16APR2015 CHK 16APR2015 APVD 16APR2015 David Wang Chris.Wang Xiang.Xu PRODUCT SPEC C PC 690V 40A >=400M ^ : 8KV 3 UL94V-0 500 -40~+125 $ C 1~6 mm² (18~10 AWG) ( B . : T20400X20XX000) TE Connectivity NAME HMN-003-F A 108-137118 APPLICATION SPEC - 114-137118 WEIGHT Customer Drawing D SIZE CAGE CODE A3 00779 DRAWING NO RESTRICTED TO - T2111032201000 SCALE 1:1 SHEET 1 OF 2 REV D 4 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 RELEASED FOR PUBLICATION BY - 2 3 1 20 REVISIONS ALL RIGHTS RESERVED. P - TYPE 2:NO LOGO 2: LOGO D DESCRIPTION LTR DATE SEE SHEET 1 DWN APVD - - - D 14.6 NOTES: SEE SHEET 1 : SHEET 1 C C 47.7 NO LOGO LOGO B B 34.4 T2111032201-002 HMN-003-F T2111032201-000 HMN-003-F PART NUMBER THIS DRAWING IS A CONTROLLED DOCUMENT. TOLERANCES UNLESS OTHERWISE SPECIFIED: DIMENSIONS: mm A MATERIAL 1470-19 (3/13) 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES - FINISH - - HMN-003 FEMALE MODULE INSERT HMN-003 , LOGO HMN-003 FEMALE MODULE INSERT HMN-003 PART DESCRIPTION DWN 16APR2015 CHK 16APR2015 APVD 16APR2015 David Wang Chris.Wang Xiang.Xu PRODUCT SPEC ,NO LOGO TYPE2 2 TYPE1 1 TYPE TE Connectivity NAME HMN-003-F A 108-137118 APPLICATION SPEC - 114-137118 WEIGHT Customer Drawing SIZE CAGE CODE A3 00779 DRAWING NO RESTRICTED TO - T2111032201000 SCALE 3:2 SHEET 2 OF 2 REV D
