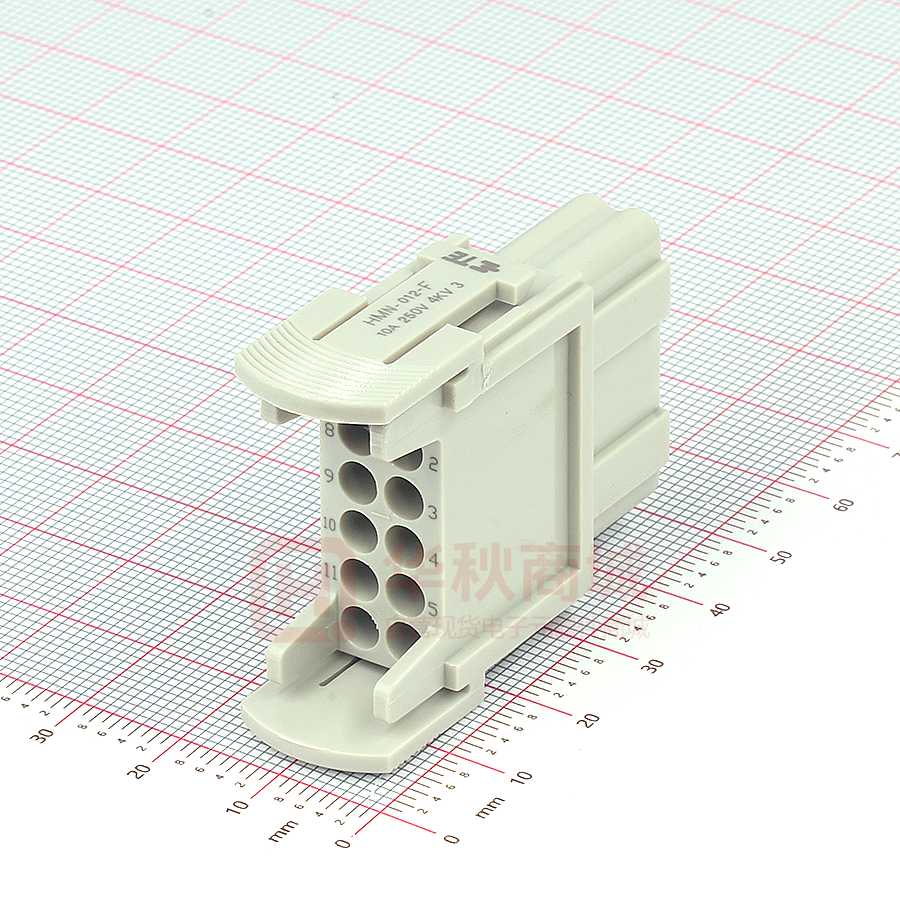

4 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 RELEASED FOR PUBLICATION BY - 2 3 1 20 REVISIONS ALL RIGHTS RESERVED. P DESCRIPTION LTR A B D B1 C 46 : 1. : : : : : : : : : : : T2111122201-000 SHOWN, LOGO, , 34.4 2. B 14APR2015 DW CW ECR-15-018270 09DEC2015 DW CW ECR-16-006849 13MAY2016 RL CW ECR-21-111798 28SEP2021 WQR CW ( TOLERANCES UNLESS OTHERWISE SPECIFIED: DIMENSIONS: 1470-19 (3/13) mm MATERIAL 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES - FINISH - - DWN 14APR2015 CHK 14APR2015 APVD 14APR2015 David Wang Chris.Wang Xiang.Xu C . : T20200X20XX000) B HMN-012-F WITHOUT LOGO HMN-012 LOGO, HMN-012-F WITH LOGO HMN-012 PART NUMBER THIS DRAWING IS A CONTROLLED DOCUMENT. PART DESCRIPTION TE Connectivity NAME PRODUCT SPEC HMN-012-F A 108-137121 APPLICATION SPEC - 114-137121 WEIGHT Customer Drawing D PC 250V 10A >=400M ^ : 4KV 3 UL94V-0 500 -40~+125 $ C 0.14~2.5 mm² (26~14 AWG) T2111122201-000 A APVD INITIAL T2111122201-001 T2111122201-001 SHOWN,ALL DIMENSIONS ARE SAME AS T2111122201-000,EXCEPT WITHOUT LOGO, TYPE DESCRIPTION, TUV AND CUL MARK LOGO, DWN NOTES: 1. TECHNICAL CHARACTERISTICS: INSULATION MATERIAL: PC RATED VOLTAGE: 250V RATED CURRENT: 10A INSULATION RESISTANCE: >=400M ^ RATED IMPULSE VOLTAGE: 4KV POLLUTION DEGREE: 3 FLAMMABILITY: UL94V-0 MATING CYCLES: 500 CYCLES OPERATION TEMPERATURE: -40~+125 $ C WIRE RANGE: 0.14~2.5 mm² (26~14 AWG) CONTACT TYPE: CRIMP CONTACT 2. CONTACT NEED TO BE ORDERED SEPARATELY. (ORDER No. REFER TO DRAWING: T20200X20XX000) 14.6 C DATE SIZE CAGE CODE A3 00779 DRAWING NO RESTRICTED TO - T2111122201000 SCALE 1:1 SHEET 1 OF 1 REV C
