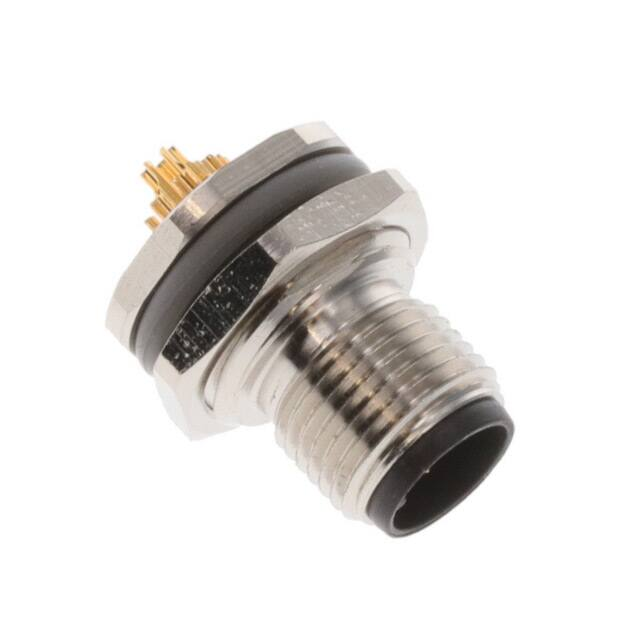

M12 PCB/PANEL CONNECTORS 8/12PIN M12 PCB/Panel Connectors 8/12Pin TE Connectivity extends its M12 connector portfolio with 8 and 12 positions for direct mounting onto PCBs and panels to complement field-installable connector and cable assembly solutions. The new plug-in PCB connectors are easy to install and help to increase production efficiency and decrease installation cost for installers in industrial automation, machinery, industrial ethernet, sensors, and other areas where IP67 protection is needed. The high pin density on the 12-pin connector, in particular, provides customers with a very compact design. Adding this product series to our portfolio allows us to better serve our customers and accommodate their needs for higher signal and data transmission in harsh industrial environments. BENEFITS ELECTRICAL • Compact design with high density connection • Quick and reliable connection for PCB and panel mount • Voltage: 30V(AC/DC) • Rated Current: - 2.0A for 8 pin - 1.5A for 12 pin KEY FEATURES MATERIALS • Available for 8 & 12 positions • IP67 with dust-tightness and water-proof for at least 1m • M12 Body: Copper Alloy • M12 Housing: Nylon • Contact: Copper Alloy • Plug-&-Play mating for easy and fast installation APPLICATIONS • • • • • Machinery Automation Integration Vision System Semiconductor manufacturing Factory automation machines MECHANICAL • Seal Rating: IP67 (When fully mated) • Operating Temperature: -40 to 85°C • Durability: 100 cycles INDUSTRIAL /// M12 PCB/PANEL CONNECTORS APPLICATIONS & STANDARDS • • • • Product Specification: 108-106140 Application Specification: 114-137144 IEC 61076-2-101 UL 2238 M12 PCB/Panel Connectors 8/12Pin PRODUCT OFFERINGS M12 A-coding Solder Wire TEP Poles Mounting Type 8 Rear Male T4132012081-000 8 Front Male T4130012121-000 12 Rear Male T4132012121-000 12 Front Male T4130012081-000 TEP Poles Mounting Type T4131012081-000 8 Rear Female T4133012081-000 8 Front Female T4131012121-000 12 Rear Female T4133012121-000 12 Front Female Poles Mounting Type 8 Rear Male T4142012081-000 8 Front Male T4140012121-000 12 Rear Male T4142012121-000 12 Front Male Poles Mounting Type M12 A-coding Solder PCB TEP T4140012081-000 TEP T4141012081-000 8 Rear Female T4143012081-000 8 Front Female T4141012121-000 12 Rear Female T4143012121-000 12 Front Female M12 A-coding 0.2m Wire TEP Poles Mounting Type T4171020008-001 8 Rear Male T4171220008-001 8 Front Male T4171030012-001 12 Rear Male T4171230012-001 12 Front Male Poles Mounting Type TEP T4171120008-001 8 Rear Female T4171320008-001 8 Front Female T4171130012-001 12 Rear Female T4171330012-001 12 Front Female te.com © 2018 TE Connectivity. All Rights Reserved. TE Connectivity, TE Connectivity (logo) and Every Connection Counts are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. While TE has made every reasonable effort to ensure the accuracy of the information in this brochure, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions in this catalog are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications. 1-1773955-5  SL  07/18   Tangence INDUSTRIAL /// M12 PCB/PANEL CONNECTORS
