T9GS1L24-24

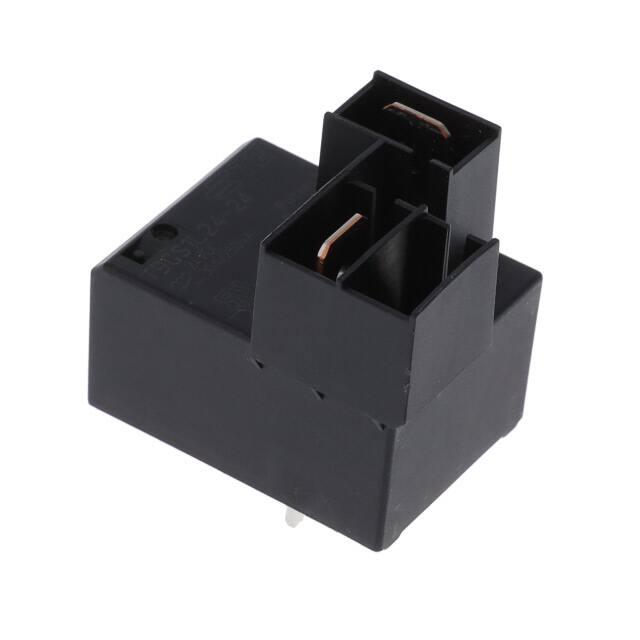

T9GS1L24-24 Power Relays, Standard, Monostable, DC, 900 mW Coil Power Rating DC, 640 Ω Coil Resistance, UL Coil Insulation Class F, Potter & Brumfield T9G T9GS1L24-24  ACTIVE Potter & Brumfield | Potter & Brumfield T9G TE Internal #: 1558676-7 Power Relays, Standard, Monostable, DC, 900 mW Coil Power Rating DC, 640 Ω Coil Resistance, UL Coil Insulation Class F, Potter & Brumfield T9G View on TE.com > Relays, Contactors & Switches > Relays > Power Relays > PCB Power Relay: 30 amp, Monostable DC Power Relay Type: Standard Coil Magnetic System: Monostable, DC Coil Power Rating DC: 900 mW Coil Resistance: 640 Ω Coil Special Features: UL Coil Insulation Class F All PCB Power Relay: 30 amp, Monostable DC (108) Features Product Type Features Power Relay Type Standard Electrical Characteristics  Coil Power Rating Class 800 – 1000 mW Insulation Initial Dielectric Between Open Contacts 1500 Vrms Insulation Initial Dielectric Between Contacts & Coil 4000 Vrms Coil Magnetic System Monostable, DC Coil Power Rating DC 900 mW Coil Resistance 640 Ω Coil Special Features UL Coil Insulation Class F Coil Voltage Rating 24 VDC Contact Switching Load (Min) 100mA @ 12V Contact Switching Voltage (Max) 480 VAC Contact Voltage Rating 250 VAC For support call+1 800 522 6752 01/02/2024 09:01AM | Page 1 T9GS1L24-24 Power Relays, Standard, Monostable, DC, 900 mW Coil Power Rating DC, 640 Ω Coil Resistance, UL Coil Insulation Class F, Potter & Brumfield T9G Contact Voltage Rating 250 VAC Body Features Product Weight 23 g[.812 oz] Contact Features Contact Arrangement 1 Form A (NO) Contact Current Class 20 – 30 A Contact Current Rating (Max) 30 A Contact Material AgSnO Contact Number of Poles 1 Relay Terminal Type PCB-THT, Quick Connect Termination Features Relay Termination Type .25 x .032 Quick Connect Terminals, Printed Circuit Terminals Mechanical Attachment Relay Mounting Type Printed Circuit Board Dimensions Length Class (Mechanical) 30 – 35 mm Height Class (Mechanical) 25 – 30 mm Dimensions (L x W x H) (Approximate) 32 x 25 x 27 mm[1.260 x .984 x 1.063 in] Width Class (Mechanical) 20 – 25 mm Product Width 25 mm[.984 in] Product Length 32 mm Product Height 27 mm Usage Conditions Environmental Ambient Temperature (Max) 105 °C, 85 °C[176 °F][221 °F] Operating Temperature Range -40 – 105 °C Packaging Features Packaging Method Carton & Tube Product Compliance For compliance documentation, visit the product page on TE.com>  EU RoHS Directive 2011/65/EU Compliant EU ELV Directive 2000/53/EC Compliant China RoHS 2 Directive MIIT Order No 32, 2016 No Restricted Materials Above Threshold 01/02/2024 09:01AM | Page 2 For support call+1 800 522 6752 T9GS1L24-24 Power Relays, Standard, Monostable, DC, 900 mW Coil Power Rating DC, 640 Ω Coil Resistance, UL Coil Insulation Class F, Potter & Brumfield T9G China RoHS 2 Directive MIIT Order No 32, 2016 No Restricted Materials Above Threshold EU REACH Regulation (EC) No. 1907/2006 Current ECHA Candidate List: JUNE 2023 (235) Candidate List Declared Against: JUNE 2023 (235) Does not contain REACH SVHC Halogen Content Not Low Halogen - contains Br or Cl > 900 ppm. Solder Process Capability Wave solder capable to 260°C Product Compliance Disclaimer This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that TE has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach Compatible Parts TE Part # 1969657-1 TE Part # 2238171-3 TE Part # 1969656-1 TE Part # 1969900-1 250 FASTON HSG.,FLAG,REC.,1 POS, BLACK 250 FASTON,FLAG,REC.,22-12 AWG, TPBR 250 FASTON HSG.,FLAG,REC.,1 POS, NATRUAL 250 FASTON HSG.,FLAG,REC.,2 POS, NATRUAL TE Part # 2238270-1 HSG, RECEP, 250 FASTON FLAG, 3P, T9G Also in the Series Potter & Brumfield T9G  For support call+1 800 522 6752 01/02/2024 09:01AM | Page 3 T9GS1L24-24 Power Relays, Standard, Monostable, DC, 900 mW Coil Power Rating DC, 640 Ω Coil Resistance, UL Coil Insulation Class F, Potter & Brumfield T9G Power Relays(108) Customers Also Bought TE Part #4-1393210-0 TE Part #1558661-7 TE Part #2-1393237-7 TE Part #2-1393194-7 T9AS5D12-9 PCB Power Relay: 30 amp, Monostable DC RT334024F T77V1D3-24 TE Part #2-1393194-1 TE Part #1-1393194-9 TE Part #DBA6927C1-FSMAM T77V1D10-24 T77V1D10-12 DIPOL,DBA,SMAM,BLK,90D 6982700Mhz,2dBi, Documents CAD Files 3D PDF 3D Customer View Model ENG_CVM_CVM_1558676-7_B.2d_dxf.zip English Customer View Model ENG_CVM_CVM_1558676-7_B.3d_igs.zip English Customer View Model ENG_CVM_CVM_1558676-7_B.3d_stp.zip English By downloading the CAD file I accept and agree to the Terms and Conditions of use. Datasheets & Catalog Pages PB 30A PCB Relay T9G Series English  T9G Data Sheet For support call+1 800 522 6752 01/02/2024 09:01AM | Page 4 T9GS1L24-24 Power Relays, Standard, Monostable, DC, 900 mW Coil Power Rating DC, 640 Ω Coil Resistance, UL Coil Insulation Class F, Potter & Brumfield T9G English T9G Data Sheet English Agency Approvals CQC_CERT_18002196927_C1 English  For support call+1 800 522 6752 01/02/2024 09:01AM | Page 5
