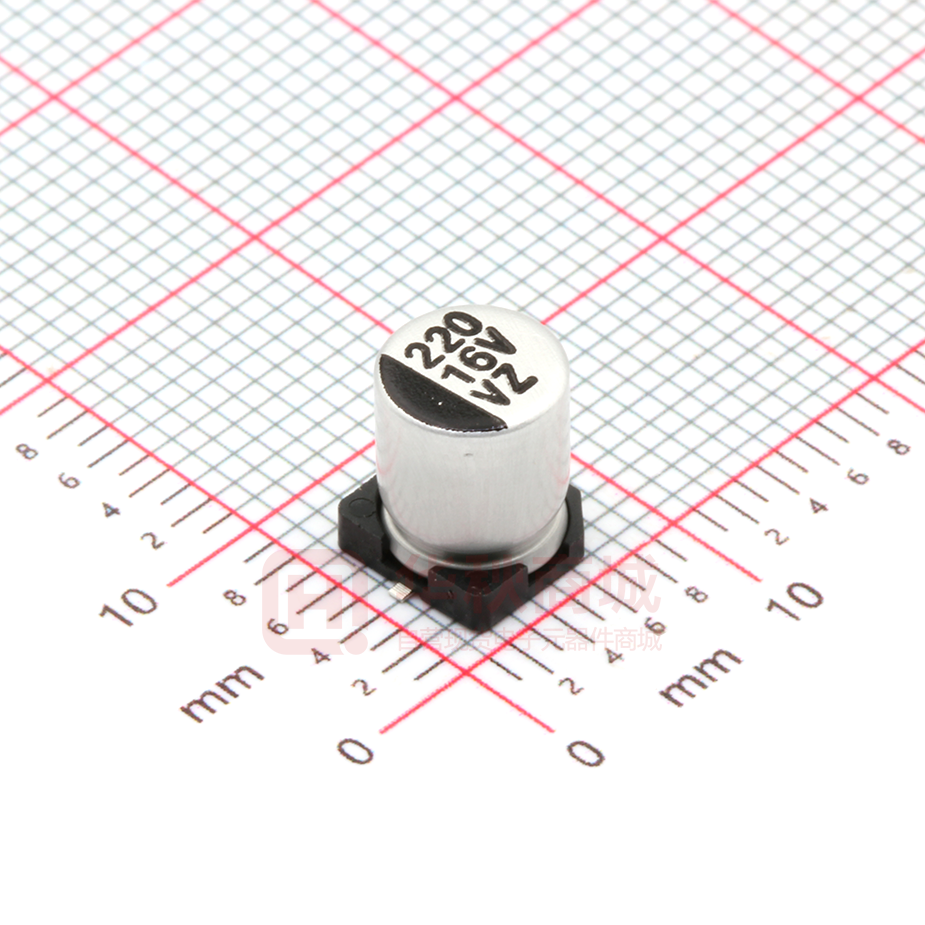

VZ1C221ME077000CE0

Chang ® 铝电解电容器 Aluminum Electrolytic Capacitors VZ 型片式铝电解电容 VZ Series Chip Type Aluminum Electrolytic Capacitors 特点       Features 低阻抗。Low impedance. 适用于再流焊。Reflow soldering is available. 适用于高密度表面组装。vailable for high density surface mounting. 工作温度范围宽（-55℃ ~ +105℃）Operating over wide temperature range. ROHS 指令对应完毕。Adapted to the ROHS directive. 主要技术性能 Specifications 项目 Items 工作温度范围 -55℃ ~+105℃ Operating Temperature Range 额定电压范围 6.3V ~ 35V Rated Voltage Range 标称电容量范围 1 ~ 220μF Nominal Capacitance Range 标称电容量允许偏差 ±20%（20℃，120Hz） Nominal Capacitance Tolerance 漏电流 Leakage Current Characteristics 特性 I≤0.01CRVR or 3(μA)，取较大者（2 分钟） CR：标称电容量（μF） UR：额定电压（V） I≤0.01CRVR or 3(μA) Whichever is greater(at 20℃, after 2 minutes) CR: Nominal Capacitance (μF) 损耗角正切（tgδ） Dissipation Factor (Max) 20℃, 120Hz UR: Rated voltages (V) UR (V) 6.3 10 16 25 35 tgδ 0.22 0.19 0.16 0.14 0.12 +105℃施加额定电压 1000 小时后，电容器应满足以下要求： After 1000 hours’ application of rated voltage at 105℃, the capacitor shall meet the following requirement: 电容量变化率 ±20%初始值以内 耐久性 Capacitance Change Within ±20% of the initial value Load Life 损耗角正切 ≤ 200%初始规定值 Dissipation Factor Not more than 200% of the initial specified value 漏电流 ≤ 初始规定值 Leakage Current Not more than the initial specified value 高温贮存 +105℃贮存 1000 小时后，电容器应满足以上耐久性要求 Shelf Life After storage for 1000 hours at +105℃, the capacitors shall meet the requirement of load life above 低温特性 Low Temperature Stability 阻抗比 Impedance Ratio (120Hz) UR (V) 6.3 10 16 25 35 Z(-25℃)/Z(+20℃) 2 2 2 2 2 Z(-40℃)/Z(+20℃) 4 4 3 3 3 在 250℃的条件下，电容器在热板上保持 30 秒，然后从热板上取出电容器，让其在室温下恢复，电容器应满足以下要求： The capacitors shall be kept on the hot plate maintained at 250℃ for 30 seconds. After removing from the hot plate and restored at room temperature, they meet the following requirement. 耐焊接热 Resistance to Soldering Heat 电容量变化率 ±10%初始值以内 Capacitance Change Within ±10% of the initial value 损耗角正切（tgδ） ≤初始规定值 Dissipation Factor Not more than the initial specified value 漏电流 ≤ 初始规定值 Leakage Current Not more than the initial specified value CHANGZHOU HUAWEI ELECTRONICS CO.,LTD. Chang ® 铝电解电容器 Dimensions Voltage 电压 Type 型号 Plastic Platform 塑料底盘 Capacitance 电容量 Positive 正极 0.3MAX A±0.2 A±0.2 H (L±0.3)* 4 × 5.4 1.8 4.3 4.3 1.0 5.4 A B C E L H Negative 负极 L+0.2 -0.1 * Apply to Ф6.3×7.7 适用于 (mm) E B±0.2 10 16V V Z D±0.5 C±0.2 0.5MAX 尺寸图  Aluminum Electrolytic Capacitors 5 × 5.4 6.3 × 5.4 2.1 2.4 5.3 6.6 5.3 6.6 1.3 2.2 5.4 5.4 0.5 ~ 0.8 6.3 × 7.7 2.4 6.6 6.6 2.2 7.7 标称电容量、额定电压、额定纹波电流与外形尺寸对应表 Nominal capacitance, rated voltage, rated ripple current and case size table V 6.3 Impedance Ω I~ Impedance Ω I~ Impedance Ω I~ Impedance I~ Ω mA I~ 1.0 4×5.4 5.0 50 1.5 4×5.4 5.0 50 2.2 4×5.4 5.0 50 3.3 4×5.4 5.0 50 mA D×L mm 35 mA mA D×L mm 25 Impedance Ω mA D×L mm 16 D×L mm μF D×L mm 10 4.7 4×5.4 5.0 50 4×5.4 5.0 50 6.8 4×5.4 5.0 50 5×5.4 2.6 80 10 4×5.4 5.0 50 5×5.4 2.6 80 5×5.4 2.6 80 15 5×5.4 2.6 80 6.3×5.4 1.3 115 6.3×5.4 1.3 115 22 4×5.4 5.0 50 5×5.4 2.6 80 5×5.4 2.6 80 6.3×5.4 1.3 115 6.3×5.4 1.3 115 33 5×5.4 2.6 80 5×5.4 2.6 80 6.3×5.4 1.3 115 6.3×5.4 1.3 115 6.3×7.7 0.8 150 47 5×5.4 2.6 80 6.3×5.4 1.3 115 6.3×5.4 1.3 115 6.3×7.7 0.8 150 6.3×7.7 0.8 150 68 6.3×5.4 1.3 115 6.3×5.4 1.3 115 6.3×7.7 0.8 150 6.3×7.7 0.8 150 100 6.3×5.4 1.3 115 6.3×7.7 0.8 150 6.3×7.7 0.8 150 150 6.3×7.7 0.8 150 6.3×7.7 0.8 150 220 6.3×7.7 0.8 150 I~=Rated ripple current (mA) (105℃, 100KHz) I~=额定纹波电流（mA）（105℃，100KHz） Low impedance (20℃ 100KHz)  额定纹波电流的频率系数 Frequency coefficient of ripple current Frequency 频率 50Hz 120Hz 300Hz 1KHz 10KHz~100Hz Coefficient 系数 0.64 0.50 0.64 0.83 1.00 CHANGZHOU HUAWEI ELECTRONICS CO.,LTD.
