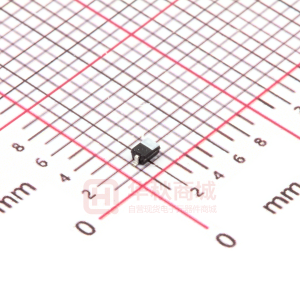

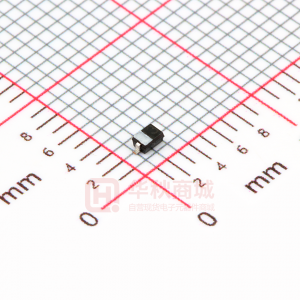

BAT60A

BAT60A... Silicon Schottky Diode • High current rectifier Schottky diode with extreme low VF drop (typ. 0.12V at IF = 10mA) • For power supply applications • For clamping and protection in low voltage applications • For detection and step-up-conversion • Pb-free (RoHS compliant) package 1) • Qualified according AEC Q101 BAT60A  ESD (Electrostatic discharge) sensitive device, observe handling precaution! Type BAT60A Parameter Diode reverse voltage2) Forward current Non-repetitive peak surge forward current (t ≤ 10ms) Total power dissipation TS ≤ 28°C Junction temperature Operating temperature range Storage temperature 1Pb-containing 2For Package SOD323 Configuration single Symbol VR IF I FSM Ptot Tj T op T stg Value 10 3 5 1350 150 -55 ... 85 -55 ... 150 Marking white/3 Unit V A Maximum Ratings at TA = 25°C, unless otherwise specified mW °C package may be available upon special request TA > 25 °C the derating of VR has to be considered. Please refer to curve Permissible reverse voltage. 1 2007-04-19 BAT60A... Thermal Resistance Parameter Junction - soldering point 1) Symbol RthJS Value ≤ 90 Unit K/W Electrical Characteristics at TA = 25°C, unless otherwise specified Parameter Symbol Values min. typ. max. DC Characteristics Reverse current2) IR VR = 5 V VR = 8 V VR = 5 V, TA = 80 °C Forward voltage2) IF = 10 mA IF = 100 mA IF = 1000 mA VF 0.1 0.15 0.22 0.12 0.2 0.3 0.15 0.23 0.37 0.3 0.6 18 1 2.6 - Unit mA V AC Characteristics Diode capacitance VR = 5 V, f = 1 MHz 1For CT - 20 35 pF calculation of RthJA please refer to Application Note Thermal Resistance test: tp = 300 µs; D = 0.01 2Pulsed 2 2007-04-19 BAT60A... Reverse current IR = ƒ(VR) TA = Parameter 10 -1 A TA=85°C Forward current IF = ƒ (VF) TA = Parameter 10 0 A 10 -2 10 -1 10 -3 IR TA=25°C 10 -2 IF 10 -4 10 -3 10 -5 TA= -40°C -40°C 25°C 85°C 125°C 10 -6 10 -4 10 -7 0 2 4 6 8 V 11 10 -5 0 0.1 0.2 0.3 0.4 0.5 0.6 V 0.8 VR VF Permissible Reverse voltage VR = ƒ (TA) tp = Parameter; duty cycle < 0.01 Device mounted on PCB with Rth = 160 K/W 12 V Forward current IF = ƒ (T S) 3500 mA 10 9 2500 VR 8 7 6 5 4 tp=300µs IF 2000 tp=100ms 1500 1000 3 2 1 0 0 20 40 60 80 100 120 °C 150 0 0 15 30 45 60 75 90 105 120 °C 150 DC 500 TA TS 3 2007-04-19 BAT60A... Permissible Puls Load R thJS = ƒ (tp) Permissible Pulse Load IFmax / I FDC = ƒ (t p) 10 2 10 2 K/W I Fmax/IFDC - 10 1 10 1 10 0 0.5 0.2 0.1 0.05 0.02 0.01 0.005 D=0 D=0 0.005 0.01 0.02 0.05 0.1 0.2 0.5 R thJS 10 -1 -6 10 10 -5 10 -4 10 -3 10 -2 10 -1 s 10 1 10 0 -6 10 10 -5 10 -4 10 -3 10 -2 s 10 0 tp tp 4 2007-04-19 Package SOD323 BAT60A... Package Outline 0.9 +0.2 -0.1 +0.2 1.25 -0.1 0 ±0.05 A 1.7 +0.2 -0.1 +0.05 0.3 -0.2 2 Cathode marking 1 0.3 +0.1 -0.05 0.25 M A 0.45 ±0.15 2.5 ±0.2 0.15 +0.1 -0.06 Foot Print 0.6 Marking Layout (Example) 0.8 1.7 0.8 BAR63-03W Type code Cathode marking Laser marking Standard Packing Reel ø180 mm = 3.000 Pieces/Reel Reel ø330 mm = 10.000 Pieces/Reel 4 0.2 2 2.9 8 Cathode marking 0.65 1.35 1 5 2007-04-19 BAT60A... Edition 2006-02-01 Published by Infineon Technologies AG 81726 München, Germany © Infineon Technologies AG 2007. All Rights Reserved. Attention please! The information given in this dokument shall in no event be regarded as a guarantee of conditions or characteristics (“Beschaffenheitsgarantie”). With respect to any examples or hints given herein, any typical values stated herein and/or any information regarding the application of the device, Infineon Technologies hereby disclaims any and all warranties and liabilities of any kind, including without limitation warranties of non-infringement of intellectual property rights of any third party. Information For further information on technology, delivery terms and conditions and prices please contact your nearest Infineon Technologies Office ( www.infineon.com ). Warnings Due to technical requirements components may contain dangerous substances. For information on the types in question please contact your nearest Infineon Technologies Office. Infineon Technologies Components may only be used in life-support devices or systems with the express written approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure of that life-support device or system, or to affect the safety or effectiveness of that device or system. Life support devices or systems are intended to be implanted in the human body, or to support and/or maintain and sustain and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may be endangered. 6 2007-04-19
