EN16-H20AF15

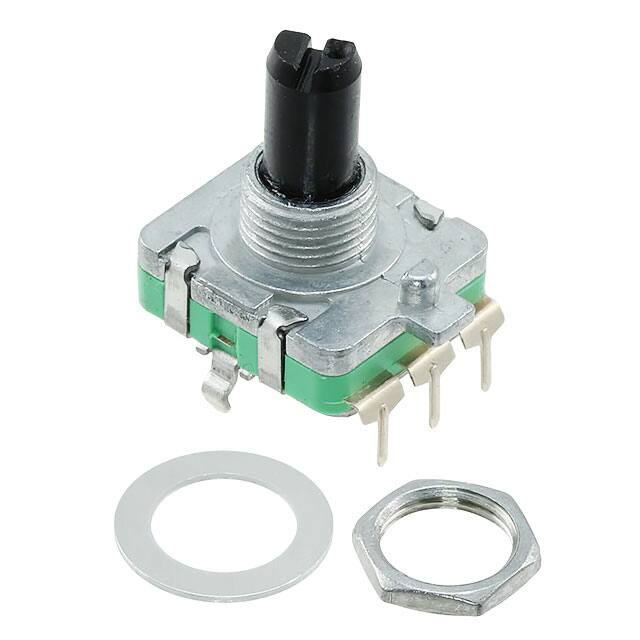

Rotary Encoder Model EN16 Series Features: • 16 mm • 2 bits gray code • Incremental/contacting type • Metal bushing/shaft Model Styles Available Electrical Mechanical Environmental General Note TT Electronics reserves the right to make changes in product specification without notice or liability. All information is subject to TT Electronics’ own data and is considered accurate at time of going to print. © TT electronics plc TT Electronics | BI Technologies 413 Rood Rd, Suite 7 Calexico, CA 92231 Ph: +1 714 447 2345 www.ttelectronics.com/bi-technologies Issue B 4/2019 Page 1 Rotary Encoder Model EN16 Series Ordering Circuit Diagram General Note TT Electronics reserves the right to make changes in product specification without notice or liability. All information is subject to TT Electronics’ own data and is considered accurate at time of going to print. © TT electronics plc TT Electronics | BI Technologies 413 Rood Rd, Suite 7 Calexico, CA 92231 Ph: +1 714 447 2345 www.ttelectronics.com/bi-technologies Issue B 04/2019 Page 2 Rotary Encoder Model EN16 Series Outline Drawings General Note TT Electronics reserves the right to make changes in product specification without notice or liability. All information is subject to TT Electronics’ own data and is considered accurate at time of going to print. © TT electronics plc TT Electronics | BI Technologies 413 Rood Rd, Suite 7 Calexico, CA 92231 Ph: +1 714 447 2345 www.ttelectronics.com/bi-technologies Issue B 04/2019 Page 3
