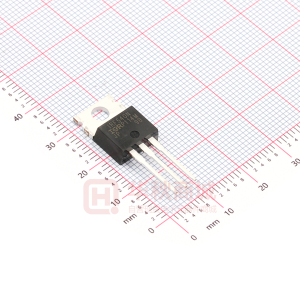

IRF540NPBF

PD - 94812 IRF540NPbF HEXFET® Power MOSFET Advanced Process Technology Ultra Low On-Resistance Dynamic dv/dt Rating 175°C Operating Temperature Fast Switching Fully Avalanche Rated Lead-Free Advanced HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry. D VDSS = 100V RDS(on) = 44mΩ G S ID = 33A Description TO-220AB Absolute Maximum Ratings Parameter ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C VGS IAR EAR dv/dt TJ TSTG Continuous Drain Current, VGS @ 10V Continuous Drain Current, VGS @ 10V Pulsed Drain Current Power Dissipation Linear Derating Factor Gate-to-Source Voltage Avalanche Current Repetitive Avalanche Energy Peak Diode Recovery dv/dt Operating Junction and Storage Temperature Range Soldering Temperature, for 10 seconds Mounting torque, 6-32 or M3 srew Max. 33 23 110 130 0.87 ± 20 16 13 7.0 -55 to + 175 300 (1.6mm from case ) 10 lbf•in (1.1N•m) Units A W W/°C V A mJ V/ns °C Thermal Resistance Parameter RθJC RθCS RθJA Junction-to-Case Case-to-Sink, Flat, Greased Surface Junction-to-Ambient Typ. ––– 0.50 ––– Max. 1.15 ––– 62 Units °C/W www.irf.com 1 11/3/03 IRF540NPbF Electrical Characteristics @ TJ = 25°C (unless otherwise specified) V(BR)DSS ∆V(BR)DSS/∆TJ RDS(on) VGS(th) gfs IDSS IGSS Qg Qgs Qgd td(on) tr td(off) tf LD LS Ciss Coss Crss EAS Parameter Drain-to-Source Breakdown Voltage Breakdown Voltage Temp. Coefficient Static Drain-to-Source On-Resistance Gate Threshold Voltage Forward Transconductance Drain-to-Source Leakage Current Gate-to-Source Forward Leakage Gate-to-Source Reverse Leakage Total Gate Charge Gate-to-Source Charge Gate-to-Drain ("Miller") Charge Turn-On Delay Time Rise Time Turn-Off Delay Time Fall Time Internal Drain Inductance Internal Source Inductance Input Capacitance Output Capacitance Reverse Transfer Capacitance Single Pulse Avalanche Energy Min. Typ. Max. Units Conditions 100 ––– ––– V VGS = 0V, ID = 250µA ––– 0.12 ––– V/°C Reference to 25°C, I D = 1mA ––– ––– 44 mΩ VGS = 10V, ID = 16A 2.0 ––– 4.0 V VDS = VGS, ID = 250µA 21 ––– ––– S VDS = 50V, ID = 16A ––– ––– 25 VDS = 100V, VGS = 0V µA ––– ––– 250 VDS = 80V, VGS = 0V, TJ = 150°C ––– ––– 100 VGS = 20V nA ––– ––– -100 VGS = -20V ––– ––– 71 ID = 16A ––– ––– 14 nC VDS = 80V ––– ––– 21 VGS = 10V, See Fig. 6 and 13 ––– 11 ––– VDD = 50V ––– 35 ––– ID = 16A ns ––– 39 ––– RG = 5.1Ω ––– 35 ––– VGS = 10V, See Fig. 10 Between lead, 4.5 ––– ––– 6mm (0.25in.) nH G from package ––– 7.5 ––– and center of die contact ––– 1960 ––– VGS = 0V ––– 250 ––– VDS = 25V ––– 40 ––– pF ƒ = 1.0MHz, See Fig. 5 ––– 700 185 mJ IAS = 16A, L = 1.5mH D S Source-Drain Ratings and Characteristics IS ISM VSD trr Qrr ton Notes: Parameter Continuous Source Current (Body Diode) Pulsed Source Current (Body Diode) Diode Forward Voltage Reverse Recovery Time Reverse Recovery Charge Forward Turn-On Time Min. Typ. Max. Units Conditions D MOSFET symbol 33 ––– ––– showing the A G integral reverse ––– ––– 110 S p-n junction diode. ––– ––– 1.2 V TJ = 25°C, IS = 16A, VGS = 0V ––– 115 170 ns TJ = 25°C, IF = 16A ––– 505 760 nC di/dt = 100A/µs Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD) Repetitive rating; pulse width limited by max. junction temperature. (See fig. 11) Starting TJ = 25°C, L =1.5mH RG = 25Ω, IAS = 16A. (See Figure 12) ISD ≤ 16A, di/dt ≤ 340A/µs, VDD ≤ V(BR)DSS, TJ ≤ 175°C Pulse width ≤ 400µs; duty cycle ≤ 2%. This is a typical value at device destruction and represents operation outside rated limits. This is a calculated value limited to TJ = 175°C . 2 www.irf.com IRF540NPbF 1000 VGS 15V 10V 8.0V 7.0V 6.0V 5.5V 5.0V BOTTOM 4.5V TOP 1000 I D , Drain-to-Source Current (A) 100 I D , Drain-to-Source Current (A) 100 VGS 15V 10V 8.0V 7.0V 6.0V 5.5V 5.0V BOTTOM 4.5V TOP 4.5V 10 10 4.5V 1 0.1 20µs PULSE WIDTH TJ = 25 °C 1 10 100 1 0.1 20µs PULSE WIDTH TJ = 175 °C 1 10 100 VDS , Drain-to-Source Voltage (V) VDS , Drain-to-Source Voltage (V) Fig 1. Typical Output Characteristics Fig 2. Typical Output Characteristics 1000 3.5 RDS(on) , Drain-to-Source On Resistance (Normalized) ID = 33A I D , Drain-to-Source Current (A) 3.0 2.5 2.0 1.5 1.0 0.5 0.0 -60 -40 -20 0 100 TJ = 25 ° C TJ = 175 ° C 10 4.0 V DS = 50V 20µs PULSE WIDTH 5.0 6.0 7.0 8.0 9.0 VGS = 10V 20 40 60 80 100 120 140 160 180 VGS , Gate-to-Source Voltage (V) TJ , Junction Temperature ( °C) Fig 3. Typical Transfer Characteristics Fig 4. Normalized On-Resistance Vs. Temperature www.irf.com 3 IRF540NPbF 3000 2500 VGS , Gate-to-Source Voltage (V) VGS = 0V, f = 1MHz Ciss = Cgs + Cgd , Cds SHORTED Crss = Cgd Coss = Cds + Cgd 20 ID = 16A VDS = 80V VDS = 50V VDS = 20V 16 C, Capacitance (pF) 2000 Ciss 12 1500 8 1000 Coss 500 4 Crss 0 1 10 100 0 0 20 40 FOR TEST CIRCUIT SEE FIGURE 13 60 80 VDS , Drain-to-Source Voltage (V) QG , Total Gate Charge (nC) Fig 5. Typical Capacitance Vs. Drain-to-Source Voltage Fig 6. Typical Gate Charge Vs. Gate-to-Source Voltage 1000 1000 OPERATION IN THIS AREA LIMITED BY R DS(on) ISD , Reverse Drain Current (A) 100 TJ = 175 ° C 10 ID, Drain-to-Source Current (A) 100 10 100µsec 1msec TJ = 25 ° C 1 1 T A = 25°C T J = 175°C Single Pulse 1 10 100 10msec 0.1 0.2 V GS = 0 V 0.6 1.0 1.4 1.8 0.1 VSD ,Source-to-Drain Voltage (V) 1000 VDS , Drain-toSource Voltage (V) Fig 7. Typical Source-Drain Diode Forward Voltage Fig 8. Maximum Safe Operating Area 4 www.irf.com IRF540NPbF 35 VDS 30 RD VGS RG D.U.T. + ID , Drain Current (A) 25 20 15 10 5 0 -VDD VGS Pulse Width ≤ 1 µs Duty Factor ≤ 0.1 % Fig 10a. Switching Time Test Circuit VDS 90% 25 50 75 100 125 150 175 TC , Case Temperature ( °C) Fig 9. Maximum Drain Current Vs. Case Temperature 10% VGS td(on) tr t d(off) tf Fig 10b. Switching Time Waveforms 10 Thermal Response (Z thJC ) 1 D = 0.50 0.20 0.10 0.1 0.05 0.02 0.01 SINGLE PULSE (THERMAL RESPONSE) P DM t1 t2 Notes: 1. Duty factor D = t 1 / t 2 2. Peak TJ = P DM x Z thJC + TC 0.0001 0.001 0.01 0.1 1 0.01 0.00001 t1 , Rectangular Pulse Duration (sec) Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case www.irf.com 5 IRF540NPbF 15V EAS , Single Pulse Avalanche Energy (mJ) 400 VDS L DRIVER 300 ID 6.5A 11.3A BOTTOM 16A TOP RG 20V D.U.T IAS tp + V - DD A 200 0.01Ω Fig 12a. Unclamped Inductive Test Circuit V(BR)DSS tp 100 0 25 Starting TJ , Junction Temperature ( °C) 50 75 100 125 150 175 Fig 12c. Maximum Avalanche Energy Vs. Drain Current I AS Fig 12b. Unclamped Inductive Waveforms Current Regulator Same Type as D.U.T. 50KΩ QG 12V .2µF .3µF VGS QGS VG QGD VGS 3mA D.U.T. + V - DS Charge IG ID Current Sampling Resistors Fig 13a. Basic Gate Charge Waveform Fig 13b. Gate Charge Test Circuit 6 www.irf.com IRF540NPbF Peak Diode Recovery dv/dt Test Circuit D.U.T* + Circuit Layout Considerations • Low Stray Inductance • Ground Plane • Low Leakage Inductance Current Transformer + + - RG VGS • dv/dt controlled by RG • ISD controlled by Duty Factor "D" • D.U.T. - Device Under Test + VDD * Reverse Polarity of D.U.T for P-Channel Driver Gate Drive P.W. Period D= P.W. Period [VGS=10V ] *** D.U.T. ISD Waveform Reverse Recovery Current Body Diode Forward Current di/dt D.U.T. VDS Waveform Diode Recovery dv/dt [VDD] Re-Applied Voltage Inductor Curent Body Diode Forward Drop Ripple ≤ 5% [ ISD ] *** VGS = 5.0V for Logic Level and 3V Drive Devices Fig 14. For N-channel HEXFET® power MOSFETs www.irf.com 7 IRF540NPbF TO-220AB Package Outline Dimensions are shown in millimeters (inches) 2.87 (.113) 2.62 (.103) 10.54 (.415) 10.29 (.405) 3.78 (.149) 3.54 (.139) -A6.47 (.255) 6.10 (.240) -B4.69 (.185) 4.20 (.165) 1.32 (.052) 1.22 (.048) 4 15.24 (.600) 14.84 (.584) 1.15 (.045) MIN 1 2 3 LEAD ASSIGNMENTS IGBTs, CoPACK 1 - GATE 21- GATE DRAIN 1- GATE 32- DRAINSOURCE 2- COLLECTOR 3- SOURCE 3- EMITTER 4 - DRAIN LEAD ASSIGNMENTS HEXFET 14.09 (.555) 13.47 (.530) 4- DRAIN 4.06 (.160) 3.55 (.140) 4- COLLECTOR 3X 3X 1.40 (.055) 1.15 (.045) 0.93 (.037) 0.69 (.027) M BAM 3X 0.55 (.022) 0.46 (.018) 0.36 (.014) 2.54 (.100) 2X NOTES: 1 DIMENSIONING & TOLERANCING PER ANSI Y14.5M, 1982. 2 CONTROLLING DIMENSION : INCH 2.92 (.115) 2.64 (.104) 3 OUTLINE CONFORMS TO JEDEC OUTLINE TO-220AB. 4 HEATSINK & LEAD MEASUREMENTS DO NOT INCLUDE BURRS. TO-220AB Part Marking Information EXAMPLE: THIS IS AN IRF1010 LOT CODE 1789 ASSEMBLED O N WW 19, 1997 IN THE ASSEMBLY LINE "C" INTERNATIO NAL RECTIFIER LOGO ASSEMBLY LOT CODE PART NUMBER Note: "P" in assembly line position indicates "Lead-Free" DATE CODE YEAR 7 = 1997 WEEK 19 LINE C Data and specifications subject to change without notice. This product has been designed and qualified for the industrial market. Qualification Standards can be found on IR’s Web site. IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 TAC Fax: (310) 252-7903 Visit us at www.irf.com for sales contact information.11/03 8 www.irf.com
