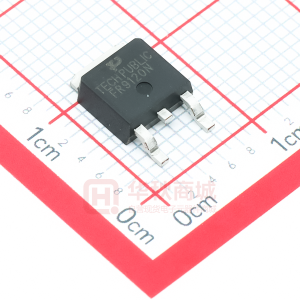

IRFR9120N

PD - 9.1507A PRELIMINARY l l l l l l l IRFR/U9120N HEXFET® Power MOSFET D Ultra Low On-Resistance P-Channel Surface Mount (IRFR9120N) Straight Lead (IRFU9120N) Advanced Process Technology Fast Switching Fully Avalanche Rated VDSS = -100V RDS(on) = 0.48Ω G S ID = -6.6A Description Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The D-Pak is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 watts are possible in typical surface mount applications. D -P ak T O -2 52 A A I-P ak T O -25 1 A A Absolute Maximum Ratings Parameter ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C VGS EAS IAR EAR dv/dt TJ TSTG Continuous Drain Current, VGS @ -10V Continuous Drain Current, VGS @ -10V Pulsed Drain Current  Power Dissipation Linear Derating Factor Gate-to-Source Voltage Single Pulse Avalanche Energy‚ Avalanche Current Repetitive Avalanche Energy Peak Diode Recovery dv/dt ƒ Operating Junction and Storage Temperature Range Soldering Temperature, for 10 seconds Max. -6.6 -4.2 -26 40 0.32 ± 20 100 -6.6 4.0 -5.0 -55 to + 150 300 (1.6mm from case ) Units A W W/°C V mJ A mJ V/ns °C Thermal Resistance Parameter RθJC RθJA RθJA Junction-to-Case Junction-to-Ambient (PCB mount)** Junction-to-Ambient Typ. ––– ––– ––– Max. 3.1 50 110 Units °C/W 3/16/98 IRFR/U9120N Electrical Characteristics @ TJ = 25°C (unless otherwise specified) Parameter Drain-to-Source Breakdown Voltage ∆V(BR)DSS/∆TJ Breakdown Voltage Temp. Coefficient RDS(on) Static Drain-to-Source On-Resistance VGS(th) Gate Threshold Voltage gfs Forward Transconductance V(BR)DSS IDSS IGSS Qg Qgs Qgd td(on) tr td(off) tf LD LS Ciss Coss Crss Drain-to-Source Leakage Current Gate-to-Source Forward Leakage Gate-to-Source Reverse Leakage Total Gate Charge Gate-to-Source Charge Gate-to-Drain ("Miller") Charge Turn-On Delay Time Rise Time Turn-Off Delay Time Fall Time Internal Drain Inductance Internal Source Inductance Input Capacitance Output Capacitance Reverse Transfer Capacitance Min. -100 ––– ––– -2.0 1.4 ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– Typ. ––– -0.11 ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– 14 47 28 31 4.5 7.5 350 110 70 Max. Units Conditions ––– V VGS = 0V, ID = -250µA ––– V/°C Reference to 25°C, ID = -1mA 0.48 Ω VGS = -10V, ID = -3.9A „ -4.0 V VDS = VGS, ID = -250µA ––– S VDS = -50V, ID = -4.0A† -25 VDS = -100V, VGS = 0V µA -250 VDS = -80V, VGS = 0V, TJ = 150°C 100 VGS = 20V nA -100 VGS = -20V 27 ID = -4.0A 5.0 nC VDS = -80V 15 VGS = -10V, See Fig. 6 and 13 „† ––– VDD = -50V ––– ID = -4.0A ns ––– R G = 12 Ω ––– RD =12 Ω, See Fig. 10 „† D Between lead, ––– 6mm (0.25in.) nH G from package ––– and center of die contact… S ––– VGS = 0V ––– pF VDS = -25V ––– ƒ = 1.0MHz, See Fig. 5† Source-Drain Ratings and Characteristics IS ISM V SD t rr Qrr ton Notes: Parameter Continuous Source Current (Body Diode) Pulsed Source Current (Body Diode)  Diode Forward Voltage Reverse Recovery Time Reverse Recovery Charge Forward Turn-On Time Min. Typ. Max. Units Conditions D MOSFET symbol ––– ––– -6.6 showing the A G integral reverse ––– ––– -26 p-n junction diode. S ––– ––– -1.6 V TJ = 25°C, IS = -3.9A, VGS = 0V „ ––– 100 150 ns TJ = 25°C, IF = -4.0A ––– 420 630 nC di/dt = 100A/µs „† Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)  Repetitive rating; pulse width limited by max. junction temperature. ( See fig. 11 ) ‚ Starting TJ = 25°C, L = 13mH RG = 25Ω, IAS = -3.9A. (See Figure 12) ƒ ISD ≤ -4.0A, di/dt ≤ 300A/µs, VDD ≤ V(BR)DSS, TJ ≤ 150°C „ Pulse width ≤ 300µs; duty cycle ≤ 2%. …This is applied for I-PAK, LS of D-PAK is measured between lead and center of die contact † Uses IRF9520N data and test conditions. ** When mounted on 1" square PCB (FR-4 or G-10 Material ) . For recommended footprint and soldering techniques refer to application note #AN-994 IRFR/U9120N 100 100 -I D , Drain-to-Source Current (A) -I D , Drain-to-Source Current (A) VGS -15V -10V -8.0V -7.0V -6.0V -5.5V -5.0V BOTTOM -4.5V TOP VGS -15V -10V -8.0V -7.0V -6.0V -5.5V -5.0V BOTTOM -4.5V TOP 10 10 1 1 -4.5V 20µs PULSE WIDTH TJ = 150 °C 1 10 100 -4.5V 0.1 0.1 20µs PULSE WIDTH TJ = 25 °C 1 10 100 0.1 0.1 -VDS , Drain-to-Source Voltage (V) -VDS , Drain-to-Source Voltage (V) Fig 1. Typical Output Characteristics Fig 2. Typical Output Characteristics 100 2.5 R DS(on) , Drain-to-Source On Resistance (Normalized) ID = -6.7A -I D , Drain-to-Source Current (A) 2.0 10 TJ = 25 ° C TJ = 150 ° C 1.5 1.0 1 0.5 0.1 4 5 6 7 V DS = -50V 20µs PULSE WIDTH 8 9 10 0.0 -60 -40 -20 VGS = -10V 0 20 40 60 80 100 120 140 160 -VGS , Gate-to-Source Voltage (V) TJ , Junction Temperature ( °C) Fig 3. Typical Transfer Characteristics Fig 4. Normalized On-Resistance Vs. Temperature IRFR/U9120N 800 20 -VGS , Gate-to-Source Voltage (V) VGS = 0V, f = 1MHz Ciss = Cgs + Cgd , Cds SHORTED Crss = Cgd Coss = Cds + Cgd ID = -4.0 A 16 VDS = -80V VDS = -50V VDS = -20V C, Capacitance (pF) 600 Ciss 12 400 Coss Crss 8 200 4 0 1 10 100 0 0 5 10 FOR TEST CIRCUIT SEE FIGURE 13 15 20 25 -VDS , Drain-to-Source Voltage (V) QG , Total Gate Charge (nC) Fig 5. Typical Capacitance Vs. Drain-to-Source Voltage Fig 6. Typical Gate Charge Vs. Gate-to-Source Voltage 100 100 -ISD , Reverse Drain Current (A) OPERATION IN THIS AREA LIMITED BY RDS(on) 10us 10 TJ = 150 ° C TJ = 25 ° C -ID , Drain Current (A) I 10 100us 1ms 1 10ms 1 0.1 0.2 V GS = 0 V 0.8 1.4 2.0 2.6 0.1 1 TC = 25 ° C TJ = 150 ° C Single Pulse 10 100 1000 -VSD ,Source-to-Drain Voltage (V) -VDS , Drain-to-Source Voltage (V) Fig 7. Typical Source-Drain Diode Forward Voltage Fig 8. Maximum Safe Operating Area IRFR/U9120N 8.0 VDS VGS RD D.U.T. + -ID , Drain Current (A) -10V 4.0 Pulse Width ≤ 1 µs Duty Factor ≤ 0.1 % Fig 10a. Switching Time Test Circuit 2.0 td(on) tr t d(off) tf VGS 10% 0.0 25 50 75 100 125 150 TC , Case Temperature ( ° C) 90% VDS Fig 9. Maximum Drain Current Vs. Case Temperature Fig 10b. Switching Time Waveforms 10 Thermal Response (Z thJC ) D = 0.50 1 0.20 0.10 0.05 0.1 0.02 0.01 SINGLE PULSE (THERMAL RESPONSE) PDM t1 t2 Notes: 1. Duty factor D = t 1 / t 2 2. Peak T J = P DM x Z thJC + TC 0.0001 0.001 0.01 0.1 1 10 0.01 0.00001 t1 , Rectangular Pulse Duration (sec) Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case - 6.0 RG VDD IRFR/U9120N VDS L EAS , Single Pulse Avalanche Energy (mJ) 250 RG D .U .T IA S - VV DD + DD A D R IV E R 200 ID -1.7A -2.5A BOTTOM -3.9A TOP -20V tp 0.0 1Ω 150 15V 100 Fig 12a. Unclamped Inductive Test Circuit IAS 50 0 25 50 75 100 125 150 Starting T , Junction Temperature( ° C) J tp V (BR)DSS Fig 12c. Maximum Avalanche Energy Vs. Drain Current Fig 12b. Unclamped Inductive Waveforms Current Regulator Same Type as D.U.T. QG 50KΩ 12V .2µF .3µF -10V QGS VG QGD VGS -3mA Charge IG ID Current Sampling Resistors Fig 13a. Basic Gate Charge Waveform Fig 13b. Gate Charge Test Circuit + D.U.T. - VDS IRFR/U9120N Peak Diode Recovery dv/dt Test Circuit D.U.T* + ƒ + Circuit Layout Considerations • Low Stray Inductance • Ground Plane • Low Leakage Inductance Current Transformer ‚ - „ +  RG VGS • dv/dt controlled by RG • ISD controlled by Duty Factor "D" • D.U.T. - Device Under Test + VDD * Reverse Polarity of D.U.T for P-Channel Driver Gate Drive P.W. Period D= P.W. Period [VGS=10V ] *** D.U.T. ISD Waveform Reverse Recovery Current Body Diode Forward Current di/dt D.U.T. VDS Waveform Diode Recovery dv/dt [VDD] Re-Applied Voltage Inductor Curent Body Diode Forward Drop Ripple ≤ 5% [ ISD] *** VGS = 5.0V for Logic Level and 3V Drive Devices Fig 14. For P-Channel HEXFETS IRFR/U9120N Package Outline TO-252AA Outline Dimensions are shown in millimeters (inches) 6.73 (.265) 6.35 (.250) -A5.46 (.215) 5.21 (.205) 4 6.45 (.245) 5.68 (.224) 6.22 (.245) 5.97 (.235) 1.02 (.040) 1.64 (.025) 1 2 3 0.51 (.020) M IN . 10.42 (.410) 9.40 (.370) 1.27 (.050) 0.88 (.035) 2.38 (.094) 2.19 (.086) 1.14 (.045) 0.89 (.035) 0.58 (.023) 0.46 (.018) LE A D A S S IG N M E N T S 1 - GATE 2 - D R A IN 3 - SOURCE 4 - D R A IN -B1.52 (.060) 1.15 (.045) 3X 2X 1.14 (.045) 0.76 (.030) 2.28 (.090) 4.57 (.180) 0.89 (.035) 0.64 (.025) 0.25 (.010) M AMB 0.58 (.023) 0.46 (.018) N O TE S : 1 D IM E N S IO N IN G & TO LE R A N C IN G P E R A N S I Y 14.5M , 1982. 2 C O N TR O LLIN G D IM E N S IO N : IN C H . 3 C O N F O R M S T O JE D E C O U TLIN E TO -252A A . 4 D IM E N S IO N S S H O W N A R E B E F O R E S O LD E R D IP , S O LD E R D IP M A X. +0.16 (.006). Part Marking Information TO-252AA (D-Pak) E XA M P L E : T H IS IS A N IR F R 1 2 0 W IT H A S S E M B L Y LOT CODE 9U1P IN T E R N A T IO N A L R E C T IF IE R LO G O A IR F R 120 9U 1P F IR S T P O R T IO N OF PART NUMBER ASSEMBLY LOT CODE S E C O N D P O R T IO N OF PART NUMBER IRFR/U9120N Package Outline TO-251AA Outline Dimensions are shown in millimeters (inches) 6.73 (.265) 6.35 (.250) -A5.46 (.215) 5.21 (.205) 4 6.45 (.245) 5.68 (.224) 1.52 (.060) 1.15 (.045) 1 -B2.28 (.090) 1.91 (.075) 9.65 (.380) 8.89 (.350) 2 3 6.22 (.245) 5.97 (.235) 1.27 (.050) 0.88 (.035) 2.38 (.094) 2.19 (.086) 0.58 (.023) 0.46 (.018) LE A D A S S IG N M E N T S 1 - GATE 2 - D R A IN 3 - SOURCE 4 - D R A IN N O TE S : 1 D IM E N S IO N IN G & TO LE R A N C IN G P E R A N S I Y 14.5M , 1982. 2 C O N T R O LLIN G D IM E N S IO N : IN C H . 3 C O N F O R M S TO J E D E C O U T LIN E T O -252A A . 4 D IM E N S IO N S S H O W N A R E B E F O R E S O LD E R D IP , S O LD E R D IP M A X. +0.16 (.006). 3X 1.14 (.045) 0.76 (.030) 3X 0.89 (.035) 0.64 (.025) M AMB 1.14 (.045) 0.89 (.035) 0.58 (.023) 0.46 (.018) 2.28 (.090) 2X 0.25 (.010) Part Marking Information TO-251AA (I-Pak) E X A M P L E : T H IS IS A N IR F U 1 2 0 W IT H A S S E M B L Y LO T CODE 9U1P IN T E R N A T IO N A L R E C T IF IE R LO GO IR F U 120 9U 1P F IR S T P O R T IO N OF PART NUMBER ASSEMBLY LOT CODE S E C O N D P O R T IO N OF PART NUMBER IRFR/U9120N Tape & Reel Information TO-252AA TR TRR TRL 1 6.3 ( .6 41 ) 1 5.7 ( .6 19 ) 16 .3 ( .64 1 ) 15 .7 ( .61 9 ) 12 .1 ( .4 7 6 ) 11 .9 ( .4 6 9 ) F E E D D IR E C T IO N 8 .1 ( .3 18 ) 7 .9 ( .3 12 ) F E E D D IR E C T IO N NOTES : 1 . C O N T R O LL IN G D IM E N S IO N : M ILL IM E T E R . 2 . A LL D IM E N S IO N S A R E S H O W N IN M ILL IM E T E R S ( IN C H E S ). 3 . O U T L IN E C O N F O R M S T O E IA -4 81 & E IA -54 1. 1 3 IN C H 16 m m NO TES : 1. O U T L IN E C O N F O R M S T O E IA -4 81 . WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, Tel: (310) 322 3331 EUROPEAN HEADQUARTERS: Hurst Green, Oxted, Surrey RH8 9BB, UK Tel: ++ 44 1883 732020 IR CANADA: 7321 Victoria Park Ave., Suite 201, Markham, Ontario L3R 2Z8, Tel: (905) 475 1897 IR GERMANY: Saalburgstrasse 157, 61350 Bad Homburg Tel: ++ 49 6172 96590 IR ITALY: Via Liguria 49, 10071 Borgaro, Torino Tel: ++ 39 11 451 0111 IR FAR EAST: K&H Bldg., 2F, 30-4 Nishi-Ikebukuro 3-Chome, Toshima-Ku, Tokyo Japan 171 Tel: 81 3 3983 0086 IR SOUTHEAST ASIA: 315 Outram Road, #10-02 Tan Boon Liat Building, Singapore 0316 Tel: 65 221 8371 http://www.irf.com/ Data and specifications subject to change without notice. 3/98
