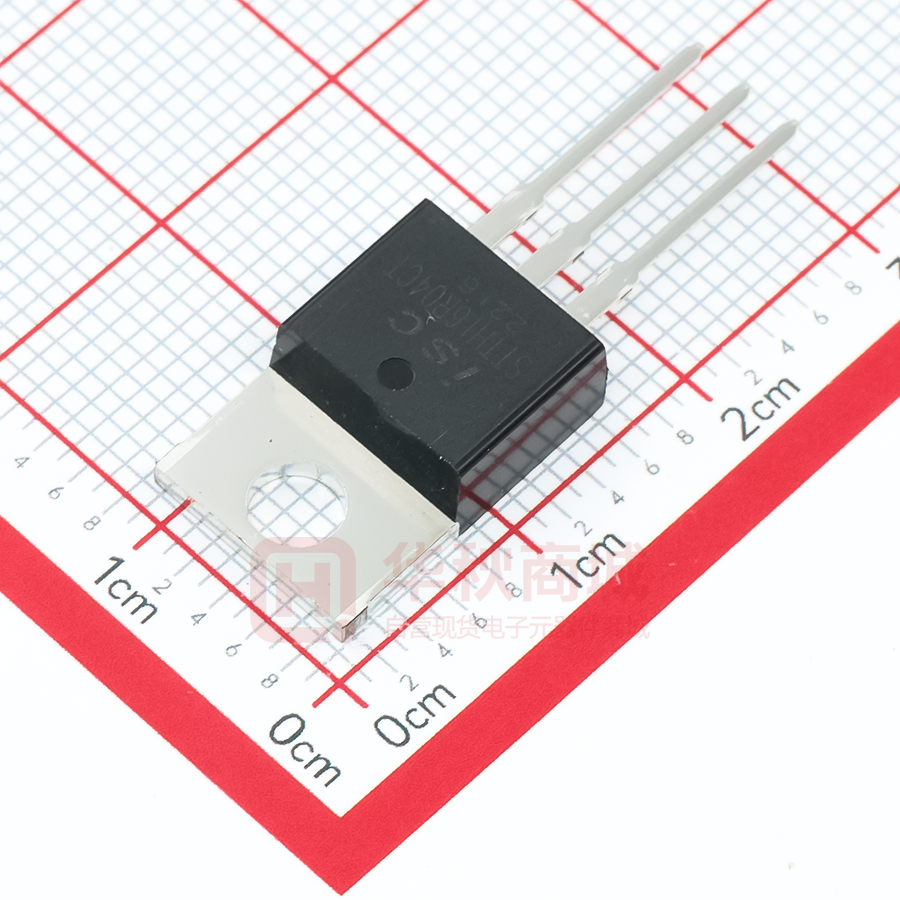

STTH16R04CT

STTH16R04CT Ultrafast Rectifier FEATURES ·Ultrafast with soft recovery ·175℃ Operating temperature ·Popular TO-220 package ·Avalanche energy rated ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Switching power supply ·Power switching circuits ·General purpose ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage 400 V IF(AV) Average Rectified Forward Current Per Leg Total device 8 16 A IFSM Nonrepetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60Hz) 120 A PD Maximum power dissipation 75 W TJ Junction Temperature -65~175 ℃ Storage Temperature Range -65~175 ℃ Tstg isc website：www.iscsemi.com 1 isc & iscsemi is registered trademark STTH16R04CT Fast Recovery Rectifier THERMAL CHARACTERISTICS SYMBOL Rth j-c PARAMETER Thermal Resistance,Junction to Case MAX UNIT 2.0 ℃/W ELECTRICAL CHARACTERISTICS(Ta=25℃) (Pulse Test: Pulse Width=300μs,Duty Cycle≤2%) SYMBOL PARAMETER CONDITIONS MAX UNIT V IF= 16A ;Tj=150℃ 1.5 1.1 1.75 1.37 IF= 8A ;Tj=25℃ VF* Maximum Instantaneous Forward Voltage IF= 8A ;Tj=150℃ IF= 16A ;Tj=25℃ IR* Maximum Instantaneous Reverse Current VR= VRWM;Tj=150℃ VR= VRWM 100 10 μA trr Maximum Reverse Recovery Time IF =1A;di/dt = 50A/µs 50 ns *:Pulse test ,Pulse width=300us,duty cycle≤2% NOTICE： ISC reserves the rights to make changes of the content herein the datasheet at any time without notification. The information contained herein is presented only as a guide for the applications of our products. ISC products are intended for usage in general electronic equipment. The products are not designed for use in equipment which require specialized quality and/or reliability, or in equipment which could have applications in hazardous environments, aerospace industry, or medical field. Please contact us if you intend our products to be used in these special applications. ISC makes no warranty or guarantee regarding the suitability of its products for any particular purpose, nor does ISC assume any liability arising from the application or use of any products, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. isc website：www.iscsemi.com 2 isc & iscsemi is registered trademark
