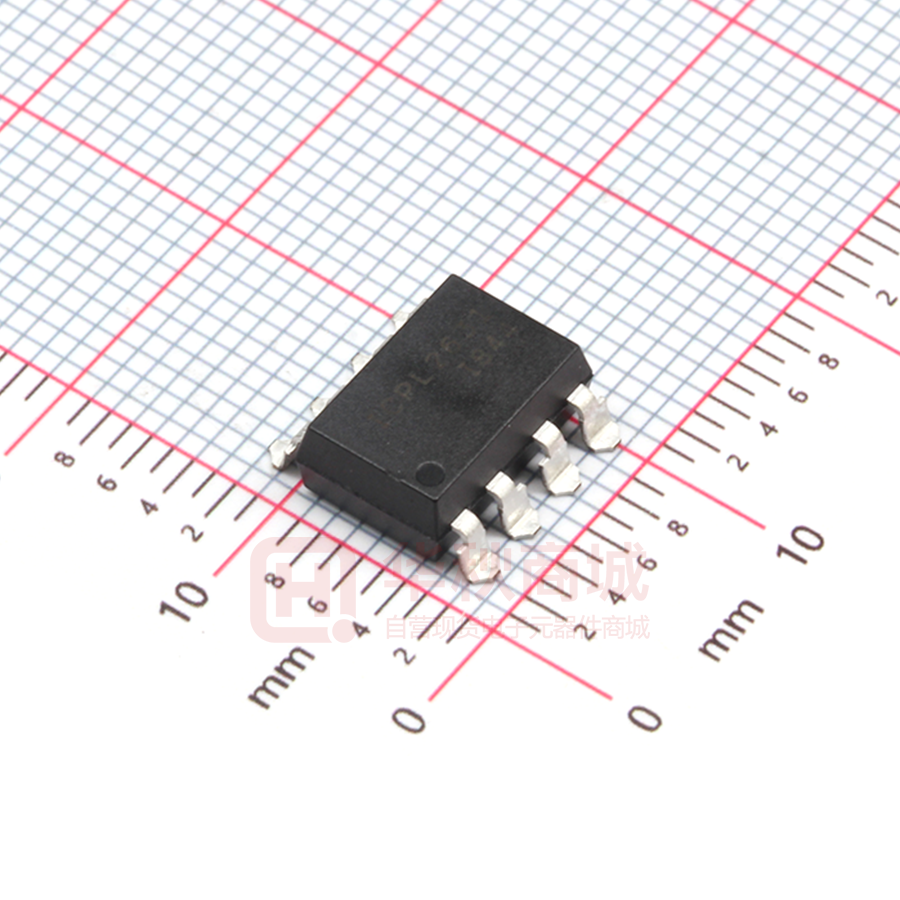

ICPL2631SM

ISOCOM COMPONENTS ICPL2630 / ICPL2631 DESCRIPTION The ICPL2630 and ICPL2631 dual channel devices each consists of an infrared emitting diode, optically coupled to a high speed integrated photo detector logic gate with a strobable output. 1. Anode 2. Cathode 3. Cathode 4. Anode 5. Gnd 6. Vout2 7. Vout1 8. VCC FEATURES • • • • • • • • High speed 10Mbit/s 10kV/μs min. Common Mode Transient Immunity (ICPL2631) High AC Isolation voltage 5000Vrms Guaranteed performance from -40°C to 85°C Wide Operating temperature range 55°C to 125°C Logic Gate Output RoHS Compliant Safety Approvals Pending APPLICATIONS • • • • • • • Line Receivers, Data Transmission Ground Loop Elimination LSTTL to TTL, LSTTL or 5V CMOS Data Multiplexing Switch Mode Power Supplies Pulse Transformer Replacement Computer Peripheral Interface ORDER INFORMATION • • • Add G after PN for 10mm lead spacing Add SM after PN for Surface Mount, Add SMT&R after PN for Surface Mount Tape & Reel ABSOLUTE MAXIMUM RATINGS Input Diode Forward Current (each Channel) Reverse Voltage Power dissipation (each Channel) 20mA 5V 40mW Output Output Current (each Channel) Output Voltage Supply Voltage Power Dissipation 50mA 7V 7V 85mW Total Package Isolation Voltage Operating Temperature Storage Temperature Power Dissipation Lead Soldering Temperature (10s) 5000Vrms -40 to 100 °C -55 to 125 °C 85mW 260°C . ISOCOM COMPONENTS 2004 LTD Unit 25B, Park View Road West, Park View Industrial Estate Hartlepool, Cleveland, TS25 1UD, United Kingdom Tel: +44 (0)1429 863 609 Fax : +44 (0)1429 863 581 e-mail: sales@isocom.co.uk http://www.isocom.com 1 05/12/12 ISOCOM COMPONENTS ASIA LTD Hong Kong Office, Block A, 8/F, Wah Hing Industrial mansion, 36 Tai Yau Street, San Po Kong, Kowloon, Hong Kong. Tel: +852 2995 9217 Fax : +852 8161 6292 e-mail: sales@isocom.com.hk DC93164 ISOCOM COMPONENTS ICPL2630 / ICPL2631 Truth Table (Positive Logic) Input Output H L L H ELECTRICAL CHARACTERISTICS INPUT (TA = -40°C to 85°C unless otherwise specified) Parameter Symbol Test Condition Forward Voltage VF IF = 10mA, TA = 25°C Reverse Voltage VR IR = 10µA ΔVF/ΔTA IF = 10mA -1.8 mV/°C CIN VF = 0V, f = 1MHz 60 pF Temperature Coefficient Input Capacitance Min Typ. Max Unit 1.4 1.8 V 5.0 V OUTPUT (TA = -40°C to 85°C unless otherwise specified) Parameter Symbol Test Condition High Level Supply Current ICCH Low Level Supply Current ICCL Min Typ. Max Unit IF = 0mA, VCC = 5.5V 12.5 18 mA IF = 10mA, VCC = 5.5V 14.5 21 mA Typ. Max Unit COUPLED (TA = -40°C to 85°C unless otherwise specified) Parameter Symbol Test Condition High Level Output Current IOH VCC = 5.5V, VO = 5.5V, IF = 250μA 2.1 100 μA Low Level Output Voltage VOL VCC = 5.5V, IF = 5mA, ICL = 13mA 0.35 0.6 V Input Threshold Current IFT VCC = 5.5V, VO = 0.6V, IOL = 13mA 2.5 5 mA 2 05/12/12 Min DC93164 ISOCOM COMPONENTS ICPL2630 / ICPL2631 ELECTRICAL CHARACTERISTICS Switching Characteristics (TA = -40°C to 85°C, VCC = 5V, IF = 7.5mA unless otherwise specified) Parameter Symbol Test Condition Min Typ. Max Unit Propagation Delay Time to Output High Level tPLH CL = 15pF, RL = 350Ω, TA = 25°C 35 100 ns Propagation Delay Time to Output Low Level tPHL CL = 15pF, RL = 350Ω, TA = 25°C 40 100 ns |tPHL - tPLH | CL = 15pF, RL = 350Ω 5 35 ns Output Rise Time tr CL = 15pF, RL = 350Ω 40 ns Output Fall time tf CL = 15pF, RL = 350Ω 10 ns Pulse Width Distortion Common Mode Transient Immunity at Logic High CMH ICPL2630 ICPL2631 IF = 0mA, VCM = 1kVp-p, VOH = 2.0V, RL = 350Ω, TA = 25°C 5000 10000 20000 Common Mode Transient Immunity at Logic Low CML ICPL2630 ICPL2631 IF = 7.5mA, VCM = 1kVp-p, VOL = 0.8V, RL = 350Ω, TA = 25°C 5000 10000 20000 V/μs V/μs Notes : 1. The VCC supply must be bypassed by a 0.1μF capacitor or larger with good high frequency characteristic and should be connected as close as possible to the package VCC and Gnd pins. 2. tPLH– Propagation delay is measured from the 3.75mA level on the HIGH to LOW transition of the input current pulse to the 1.5 V level on the LOW to HIGH transition of the output voltage pulse. 3. tPHL– Propagation delay is measured from the 3.75mA level on the LOW to HIGH transition of the input current pulse to the 1.5 V level on the HIGH to LOW transition of the output voltage pulse. 4. tr– Rise time is measured from the 10% to the 90% levels on the LOW to HIGH transition of the output pulse. 5. tf– Fall time is measured from the 90% to the 10% levels on the HIGH to LOW transition of the output pulse. 6. CMH– The maximum tolerable rate of rise of the common mode voltage to ensure the output will remain in the HIGH state (i.e., VOUT > 2.0V). 7. CML– The maximum tolerable rate of rise of the common mode voltage to ensure the output will remain in the LOW output state (i.e., VOUT < 0.8V). 3 05/12/12 DC93164 ISOCOM COMPONENTS ICPL2630 / ICPL2631 Fig 1 Forward Current vs Forward Voltage Fig 3 Low Level Output Voltage vs TA Fig 5 Input Threshold Current vs TA 4 05/12/12 Fig 2 Output Voltage vs Input Current Fig 4 Low Level Output Current vs TA Fig 6 High Level Output Current vs TA DC93164 ISOCOM COMPONENTS ICPL2630 / ICPL2631 Fig 7 Propagation Delay vs Forward Current Fig 8 Propagation Delay vs TA Fig 9 Pulse Width Distortion vs TA Fig 10 Rise Time and Fall Time vs TA 5 05/12/12 DC93164 ISOCOM COMPONENTS ICPL2630 / ICPL2631 IF=7.5mA IF=3.75mA Input tPHL tPLH Output (Vo) 1.5V 90% Output (Vo) 10% Fig 11 Switching Time Test Circuit tf tr Peak VCM 0V 5V Vo CMH IF=0mA VO(Min) VO(Max) Vo IF=7.5mA CML 0.5V Fig 12 Common Mode Transient Immunity Test Circuit 6 05/12/12 DC93164 ISOCOM COMPONENTS ICPL2630 / ICPL2631 ORDER INFORMATION ICPL2630, ICPL2631 After PN None Standard DIP8 Packing quantity 50 pcs per tube G 10mm Lead Spacing 50 pcs per tube SM Surface Mount 50 pcs per tube SMT&R Surface Mount Tape & Reel 1000 pcs per reel 7 05/12/12 Description DC93164 ISOCOM COMPONENTS ICPL2630 / ICPL2631 PACKAGE DIMENSIONS (mm) DIP G FORM 8 05/12/12 DC93164 ISOCOM COMPONENTS ICPL2630 / ICPL2631 SMD REFLOW SOLDERING TEMPERATURE PROFILE 260 °C (peak,10s Max) >255 °C (30s Max) 217°C 1-3 °C/s Max TEMP (°C) 200°C 60s – 120 s 150°C 60s – 100s 1-3 °C/s Max TIME (s) 9 05/12/12 DC93164
