MOC3043M

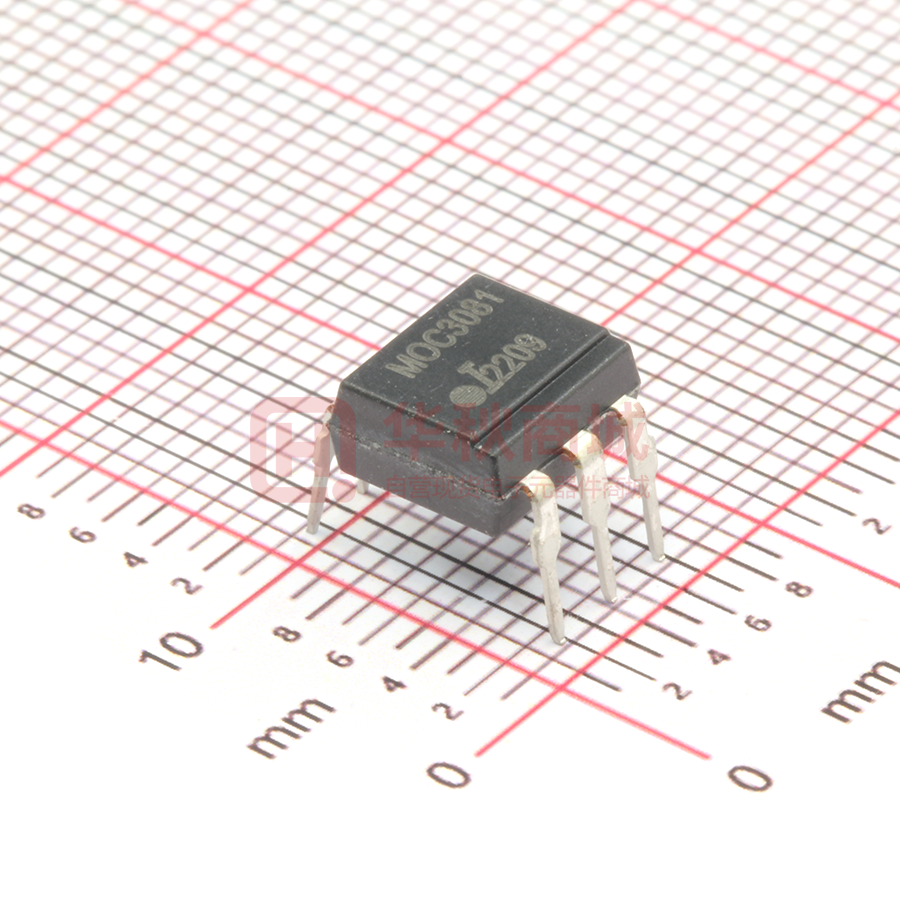

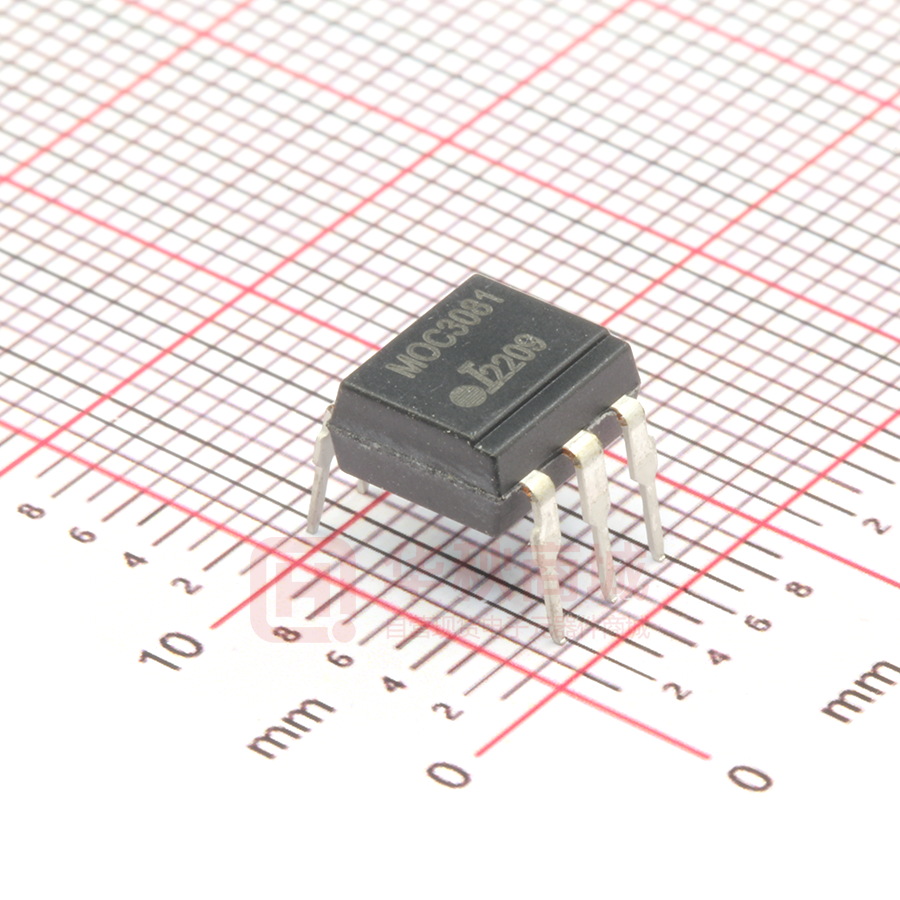

MOC3080, MOC3081, MOC3082, MOC3083 MOC3080X, MOC3081X, MOC3082X, MOC3083X OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC "X" SPECIFICATION APPROVAL z Dimensions in mm 2.54 VDE 0884 in 3 available lead forms :- STD - G Form ( 10.16 pitch ) - SMD approved to CECC000802 7.0 6.0 1 2 6 5 3 4 1.2 DESCRIPTION The MOC308_ Series are optically coupled isolators consisting of a Gallium Arsenide infrared emitting diode coupled with a monolithic silicon detector performing the functions of a zero crossing bilateral triac mounted in a standard 6 pin dual-in-line package. 7.62 6.62 7.62 4.0 3.0 13° Max 0.5 3.0 0.5 3.35 0.26 FEATURES z z z z z z Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. High Isolation Voltage, 5.3kVRMS Zero Voltage Crossing 800V Peak Blocking Voltage All electrical parameters 100% tested Custom electrical selections available APPLICATIONS CRTs z Power Triac Driver z Motors z Consumer appliances z Printers ABSOLUTE MAXIMUM RATINGS (25 °C unless otherwise noted) Storage Temperature -550C - +1250C Operating Temperature -300C - +1000C Lead Soldering Temperature 2600C (1.6mm from case for 10 seconds) INPUTDIODE z Forward Current Reverse Voltage 50mA 6V OUTPUT PHOTO TRIAC OPTION G OPTION SM SURFACE MOUNT 0.6 0.1 10.46 9.86 1.25 0.75 7.62 RMS on-state current Peak one cycle surge current (50Hz sine wave) Peak Off-State Voltage 0.1A 1.2A 800V 0.26 10.16 ISOCOM COMPONENTS LTD Unit 25B, Park View Road West, Park View Industrial Estate, Brenda Road Hartlepool, TS25 1UD England Tel: (01429)863609 Fax : (01429) 863581 e-mail sales@isocom.co.uk 28/11/08 DB92698 ELECTRICAL CHARACTERISTICS ( TA = 25°C Unless otherwise noted ) PARAMETER Input Forward Voltage (VF) Reverse Current (IR) Output Peak Off-state Current ( IDRM ) Peak Blocking Voltage ( VDRM ) On-state Voltage ( VTM ) Critical rate of rise of off-state Voltage ( dv/dt ) Coupled 1.2 Inhibit Voltage ( VIH ) TEST CONDITION 1.4 10 V μA IF = 20mA VR = 6V 500 nA V V VDRM = 800V (note 1 ) IDRM = 500nA ITM = 100mA ( peak ) 800 3.0 600 V/μs Input Current to Trigger ( IFT )(note 2 ) MOC3080 MOC3081 MOC3082 MOC3083 Holding Current , either direction ( IH ) Input to Output Isolation Voltage VISO Zero Crossing Charact-eristic MIN TYP MAX UNITS 30 15 10 5 mA mA mA mA μA VRMS 400 5300 20 V VTM = 3V ( note 2 ) See note 3 IF= Rated IFT MT1-MT2 Voltage above which device will not trigger Note 1. Guaranteed to trigger at an IF value less than or equal to max. IFT , recommended IF lies between Rated IFT and absolute max. IF . Note 2. Measured with input leads shorted together and output leads shorted together. 28/11/08 DB92698
