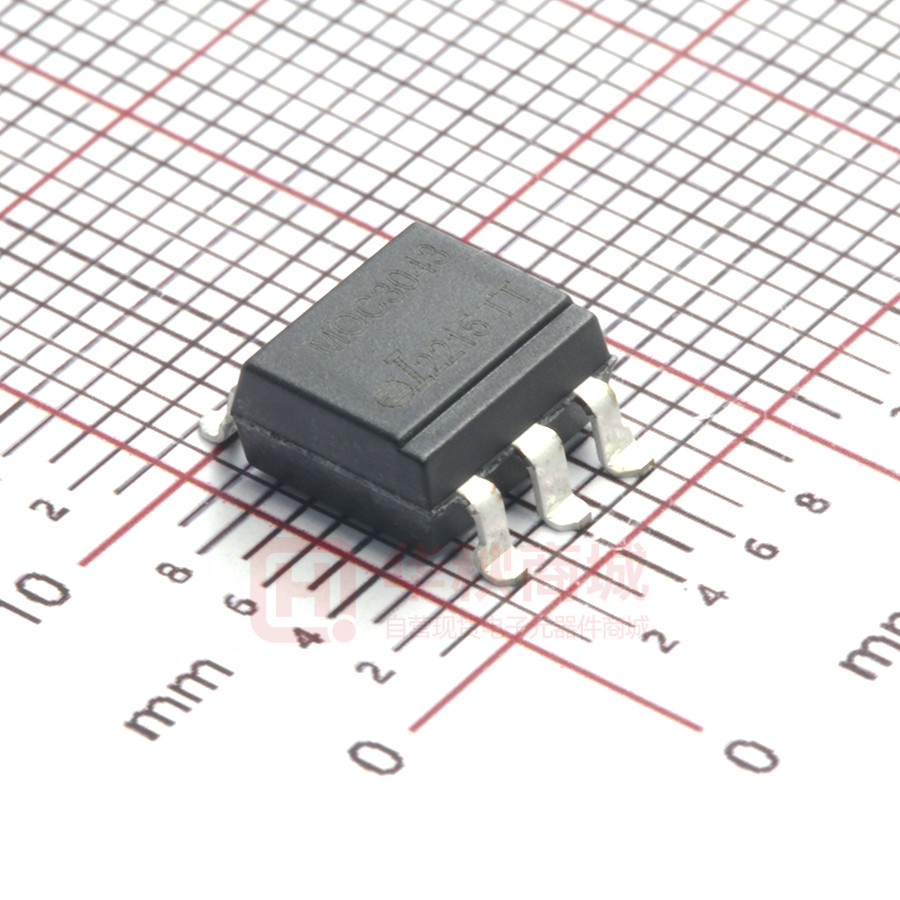

MOC3043SM

MOC3040, MOC3041, MOC3042, MOC3043 MOC3040X, MOC3041X, MOC3042X, MOC3043X OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC 2.54 APPROVALS z UL recognised, File No. E91231 Package Code " TT " 'X' SPECIFICATIONAPPROVALS z VDE 0884 in 3 available lead form : - STD Dimensions in mm 7.0 6.0 7.62 6.62 - SMD approved to CECC 00802 3 4 7.62 4.0 3.0 DESCRIPTION 13° Max 0.5 The MOC304_ Series are optically coupled isolators consisting of a Gallium Arsenide infrared emitting diode coupled with a monolithic silicon detector performing the functions of a zero crossing bilateral triac mounted in a standard 6 pin dual-in-line package. FEATURES z Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. z High Isolation Voltage (5.3kVRMS ,7.5kVPK ) z Zero Voltage Crossing z 400V Peak Blocking Voltage z All electrical parameters 100% tested z Custom electrical selections available OPTION SM 7.62 1.25 0.75 0.5 3.35 0.26 ABSOLUTE MAXIMUM RATINGS (25 °C unless otherwise noted) Storage Temperature -550C - +1500C Operating Temperature -400C - +1000C Lead Soldering Temperature 2600C (1.6mm from case for 10 seconds) INPUTDIODE OUTPUT PHOTO TRIAC OPTION G SURFACE MOUNT 3.0 Forward Current 50mA Reverse Voltage 6V Power Dissipation 120mW (derate linearly 1.41mW/0C above 250C) APPLICATIONS z CRTs z Power Triac Driver z Motors z Consumer appliances z Printers 10.46 9.86 6 5 1.2 - G form 0.6 0.1 1 2 0.26 10.16 Off-State Output Terminal Voltage 400V Peak Repetitive Surge Current (PW=100μs, 120pps) 1A Power Dissipation 150mW (derate linearly 1.76mW/0C above 250C) POWER DISSIPATION Total Power Dissipation 250mW (derate linearly 2.94mW/0C above 250C) ISOCOM COMPONENTS 2004 LTD Unit 25B, Park View Road West, Park View Industrial Estate, Brenda Road Hartlepool, TS25 1UD England Tel: (01429)863609 Fax : (01429) 863581 e-mail sales@isocom.co.uk http://www.isocom.com 22/5/12 DB91048 ELECTRICAL CHARACTERISTICS ( TA = 25°C Unless otherwise noted ) PARAMETER Input Forward Voltage (VF) Reverse Current (IR) Output Peak Off-state Current ( IDRM ) Peak Blocking Voltage ( VDRM ) On-state Voltage ( VTM ) Critical rate of rise of off-state Voltage ( dv/dt ) Coupled 1.2 V μA IF = 20mA VR = 6V 500 nA V V VDRM = 400V (note 1 ) IDRM = 500nA ITM = 100mA ( peak ) 3.0 600 TEST CONDITION 1.4 10 400 1500 Input Current to Trigger ( IFT )(note 2 ) MOC3040 MOC3041 MOC3042 MOC3043 Holding Current , either direction ( IH ) Input to Output Isolation Voltage VISO Zero Crossing Charact-eristic MIN TYP MAX UNITS V/μs 30 15 10 5 mA mA mA mA μA VRMS VPK 400 5300 7500 Inhibit Voltage ( VIH ) 20 V Leakage in Inhibited State ( IS ) 500 μA VTM = 3V ( note 2 ) See note 3 See note 3 IF= Rated IFT MT1-MT2 Voltage above which device will not trigger IF= Rated IFT VDRM = Rated VDRM Off-state Note 1. Test voltage must be applied within dv/dt rating. Note 2. Guaranteed to trigger at an IF value less than or equal to max. IFT , recommended IF lies between Rated IFT and absolute max. IF . Note 3. Measured with input leads shorted together and output leads shorted together. 22/5/12 DB91048m-AAS/A8
