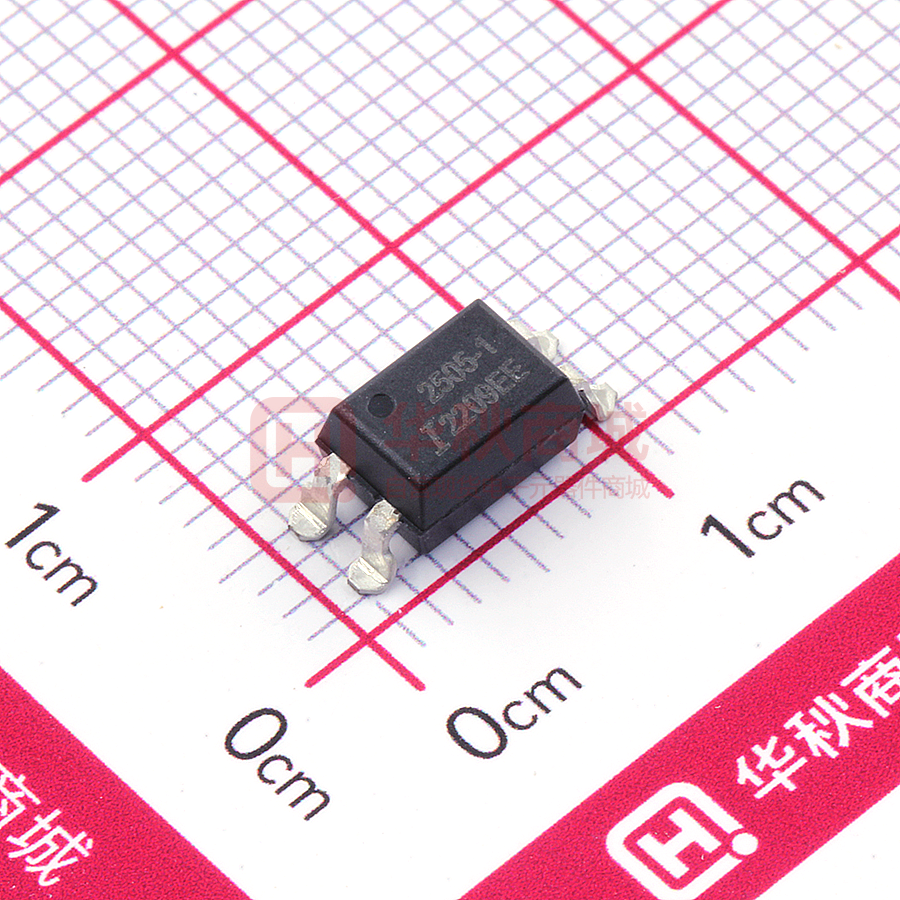

PS2505-1SM

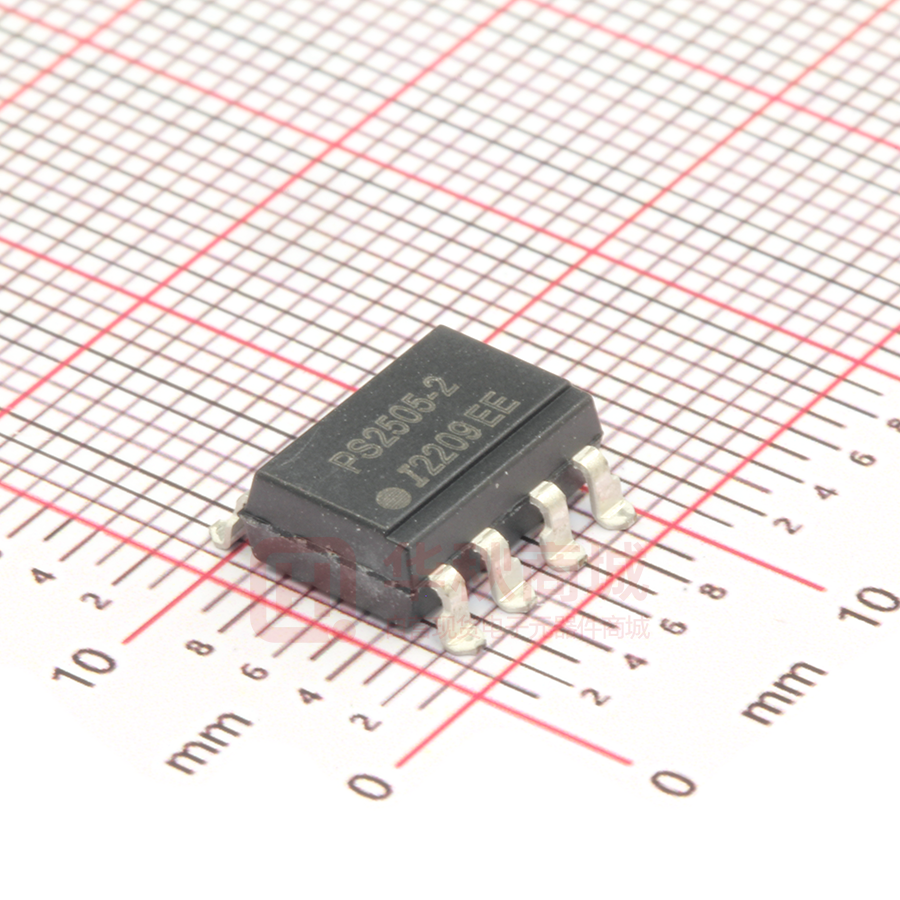

PS2505-1, PS2505-2, PS2505-4 DESCRIPTION The PS2505-1, PS2505-2 and PS2505-4 series of optocouplers consist of two infrared light emitting diodes connected in reverse parallel optically coupled to an NPN silicon photo transistor in a space efficient Dual In Line Plastic Package. PS2505-1 PS2505-2 FEATURES • • • • • AC Isolation Voltage 5000VRMS Wide Operating Temperature Range PS2505-1 : −50°C to +110°C PS2505-2 / PS2505-4 : −30°C to +100°C RoHS Compliant UL File E91231 Model “EE” VDE Approval Certificate No. 40028086 APPLICATIONS • • • • Computer Terminals Industrial System Controllers Measuring Instruments Signal Transmission between Systems of Different Potentials and Impedances 1 2 3 4 Anode/Cathode Cathode/Anode Emitter Collector 1, 3 2, 4 5, 7 6, 8 Anode/Cathode Cathode/Anode Emitter Collector PS2505-4 ORDER INFORMATION • • • • • Add X after PN for VDE Approval Add G after PN for 10mm lead spacing Add SM after PN for Surface Mount version Add SMT&R after PN for Surface Mount Tape & Reel version available for PS2505-1SM PS2505-2SM Consult Factory for Tape and Reel version of PS2505-4SM ISOCOM COMPONENTS 2004 LTD Unit 25B, Park View Road West, Park View Industrial Estate Hartlepool, Cleveland, TS25 1PE, United Kingdom Tel : +44 (0)1429 863 609 Fax : +44 (0)1429 863 581 e-mail : sales@isocom.co.uk http://www.isocom.com 1 30/08/2022 1, 3, 5, 7 2, 4, 6, 8 9, 11, 13, 15 10, 12, 14, 16 Anode/Cathode Cathode/Anode Emitter Collector ISOCOM COMPONENTS ASIA LTD Hong Kong Office Block A, 8/F, Wah Hing Industrial Mansion 36 Tai Yau Street, San Po Kong, Kowloon, Hong Kong Tel : +852 2995 9217 Fax : +852 8161 6292 e-mail : sales@isocom.com.hk DE93301 PS2505-1, PS2505-2, PS2505-4 ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Stresses exceeding the absolute maximum ratings can cause permanent damage to the device. Exposure to absolute maximum ratings for long periods of time can adversely affect reliability. Input Forward Current Power dissipation ±50mA 70mW Output Collector to Emitter Voltage BVCEO Emitter to Collector Voltage BVECO Collector Current Power Dissipation 80V 6V 50mA 150mW Total Package Isolation Voltage 5000VRMS Total Power Dissipation 200mW Operating Temperature PS2505-1 −50 to 110°C PS2505-2 / PS2805-4 −30 to 100°C Storage Temperature −55 to 125°C Junction Temperature 125°C Lead Soldering Temperature (10s) 260°C ISOCOM COMPONENTS 2004 LTD Unit 25B, Park View Road West, Park View Industrial Estate Hartlepool, Cleveland, TS25 1PE, United Kingdom Tel : +44 (0)1429 863 609 Fax : +44 (0)1429 863 581 e-mail : sales@isocom.co.uk http://www.isocom.com 2 30/08/2022 ISOCOM COMPONENTS ASIA LTD Hong Kong Office Block A, 8/F, Wah Hing Industrial Mansions 36 Tai Yau Street, San Po Kong, Kowloon, Hong Kong Tel : +852 2995 9217 Fax : +852 8161 6292 e-mail : sales@isocom.com.hk DE93301 PS2505-1, PS2505-2, PS2505-4 ELECTRICAL CHARACTERISTICS (Ambient Temperature = 25°C unless otherwise specified) INPUT Parameter Symbol Test Condition Forward Voltage VF Terminal Capacitance Min Typ. Max Unit IF = ±20mA 1.2 1.4 V Ct V = 0V, f = 1KHz 30 250 pF Symbol Test Condition Min Typ. Max Unit Collector—Emitter breakdown Voltage BVCEO IC = 0.1mA, IF = 0mA 80 V Emitter—Collector breakdown Voltage BVECO IE = 10µA, IF = 0mA 6 V ICEO VCE = 20V, IF = 0mA Symbol Test Condition Min CTR IF = ±5mA, VCE = 5V 80 VCE(sat) IF = ±20mA, IC = 1mA Floating Capacitance Cf Output Rise Time tr Output Fall Time OUTPUT Parameter Collector-Emitter Dark Current 100 nA Max Unit 600 % 0.1 0.2 V V = 0V, f= 1MHz 0.6 1 pF 4 18 µs tf VCE = 2V IC = 2mA RL = 100Ω 3 18 Symbol Test Condition Min Typ. Max Input to Output Isolation Voltage VISO R.H. = 40% to 60% t = 1 min 5000 Input to Output Isolation Resistance RISO VIO = 500VDC R.H. = 40% to 60% 5 x 1010 COUPLED Parameter Current Transfer Ratio Collector—Emitter Saturation Voltage Typ. ISOLATION Parameter Unit VRMS 1 x 1011 Ω Device is considered a two terminal device : Input pins are shorted together and Output pins are shorted together. 3 30/08/2022 DE93301 PS2505-1, PS2505-2, PS2505-4 Fig 1 Forward Current vs Ambient Temperature Fig 2 Collector Power Dissipation vs Ambient Temperature Fig 3 Collector Current vs Collector-Emitter Voltage (1) Fig 4 Collector Current vs Collector-Emitter Voltage (2) Fig 5 Current Transfer Ratio vs Forward Current Fig 6 Normalized Current Transfer Ratio vs Ambient Temperature 4 30/08/2022 DE93301 PS2505-1, PS2505-2, PS2505-4 Fig 7 Collector-Emitter Saturation Voltage vs Ambient Temperature Fig 8 Collector Dark Current vs Ambient Temperature Fig 9 Forward Current vs Forward Voltage Fig 10 Switching Time vs Load Resistance Response Time Test Circuit Fig 11 Frequency Response Frequency Response Test Circuit 5 30/08/2022 DE93301 PS2505-1, PS2505-2, PS2505-4 ORDER INFORMATION PS2505-1 (UL Approval) After PN PN Description Packing quantity None PS2505-1 Standard DIP4 100 pcs per tube G PS2505-1G 10mm Lead Spacing 100 pcs per tube SM PS2505-1SM Surface Mount 100 pcs per tube SMT&R PS2505-1SMT&R Surface Mount Tape & Reel 1000 pcs per reel PS2505-2 (UL Approval) After PN PN Description Packing quantity None PS2505-2 Standard DIP8 50 pcs per tube G PS2505-2G 10mm Lead Spacing 50 pcs per tube SM PS2505-2SM Surface Mount 50 pcs per tube SMT&R PS2505-2SMT&R Surface Mount Tape & Reel 1000 pcs per reel PS2505-4 (UL Approval) After PN PN Description Packing quantity None PS2505-4 Standard DIP16 25 pcs per tube G PS2505-4G 10mm Lead Spacing 25 pcs per tube SM PS2505-4SM Surface Mount 25 pcs per tube Consult Factory for Tape and Reel version of PS2505-4SM 6 30/08/2022 DE93301 PS2505-1, PS2505-2, PS2505-4 ORDER INFORMATION PS2505-1 (UL and VDE Approvals) After PN PN Description Packing quantity None PS2505-1X Standard DIP4 100 pcs per tube G PS2505-1XG 10mm Lead Spacing 100 pcs per tube SM PS2505-1XSM Surface Mount 100 pcs per tube SMT&R PS2505-1XSMT&R Surface Mount Tape & Reel 1000 pcs per reel PS2505-2 (UL and VDE Approvals) After PN PN Description Packing quantity None PS2505-2X Standard DIP8 50 pcs per tube G PS2505-2XG 10mm Lead Spacing 50 pcs per tube SM PS2505-2XSM Surface Mount 50 pcs per tube SMT&R PS2505-2XSMT&R Surface Mount Tape & Reel 1000 pcs per reel PS2505-4 (UL and VDE Approvals) After PN PN Description Packing quantity None PS2505-4X Standard DIP16 25 pcs per tube G PS2505-4XG 10mm Lead Spacing 25 pcs per tube SM PS2505-4XSM Surface Mount 25 pcs per tube Consult Factory for Tape and Reel version of PS2505-4XSM 7 30/08/2022 DE93301 PS2505-1, PS2505-2, PS2505-4 DEVICE MARKING PS2505-xX I YYWW EE PS2505-x Device Part Number where “x” denotes number of Channels 1 : Single Channel 2 : Dual Channel 4 : Quad Channel X VDE Option I Isocom YY 2 digit Year code (22, 23, etc.) WW 2 digit Week code EE UL Model 8 30/08/2022 DE93301 PS2505-1, PS2505-2, PS2505-4 PACKAGE DIMENSIONS in mm (inch) DIP PS2505-1 PS2505-2 PS2505-4 9 30/08/2022 DE93301 PS2505-1, PS2505-2, PS2505-4 PACKAGE DIMENSIONS in mm (inch) G Form PS2505-1G PS2505-2G PS2505-4G 10 30/08/2022 DE93301 PS2505-1, PS2505-2, PS2505-4 PACKAGE DIMENSIONS in mm (inch) SMD PS2505-1SM PS2505-2SM PS2505-4SM 11 30/08/2022 DE93301 PS2505-1, PS2505-2, PS2505-4 RECOMMENDED PAD LAYOUT FOR SMD (mm) PS2505-1SM PS2505-2SM PS2505-4SM 12 30/08/2022 DE93301 PS2505-1, PS2505-2, PS2505-4 TAPE AND REEL PACKAGING PS2505-1SMT&R PS2505 -2SMT&R Description Symbol Dimension mm (inch) Tape Width W 16 ± 0.3 (0.63) Pitch of Sprocket Holes P0 4 ± 0.1 (0.15) F 7.5 ± 0.1 (0.295) P2 2 ± 0.1 (0.079) P1 12 ± 0.1 (0.472) Distance of Compartment to Sprocket Holes Distance of Compartment to Compartment 13 30/08/2022 DE93301 PS2505-1, PS2505-2, PS2505-4 IR REFLOW SOLDERING TEMPERATURE PROFILE FOR SMD (One Time Reflow Soldering is Recommended) TP 260°C TP - 5°C TEMP (°C) Max Ramp Up Rate 3°C/s TL 217°C Tsmax 200°C tP Max Ramp Down Rate 6°C/s TL Tsmin 150°C ts Preheat 60s – 120s 25°C TIME (s) Time 25°C to Peak Temperature Profile Details Conditions Preheat - Min Temperature (TSMIN) - Max Temperature (TSMAX) - Time TSMIN to TSMAX (ts) 150°C 200°C 60s - 120s Soldering Zone - Peak Temperature (TP) - Time at Peak Temperature - Liquidous Temperature (TL) - Time within 5°C of Actual Peak Temperature (T P ̶ 5°C) - Time maintained above TL (tL) - Ramp Up Rate (TL to TP) - Ramp Down Rate (TP to TL) 260°C 10s max 217°C 30s max 60s - 100s 3°C/s max 6°C/s max Average Ramp Up Rate (Tsmax to TP) 3°C/s max Time 25°C to Peak Temperature 8 minutes max 14 30/08/2022 DE93301 DISCLAIMER Isocom Components is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical stress. It is the responsibility of the buyer, when utilizing Isocom Components products, to comply with the standards of safety in making a safe design for the entire system, and to avoid situations in which a malfunction or failure of such Isocom Components products could cause loss of human life, bodily injury or damage to property. In developing your designs, please ensure that Isocom Components products are used within specified operating ranges as set forth in the most recent Isocom Components products specifications. The Isocom Components products listed in this document are intended for usage in general electronics applications (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc.). These Isocom Components products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which may cause loss of human life or bodily injury (“Unintended Usage”). Unintended Usage include atomic energy control instruments, airplane or spaceship instruments, transportation Instruments, traffic signal instruments, combustion control instruments, medical Instruments, all types of safety devices, etc... Unintended Usage of Isocom Components products listed in this document shall be made at the customer’s own risk. Gallium arsenide (GaAs) is a substance used in the products described in this document. GaAs dust and fumes are toxic. Do not break, cut or pulverize the product, or use chemicals to dissolve them. When disposing of the products, follow the appropriate regulations. Do not dispose of the products with other industrial waste or with domestic garbage. The products described in this document are subject to the foreign exchange and foreign trade laws. The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed by Isocom Components for any infringements of intellectual property or other rights of the third parties which may result from its use. No license is granted by implication or otherwise under any intellectual property or other rights of Isocom Components or others. The information contained herein is subject to change without notice. 15 30/08/2022 DE93301
