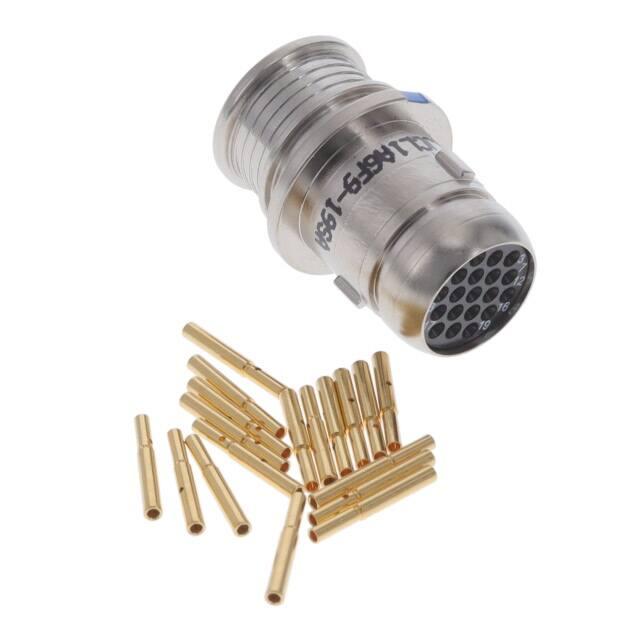

MKJCL1A6F9-19SA

MKJ Clip Lock (MKJ CL) Miniature Circular Connector Small, Lightweight & Competitively Priced, Our New MKJ CL Connector for Avionics & Cabin System Applications utilizes a Clip Lock Latching System. The Challenge Today’s commercial aerospace manufacturers are increasingly challenged to meet the ongoing demand for lighter, high reliability interconnect solutions that support a wide range of modernized Avionics and Cabin System applications. From high speed data and signal transfer for IFE/C, to glass cockpit functionality and aircraft environmental lighting, there is an increasing need for small, lightweight and competitively priced electrical connectors that deliver the highest level of performance, no matter the conditions or environment. The Solution ITT Cannon’s new MKJ Clip Lock (MKJ CL) miniature circular connector offers an ideal solution for today’s connectivity needs. Our smaller, lighter MKJ CL interconnect features an innovative clip lock latching system that we repurposed from a design originally used for the automotive industry. By eliminating higher cost components, we transformed it into a mil-style connector with a proven snap on positive lock dimension that is both robust and competitively priced. The CANNON Difference • Smaller, lighter design packages and configurations • Committed partner for off-the-shelf or custom interconnect solutions • High performance and reliability in the harshest environments Key Product Features • Easy-to-use and install with quick connect clip lock feature • Multiple keying options prevent mismating with 6 clocking positions • Available with diverse contact options - high-density size 23, size 20HD, size 16 or size 12 machined contacts • Fully machined aluminium or stainless steel shells • Field repairable • Plating: Electroless Nickel, Olive Drab Cadmium Black Zinc Nickel and Teflon Nickel Markets & Applications COMMERCIAL AEROSPACE AVIONICS & CABIN SYSTEMS MILITARY SOLDIER-WORN COMMUNICATIONS DEFENSE MISSILE SYSTEMS & MUNITIONS MEDICAL DIAGNOSTIC & MONITORING EQUIPMENT MKJ Clip Lock Miniature Circular Connector How to Order | Part Number Configurator MKJCL 1 A 1 F 7-10 P A ** Series MKJCL MKJ Clip Lock Series Coupling 1 Class A B C J K Positive Locking Environmental Plug and Receptacle with Banding/Overmolding Attachment Environmental Plug and Receptacle with Threaded Accessory Attachment Potted Plug - PC/Flex/Solder Non-Environmental (un-sealed) Plug and Receptacle with Banding/Overmolding Attachment Non-Enivornmental with Threaded Accessory Attachment Shell Style 1 6 4 11 12 In-Line Receptacle. Straight Plug. Plug Flange Mount Plug Flange Mount, Rotated 30 Degrees Plug Flange Mount, Rotated 45 Degrees Contact ITT for your additional configuration requirements Material/Plating F T W Z N Aluminum/Electroless Nickel Aluminum/Teflon Nickel Aluminum/OD Cad Aluminum/Zinc Nickel, Black Stainless Steel/Electroless Nickel Shell Size/Contact Arrangement 6-1 6-23 6-4 6-6 7-1 7-25 7-10 9-4 9-2 9-19 1 Size 16 3 Size 20HD 4 Size 23 6 Size 23 1 Size 12 5 Size 20HD 10 Size 23 4 Size 16 10 Size 20HD 19 Size 23 Contact Style P S B D E F Pin, Crimp, Removable Socket, Crimp, Removable Pin, PC Tail Socket, PC Tail Pin, Solder Cup, Potted, Non-Removable Socket, Solder Cup, Potted, Non-Removable Shell Clocking (Position) A B C D E F Omit for Single Key/Keyway Normal Clocking Position B Clocking Position C Clocking Position D Clocking Position E Clocking Position F K1° 150° 95° 135° 110° 285° 105° K2° 210° 210° 270° 245° 285° 255° Modification Codes - F0 - 518 Less Contacts (“F0” not stamped on the connector, but must be included on the P.O.) Potted connectors sealed are tested to maintain a helium leak rate of less than 1 x 10-4 cc/second at one atmosphere pressure differential (E & F contact style only) Connect with your ITT Cannon representative today or visit us at www.ittcannon.com Follow us CHINA - Shenzhen City +86.755.2726.7888 GERMANY - Weinstadt +49.7151.699.0 ITALY - Lainate +39.02938721 KOREA +82.2.702.7111 SHANGHAI + 86.21.2231.2222.2 UK - Basingstoke +44.1256.347400 FRANCE +33.1.60.04.93.93 HONG KONG +852.2732.2720 JAPAN - Kanagawa +81.462.57.2010 MEXICO - Nogales +52.631.311005 SINGAPORE +65 66974205 USA - Irvine, CA +1.800.854.3028 The “ITT Engineered Blocks“ symbol, “Engineered for life”, “ITT”, “Cannon” and “Veam“ are registered trademarks of ITT Inc. Specification and other data are based on information available at the time of printing, and are subject to change without notice. © 2021 ITT Inc ITT Cannon MKJ CL SS 032021
