IXD_602
2-Ampere Dual Low-Side
Ultrafast MOSFET Drivers
INTEGRATED CIRCUITS DIVISION
Features
Description
• 2A Peak Source/Sink Drive Current
• Wide Operating Voltage Range: 4.5V to 35V
• -40°C to +125°C Extended Operating Temperature
Range
• Logic Input Withstands Negative Swing of up to 5V
• Outputs May be Connected in Parallel for Higher
Drive Current
• Matched Rise and Fall Times
• Low Propagation Delay Time
• Low 10A Supply Current
• Low Output Impedance
The IXDF602/IXDI602/IXDN602 dual high-speed gate
drivers are especially well suited for driving the latest
IXYS MOSFETs and IGBTs. Each of the two outputs
can source and sink 2A of peak current while
producing voltage rise and fall times of less than 10ns.
The input of each driver is CMOS compatible, and is
virtually immune to latch up. Proprietary circuitry
eliminates cross conduction and current
“shoot-through.” Low propagation delay and fast,
matched rise and fall times make the IXD_602 family
ideal for high-frequency and high-power applications.
Applications
•
•
•
•
•
•
Efficient Power MOSFET and IGBT Switching
Switch Mode Power Supplies
Motor Controls
DC to DC Converters
Class-D Switching Amplifiers
Pulse Transformer Driver
The IXDN602 is configured as a dual non-inverting
driver, the IXDI602 is configured as a dual inverting
driver, and the IXDF602 has one inverting and one
non-inverting driver.
The IXD_602 family is available in a standard 8-pin
DIP (PI), an 8-pin SOIC (SIA), an 8-pin Power SOIC
with an exposed metal back (SI), and an 8-pin DFN
(D2) package.
Ordering Information
Part Number
IXDF602D2TR
IXDF602PI
IXDF602SI
IXDF602SITR
IXDF602SIA
IXDF602SIATR
IXDI602D2TR
IXDI602PI
IXDI602SI
IXDI602SITR
IXDI602SIA
IXDI602SIATR
IXDN602D2TR
IXDN602PI
IXDN602SI
IXDN602SITR

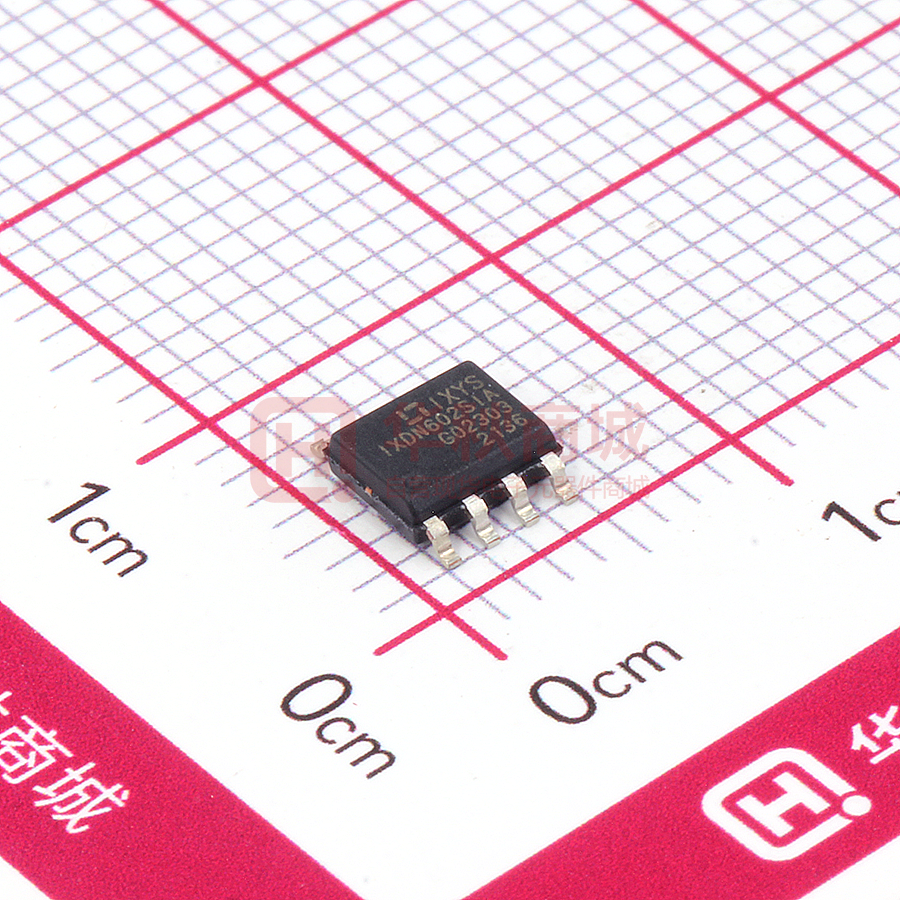

IXDN602SIA
IXDN602SIATR
DS-IXD_602-R07
Logic
Configuration
INA
A
OUTA
INB
B
OUTB
INA
A
OUTA
INB
B
OUTB
INA
A
OUTA
INB
B
OUTB
Package Type
Packing
Method
Quantity
8-Pin DFN
8-Pin DIP
8-Pin Power SOIC with Exposed Metal Back
8-Pin Power SOIC with Exposed Metal Back
8-Pin SOIC
8-Pin SOIC
8-Pin DFN
8-Pin DIP
8-Pin Power SOIC with Exposed Metal Back
8-Pin Power SOIC with Exposed Metal Back
8-Pin SOIC
8-Pin SOIC
8-Pin DFN
8-Pin DIP
8-Pin Power SOIC with Exposed Metal Back
8-Pin Power SOIC with Exposed Metal Back
8-Pin SOIC
8-Pin SOIC
Tape & Reel
Tube
Tube
Tape & Reel
Tube
Tape & Reel
Tape & Reel
Tube
Tube
Tape & Reel
Tube
Tape & Reel
Tape & Reel
Tube
Tube
Tape & Reel
Tube
Tape & Reel
2000
50
100
2000
100
2000
2000
50
100
2000
100
2000
2000
50
100
2000
100
2000
www.ixysic.com
1
IXD_602
INTEGRATED CIRCUITS DIVISION
1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1 Pin Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 Pin Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3 Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.4 Recommended Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.5 Electrical Characteristics: TA = 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.6 Electrical Characteristics: TA = - 40°C to +125°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.7 Thermal Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
3
3
3
3
4
4
5
2. IXD_602 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Timing Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Characteristics Test Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. Block Diagrams & Truth Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1 IXDI602 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2 IXDF602. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3 IXDN602 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
6
6
6
4. Typical Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5. Manufacturing Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1 Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2 ESD Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.3 Soldering Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.4 Board Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.5 Mechanical Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
www.ixysic.com
10
10
10
10
10
11
R07
IXD_602
INTEGRATED CIRCUITS DIVISION
1 Specifications
1.1 Pin Configurations
1.2 Pin Definitions
IXDF602
NC
1
INA
2
GND
3
INB
4
A
B
Pin Name
NC
7
OUTA
INA
Channel A Logic Input
6
VCC
INB
Channel B Logic Input
5
OUTB
IXDI602
NC
1
INA
2
GND
3
INB
4
A
B
Description
8
8
NC
7
OUTA
6
VCC
5
OUTB
8
NC
7
OUTA
6
VCC
5
OUTB
OUTA
OUTA
Channel A Output - Sources or sinks current to
turn-on or turn-off a discrete MOSFET or IGBT
OUTB
OUTB
Channel B Output - Sources or sinks current to
turn on or turn off a discrete MOSFET or IGBT
VCC
Supply Voltage - Provides power to the device
GND
Ground - Common ground reference for the
device
IXDN602
NC
1
INA
2
GND
3
INB
4
A
B
1.3 Absolute Maximum Ratings
Parameter
Symbol
Minimum
Maximum
Units
Supply Voltage
VCC
-0.3
40
V
Input Voltage
VIN
-5.0
VCC+0.3
V
Output Current
IOUT
-
±2
A
Junction Temperature
TJ
-55
+150
°C
Storage Temperature
TSTG
-65
+150
°C
Unless otherwise specified, absolute maximum electrical ratings are at 25°C
Absolute maximum ratings are stress ratings. Stresses in excess of these ratings can cause permanent damage to the device.
Functional operation of the device at conditions beyond those indicated in the operational sections of this data sheet is not
implied.
1.4 Recommended Operating Conditions
Parameter
Symbol
Range
Units
VCC
4.5 to 35
V
Operating Temperature Range
TA
-40 to +125
°C
R07
www.ixysic.com
Supply Voltage
3
IXD_602
INTEGRATED CIRCUITS DIVISION
1.5 Electrical Characteristics: TA = 25°C
Test Conditions: 4.5V < VCC < 35V, one channel (unless otherwise noted).
Parameter
Conditions
Symbol
Minimum
Typical
Maximum
Input Voltage, High
4.5V < VCC < 18V
VIH
3.0
-
-
Input Voltage, Low
4.5V < VCC < 18V
VIL
-
-
0.8
0V < VIN < VCC
IIN
-
-
±10
Output Voltage, High
-
VOH
VCC-0.025
-
-
Output Voltage, Low
-
VOL
-
-
0.025
Output Resistance, High State
VCC=18V, IOUT=-10mA
ROH
-
2.5
4
Output Resistance, Low State
VCC=18V, IOUT=10mA
ROL
-
1.5
3
IDC
-
-
±1
tr
Input Current
Units
V
A
V
Rise Time
Limited by package power
dissipation
VCC=18V, CLOAD=1000pF
-
7.5
15
Fall Time
VCC=18V, CLOAD=1000pF
tf
-
6.5
15
On-Time Propagation Delay
VCC=18V, CLOAD=1000pF
tondly
-
35
60
Off-Time Propagation Delay
VCC=18V, CLOAD=1000pF
toffdly
-
38
60
-
1
3
mA
-
