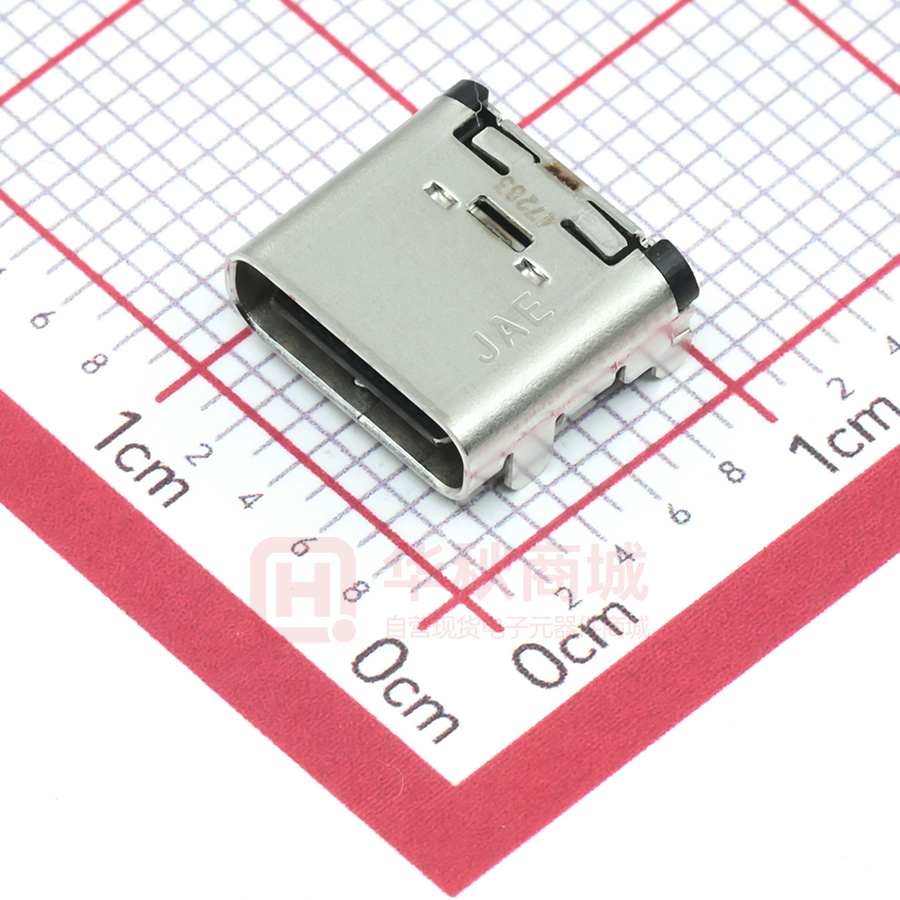

DX07S024JJ2R1300

COMPONENTS PRODUCT INFORMATION NEW CONNECTOR USB Type-C TM Connector DX07 Series Receptacle MB-0297-3 December 2015 RoHS Compliant 2 row SMT On-board Type Mid-mount Type Hybrid On-board Type Mid-mount Type The DX07 Series connectors are compatible with the next-generation USB specification “USB Type-CTM” and are expected to become popular as a standard interface for various devices. Note) USB Type-CTM is a trademark of USB Implementers Forum, Inc. Features Compatible with Universal Serial Bus Type-C Specification Release 1.1 Compatible with 10Gbps SuperSpeed communication. (USB 3.1 Gen 2) Compatible with USB Power Delivery. Reversible plug makes it possible to insert both ways. Superior EMI / EMC characteristics. Design for high mechanical strength. Lock structure with high durability. Contact mounting area is available in 2 types: space-saving 2 row SMT type, and hybrid type with superior solder mounting reworkability. Available in two mounting types: on-board and mid-mount. Applicable Markets Smartphones, tablets, PCs, high-definition camcorders, digital still cameras (singlelens reflex, compact), and others General Specifications No. of Contacts: 24 pos. Contact Resistance: 40mΩmax.(initial) Dielectric Withstanding Voltage: 100Vrms / 1 minute Insulation Resistance: 100M Ω (initial) Rated Current: Terminal No. A1, A4, A9, A12, B1, B4, B5, B9, B12 are DC 1.25A (maximum), Others are DC 0.25A Rated Voltage: 20Vrms Mating Cycles: 10,000 times Operating Temperature: -30 Deg. C to 80 Deg. C JAE PMK Div. Proprietary. Copyright © 2015, Japan Aviation Electronics Industry, Ltd. 1/7 MB-0297-3 Materials and Finishes 2 row SMT Type Hybrid Type Components Materials / Finishes Insulator 1, 2 Synthetic resin Contact A, B Copper alloy / Contact area: palladium over Ni plating - Au flash plating over nickel alloy Terminal area: Au flash plating over nickel Shell Stainless steel / Ni plating Stainless steel / black Ni plating Mid Plate Stainless steel / Ni plating Ground Plate Stainless steel / Ni plating Rear Shield Stainless steel / Ni plating Bracket - Stainless steel / Ni plating Note) Please refer to the product drawings for more details. Ordering Information [Receptacle Side] DX07 S 0 24 J J 2 R1300 Reel 1300 pcs. / reel Series DX07: USB Type C Modification Code #2 Plating Specification J: Contact area: palladium over nickel - Au flash plating over nickel alloy S: On-board, B: Mid-mount Modification Code #1 Board Connection Type (Shell area) J: 2 row SMT X: Hybrid (T/H & SMT) No. of Contacts: 24 pos. Part Number SJ Drawing DX07S024JJ2 (Individual Connector) DX07S024JJ2R1300 (Reeled Product) DX07S024JJ3 (Individual Connector) DX07S024JJ3R1300 (Reeled Product) DX07B024JJ1 (Individual Connector) DX07B024JJ1R1500 (Reeled Product) DX07B024JJ2 (Individual Connector) DX07B024JJ2R1500 (Reeled Product) DX07S024XJ1 (Individual Connector) DX07S024XJ1R1100 DX07B024XJ1 (Individual Connector) DX07B024XJ1R1300 SJ115946 SJ115947 SJ115994 SJ115995 SJ115850 SJ115851 SJ115996 SJ115997 SJ116123 SJ116124 SJ116121 SJ116122 Specifications Mounting Type Onboard JACS30353 Mid mount JACS30361 Onboard Mid mount Note Rear Shield Yes Rear Shield No Rear Shield Yes Rear Shield No Black Ni Plating Shell Note) Please order in reel units. JAE PMK Div. Proprietary. Copyright © 2015, Japan Aviation Electronics Industry, Ltd. 2/7 MB-0297-3 Unit: mm 4.7 CENTER HEIGHT 1.57 DX07S024JJ2 (Type with Rear Shield) SECT A-A 8.17 Rear Shield 0.6 3.14 8.94 DX07S024JJ3 (Type without Rear Shield) *Design is same as DX07S024JJ2 except the rear shield. Without Rear Shield JAE PMK Div. Proprietary. Copyright © 2015, Japan Aviation Electronics Industry, Ltd. 3/7 MB-0297-3 DX07B024JJ1 (Type with Rear Shield) Unit: mm CENTER HEIGHT 0.47 4.7 8.17 Rear Shield 3.14 8.94 SECT A-A DX07B024JJ2 (Type without Rear Shield) *Design is same as DX07B024JJ1 except the rear shield. Without Rear Shield JAE PMK Div. Proprietary. Copyright © 2015, Japan Aviation Electronics Industry, Ltd. 4/7 MB-0297-3 DX07S024XJ1 (On-board Type) JAE PMK Div. Proprietary. Copyright © 2015, Japan Aviation Electronics Industry, Ltd. Unit: mm 5/7 MB-0297-3 DX07B024XJ1 (Mid-mount Type) JAE PMK Div. Proprietary. Copyright © 2015, Japan Aviation Electronics Industry, Ltd. Unit: mm 6/7 MB-0297-3 Notice: 1. The values specified in this brochure are only for reference. The products and their specifications are subject to change without notice. Contact our sales staff for further information before considering or ordering any of our products. For purchase, a product specification must be agreed upon. 2. Users are requested to provide protection circuits and redundancy circuits to ensure safety of the equipment, and sufficiently review the suitability of JAE's products to the equipment. 3. The products presented in this brochure are designed for the uses recommended below. We strongly suggest you contact our sales staff when considering use of any of the products in any other way than the recommended applications or for a specific use that requires an extremely high reliability. (1) Applications that require consultation: (i) Please contact us if you are considering use involving a quality assurance program that you specify or that is peculiar to the industry, such as: Automotive electrical components, train control, telecommunications devices (mainline), traffic light control, electric power, combustion control, fire prevention or security systems, disaster prevention equipment, etc. (ii) We may separately give you our support with a quality assurance program that you specify, when you think of a use such as : Aviation or space equipment, submarine repeaters, nuclear power control systems, medical equipment for life support, etc. (2) Recommended applications include: Computers, office appliances, telecommunications devices (terminals, mobile units), measuring equipment, audiovisual equipment, home electric appliances, factory automation equipment, etc Product Marketing Division Aobadai Building, 3-1-19, Aobadai, Meguro-ku, Tokyo 153-8539 Phone: +81-3-3780-2882 FAX: +81-3-3780-2946 * The specifications in this brochure are subject to change without notice. Please contact JAE for information. JAE PMK Div. Proprietary. Copyright © 2015, Japan Aviation Electronics Industry, Ltd. 7/7 COMPONENTS PRODUCT INFORMATION NEW CONNECTOR USB Type-CTM Connector MB-0301-2 January 2016 DX07 Series Plug RoHS Compliant Plug Protection Cap * Plug will be packaged with the protection cap on. Slim Plug The DX07 Series connectors are compatible with the next-generation USB specification “USB Type-CTM” and are expected to become popular as a standard interface for various devices. Note) USB Type-CTM is a trademark of USB Implementers Forum, Inc. Features Compatible with Universal Serial Bus Type-C Specification Release 1.1 Compatible with 10Gbps SuperSpeed communication. (USB 3.1 Gen 2) Compatible with USB Power Delivery. Reversible plug makes it possible to insert both ways. Superior EMI / EMC characteristics. Design for high mechanical strength. Superior lock structure with high durability and clear click feeling during mating. Easy to insert with a smooth “R” on the tip of the mating area of the metal outer shell. Applicable Markets Smartphones, tablets, PCs, high-definition camcorders, digital still cameras (single-lens reflex, compact), and others General Specifications No. of Contacts: 24 pos. Contact Resistance: 40mΩmax.(initial) Dielectric Withstanding Voltage: 100Vrms / 1 minute Insulation Resistance: 100M Ω (initial) Rated Current: Terminal No. A1, A4, A9, A12, B1, B4, B5, B9, B12 are DC 1.25A (maximum), Others are DC 0.25A Rated Voltage: 20Vrms Mating Cycles: 10,000 times Operating Temperature: -30 Deg. C to +80 Deg. C JAE PMK Div. Proprietary. Copyright © 2016, Japan Aviation Electronics Industry, Ltd. 1/7 MB-0301-2 Materials and Finishes Component Material / Finish Contact Copper alloy / Contact area: palladium over nickel plating - Au flash plating over nickel alloy Terminal area: Au flash plating over nickel Ground Spring Stainless steel / nickel plating Friction Lock Stainless steel / nickel plating Shell Stainless steel / nickel plating Insulator Heat resistant resin / Black (Halogen-free) Inner Insulator Heat resistant resin / Black (Halogen-free) Insulation Tape Polyimide Protection Cap Heat resistant resin / Black (Halogen-free) Note) Please refer to the product drawings for more details. Ordering Information [Plug Side] DX07 P 0 24 * J 1 R**** Series DX07: USB Type C No. of pcs. per reel Modification Code #1 P: Plug Modification Code #0 No. of Contacts: 24 pos. Plug Plug Slim Plug Plating Specification J: Contact area: palladium over nickel - Au flash plating over nickel alloy Plug Type - M: Plug A: Slim Plug Part Number SJ Drawing DX07P024MJ1 (Individual Connector) SJ115803 DX07P024MJ1R1500 (Reeled Product) SJ115804 DX07P024AJ1 (Individual Connector) SJ116680 DX07P024AJ1R1500 (Reeled Product) SJ116681 Specifications JACS-30353 Note) Please order in reel units. JAE PMK Div. Proprietary. Copyright © 2016, Japan Aviation Electronics Industry, Ltd. 2/7 MB-0301-2 DX07P024MJ1 (Plug) Unit: mm Cable Hood Recommended Hood Dimensions JAE PMK Div. Proprietary. Copyright © 2016, Japan Aviation Electronics Industry, Ltd. 3/7 MB-0301-2 DX07P024MJ1 (Plug) Recommended PCB Layout Unit: mm Cable Hood Recommended Hood Dimensions JAE PMK Div. Proprietary. Copyright © 2016, Japan Aviation Electronics Industry, Ltd. 4/7 MB-0301-2 DX07P024AJ1 (Slim Plug) Unit: mm JAE PMK Div. Proprietary. Copyright © 2016, Japan Aviation Electronics Industry, Ltd. 5/7 MB-0301-2 DX07P024AJ1 (Slim Plug) Recommended PCB Layout Unit: mm Recommended Board Dimensions JAE PMK Div. Proprietary. Copyright © 2016, Japan Aviation Electronics Industry, Ltd. 6/7 MB-0301-2 Notice: 1. The values specified in this brochure are only for reference. The products and their specifications are subject to change without notice. Contact our sales staff for further information before considering or ordering any of our products. For purchase, a product specification must be agreed upon. 2. Users are requested to provide protection circuits and redundancy circuits to ensure safety of the equipment, and sufficiently review the suitability of JAE's products to the equipment. 3. The products presented in this brochure are designed for the uses recommended below. We strongly suggest you contact our sales staff when considering use of any of the products in any other way than the recommended applications or for a specific use that requires an extremely high reliability. (1) Applications that require consultation: (i) Please contact us if you are considering use involving a quality assurance program that you specify or that is peculiar to the industry, such as: Automotive electrical components, train control, telecommunications devices (mainline), traffic light control, electric power, combustion control, fire prevention or security systems, disaster prevention equipment, etc. (ii) We may separately give you our support with a quality assurance program that you specify, when you think of a use such as : Aviation or space equipment, submarine repeaters, nuclear power control systems, medical equipment for life support, etc. (2) Recommended applications include: Computers, office appliances, telecommunications devices (terminals, mobile units), measuring equipment, audiovisual equipment, home electric appliances, factory automation equipment, etc. Product Marketing Division Aobadai Building, 3-1-19, Aobadai, Meguro-ku, Tokyo 153-8539 Phone: +81-3-3780-2882 FAX: +81-3-3780-2946 * The specifications in this brochure are subject to change without notice. Please contact JAE for information. JAE PMK Div. Proprietary. Copyright © 2016, Japan Aviation Electronics Industry, Ltd. 7/7
