FI-NXB40SL-HF10-R3000

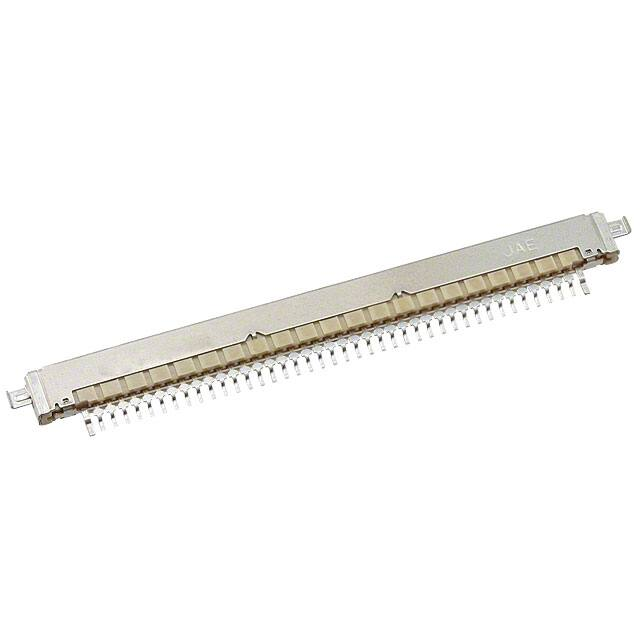

COMPONENTS PRODUCT INFORMATION NEW Board-to-Cable Connector for High-Speed Differential Transmission FI-NX Series CONNECTOR MB-0171-2 December 2008 NEW The FI-NX Series is a board-to-cable LCD interface connector designed for high-speed differential transmission. A discrete wire (twisted pair) plug with crimp contacts has been added to the existing product line-up. Features 0.8mm contact pitch, 40pos. connecter for LVDS transmission, compatible with the VESA 8-bit color LCD standard. LCD (LED back light) interface for notebook PC, cable plug available in solder type for fine coaxial wire, or crimp type for discrete wire. Superb impedance matching suitable for high-speed differential transmission. Low profile, 1.0mm mating height of board-side receptacle (standard bottom mount type). Metal shell provides superb shielding. Hold downs on the receptacle serve a dual purpose to reinforce board retention, and also act as ground contacts. When the connector is mated, the plug and receptacle shells connect to allow the plug shell to be grounded. Receptacle incorporates a ground plate that is connected to the board through ground terminals located at both ends of the connection area. Ni barrier layer is included as a solder diffusion countermeasure for receptacle contacts. Mechanical lock included to withstand vibration and shock. Mating side of plug has a guide that adjusts misalignments to ensure easy and secure mating. Pb-free product. General Specifications No. of Contacts : 40 pos. Contact Resistance: 40m ohm max. Dielectric Withstanding Voltage : AC 500Vr.m.s per minute Operating Temperature: -40 Deg. C to +80 Deg. C Rated Current: AC, DC each 0.5A per pos. Rated Voltage: AC, DC each 200V per pos. Insulation Resistance: 100M ohm min. Contact Pitch: 0.8mm JAE PMK Div. Proprietary. Copyright © 2008 Japan Aviation Electronics Industry, Ltd. 1/10 MB-0171-2 Product Line-up Receptacle (LCD Side) FI-NXB40SL-HF10 Plug (Solder Type) FI-NX40CL FI-NX40CL-SH02-7000 Plug (Crimp Type) NEW FI-NX40HL FI-NXC3-1-15000 FI-NX Note) Existing FI-X Crimp tool and applicator of existing FI-X Series can be used. (Attachment has to be changed). JAE PMK Div. Proprietary. Copyright © 2008 Japan Aviation Electronics Industry, Ltd. 2/10 MB-0171-2 Materials and Finishes Component Material / Finish Crimp Contact Stainless steel/ Sn plating Magazine Paper Paper Tape Paper JAE PMK Div. Proprietary. Copyright © 2008 Japan Aviation Electronics Industry, Ltd. 3/10 MB-0171-2 Ordering Information Receptacle Connector (SJ107066) FI-NX B 40 S * L - HF 10 10 : Mounted Height 1.0mm Series B: Bottom Type (Hold-down Type) No. of Contacts: 40 pos. S: Receptacle HF: Angle L: Compatible With Lock None: Standard Type (R: Reverse Type) Unit: mm Drawing when mated (for reference) Recommended dimension of board JAE PMK Div. Proprietary. Copyright © 2008 Japan Aviation Electronics Industry, Ltd. 4/10 MB-0171-2 Ordering Information Receptacle Connector Emboss Product (SJ107067) FI-NXB 40 SL - HF10 - R3000 R: Embossed Reel: 3000pcs. Unit: mm JAE PMK Div. Proprietary. Copyright © 2008 Japan Aviation Electronics Industry, Ltd. 5/10 MB-0171-2 Plug Connector (SJ107068) Ordering Information FI-NX 40 C L Series No. of Contacts: 40 pos. C: Solder Plug L: With Lock Unit: mm Drawing when cable is mated (for reference) Applicable wire processing dimensions (for reference) JAE PMK Div. Proprietary. Copyright © 2008 Japan Aviation Electronics Industry, Ltd. 6/10 MB-0171-2 Ordering Information Plug Connector Slide Shell (SJ107069) FI-NX 40 Series C L - SH02 - 7000 Package: 7000pcs. No. of Contacts: 40 pos. C: Solder Plug SH: Slide Shell L: Compatible With Lock Unit: mm JAE PMK Div. Proprietary. Copyright © 2008 Japan Aviation Electronics Industry, Ltd. 7/10 NEW MB-0171-2 Ordering Information Plug Connector (SJ107370) FI-NX 40 H L Series No. of Contacts: 40 pos. H: Crimp Plug L: With Lock Unit: mm Drawing when mated (for reference) JAE PMK Div. Proprietary. Copyright © 2008 Japan Aviation Electronics Industry, Ltd. 8/10 NEW MB-0171-2 Plug Crimp Contact (SJ107371) Ordering Information FI-NX C3 1 15000 Series C3: Crimp Contact Package: 15000pcs. 1: Au Plating on Contact Area Applicable Wire: 30 to 36 AWG, twisted pair Coated Diameter: 0.45 to 0.50 mm dia. Unit: mm JAE PMK Div. Proprietary. Copyright © 2008 Japan Aviation Electronics Industry, Ltd. 9/10 MB-0171-2 Related Information -Specifications(JACS): JACS-10393 -Specifications(JACS) Crimp: JACS-10393-2 NEW -Handling Instructions(JAHL): JAHL-10393 -Handling Instructions(JAHL) Crimp: JAHL-10393-2 Japan Aviation Electronics Industry, Limited Product Marketing Division Aobadai Building, 3-1-19, Aobadai, Meguro-ku, Tokyo 153-8539 Phone: +81-3-3780-2787 FAX: +81-3-3780-2946 NEW Notice: Products shown in this leaflet are made for the applications listed below. However, if the above-mentioned products are to be used in aerospace devices, marine cable-connection devices, atomic power control systems, medical equipment for life-support systems, or any other specific application requiring extremely high reliability, please contact JAE for further information. Recommended applications: computers, office machines, measuring devices, telecommunication devices (terminals, mobile devices), AV devices, household applications, FA devices, etc. * The specifications in this brochure are subject to change without notice. Please contact JAE for information. JAE PMK Div. Proprietary. Copyright © 2008 Japan Aviation Electronics Industry, Ltd. 10/10
