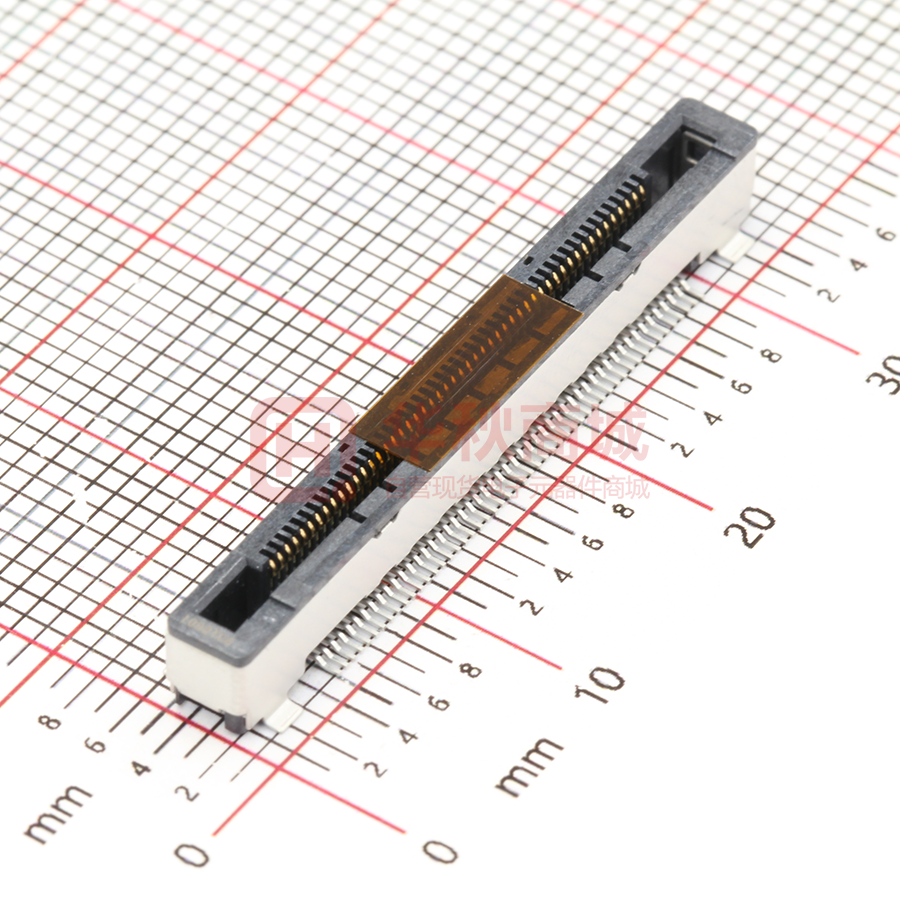

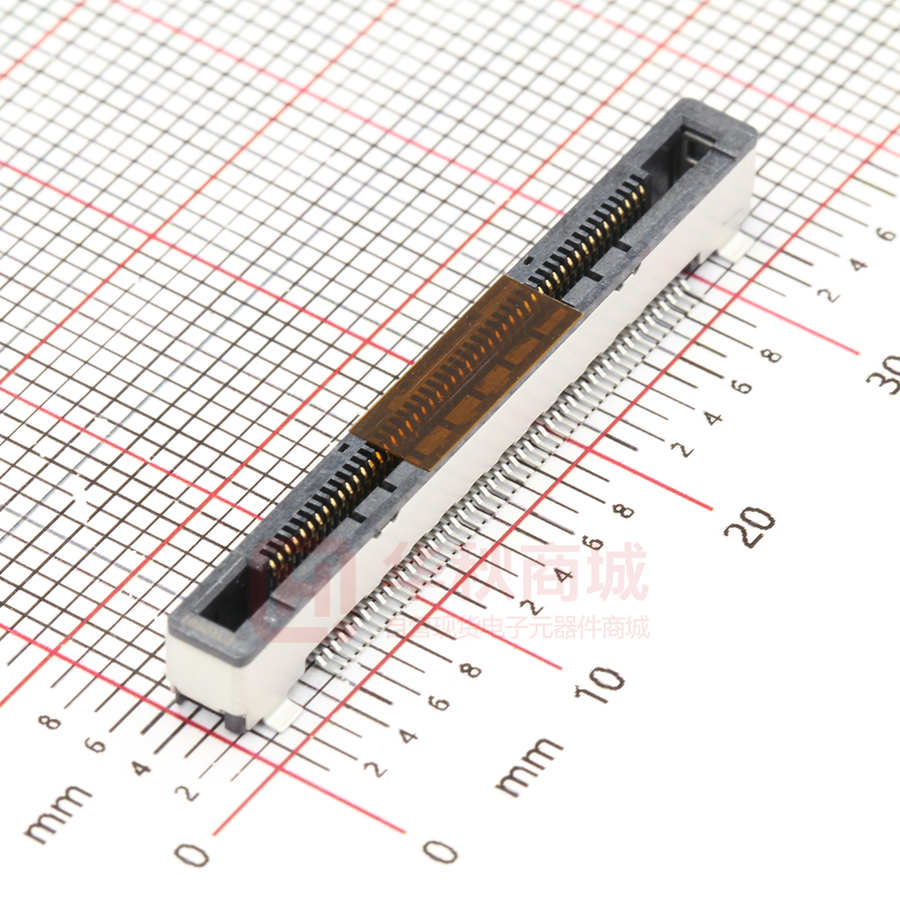

COMPONENTS PRODUCT INFORMATION NEW Connector for Internal Serial Transmission CONNECTOR MB-0153-2 October 2008 FI-R Series RoHS Compliant High-speed serial transmission such as LVDS, TMDS (HDMI), and PCI Express are widely used in applications in a variety of markets including the personal computer, TV, consumer device, copier, and medical device markets. In these applications connectors not only need to have the ability to transmit signals at high speed, but they also must have the durability, ease of mating, and variety of options to respond to the demands of all designs. The FI-R is the ideal connector series to meet these demands. Features •0.5mm terminal pitch, 3.8mm connector, compact design with 21, 31, 41, and 51 positions. •Stable mating with large mating guides on the Plug. •Strong PCB retention with solder hold-downs on the Receptacle. •Impedance matching: 100 ohm. Ground reinforced by shell structure and hold-downs. •Receptacle options include with and without shell, and right-angle and straight types, all with a common footprint. •Mechanical lock to prevent mis-mating and accidental unmating. •Plug options for discrete wire crimping, fine coaxial wire soldering, and FFC to suit a variety of needs. •VESA standard connector for TV LCD interface. JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd. 1/15 MB-0153-2 General Specification Receptacle A1. FI-RE**S-HF (Right-angle, shell type) A2. FI-RE**S-VF (Straight, shell type ) ■No. of Contacts: 21, 31, 41, 51pos. ■Contact Resistance: 50m ohm max. ■Dielectric Withstanding Voltage: AC500Vr.m.s, 1 minute ■Operating Temperature: -40Deg. C to +80Deg. C ■Rated Current: AC, DC 0.8A each / terminal ■Insulation Resistance: 100M ohm min. ■Pitch: 0.5mm Plug, Crimp Type B1. FI-RE**HL (Mechanical lock, shell type) B2. FI-RC3-1A-1E-15000 (Crimp for upper contact ) B3. FI-RC3-1B-1E-15000 (Crimp for lower contact ) ■No. of Contacts: 21, 31, 41, 51pos. ■Contact Resistance: 50m ohm max. ■ Dielectric Withstanding Voltage: AC500Vr.m.s, 1 minute ■Operating Temperature: -40Deg. C to +80Deg. C ■Rated Current: AC, DC 0.7A each / terminal ■Insulation Resistance: 100M ohm min. ■Pitch: 0.5mm ■Applicable Cable: 30, 32, 36 AWG Plug, Solder Type C1. FI-RE**CL (Mechanical lock, shell type) C2. FI-RE**CL-SH2-3000 (Cover shell for solder type) ■No. of Contacts: 21, 31, 41, 51pos. ■Contact Resistance: 50m ohm max. ■Dielectric Withstanding Voltage: AC500Vr.m.s, 1 minute ■Operating Temperature: -40Deg. C to +80Deg. C ■Rated Current: AC, DC 0.7A each / terminal ■Insulation Resistance: 100M ohm min. ■Pitch: 0.5mm ■Applicable Cable: Coaxial cable 40 AWG JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd. 2/15 MB-0153-2 Materials and Finishes Receptacle A1. FI-RE**S-HF (Right-angle, shell type) Component Contact Insulator Shell Material and Finish Copper alloy / Contact area Au, SMT Terminal area Sn plating Heat resistant plastic / None Stainless steel / None A2. FI-RE**S-VF (Straight, shell type) Component Contact Insulator Shell Material and Finish Copper alloy / Contact area Au, SMT Terminal area Sn plating Heat resistant plastic / None Stainless steel / None Plug, Crimp Type B1. FI-RE**HL (Mechanical lock, shell type) Component Press Fit Shell Insulator Lock Spring Material and Finish Copper alloy / Sn plating Heat resistant plastic / None Stainless steel / None B2. FI-RC3-1A-1E-15000 (Crimp for upper contact) Component Contact Material and Finish Phosphor bronze / Contact area Au, Terminal area Sn plating B3. FI-RC3-1B-1E-15000 (Crimp for lower contact ) Component Contact Material and Finish Phosphor bronze / Contact area Au, Terminal area Sn plating 3/15 JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd. MB-0153-2 Materials and Finishes Plug, Solder Type C1. FI-RE**CL (Mechanical lock, shell type) Component Contact Press Fit Shell Insulator Lock Spring Material and Finish Copper alloy / Contact area Au, Terminal area Sn plating Copper alloy / Sn plating Heat resistant plastic / None Stainless steel / None C2. FI-RE**CL-SH2-3000 (Cover shell for solder type) Component Cover Shell Material and Finish Stainless steel / None JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd. 4/15 MB-0153-2 Ordering Information Receptacle (Right-angle, shell type) Individual Connector (SJ102934 ) FI-R E ** S - HF Series E: Shell Type Receptacle No. of Contacts : 21, 31, 41, 51 pos. Right-Angle Type A1 Unit: mm Drawing when mated (for reference) Recommended board dimensions Dimensions JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd. 5/15 MB-0153-2 Ordering Information Receptacle (Right-angle, shell type) Embossed Tape Reel (SJ102937 ) FI-R E ** S - HF – R1500 Series E: Shell Type No. of Contacts: 21, 31, 41, 51 pos. Embossed Tape 1500pcs. per reel Right-Angle Type Receptacle A1 Unit: mm Dimensions JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd. 6/15 MB-0153-2 Ordering Information Receptacle (Straight, shell type) Individual Connector (SJ102933 ) FI-R E ** S - VF Series E: Shell Type No. of Contacts: 21, 31, 41, 51 pos. Straight Type Receptacle A2 Unit: mm Recommended board dimensions Drawing when mated (for reference) Dimensions JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd. 7/15 MB-0153-2 Ordering Information Receptacle (Straight, shell type) Embossed Tape Reel (SJ102936 ) FI-R E ** S - VF - R1300 Series E: Shell Type No. of Contacts : 21, 31, 41, 51 pos. Straight Type Receptacle Embossed Tape 1300pcs. per reel A2 Unit: mm Dimensions JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd. 8/15 MB-0153-2 Ordering Information Plug, Crimp Type (Lock, shell type) Individual Connector (SJ103279 ) FI-R E ** H L Series E: Shell Type Plug, Crimp Type No. of Contacts: 21, 31, 41, 51 pos. L: With Mechanical Lock B1 Unit: mm Drawing when mated (for reference) Dimensions JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd. 9/15 MB-0153-2 Ordering Information Upper Contact for Crimp Housing (SJ103060 ) FI-R C3 – 1A – 1E – 15000 Series Magazine Assembly Contact for Crimp Housing 1A: Upper Contact 15000pcs. / reel Modification Code B2 Unit: mm JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd. 10/15 MB-0153-2 Ordering Information Lower Contact for Crimp Housing (SJ103061 ) FI-R C3 – 1A – 1E – 15000 Series Contact for Crimp housing 1B: Lower Contact Magazine Assembly 15000pcs. / reel Modification Code B3 Unit: mm JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd. 11/15 MB-0153-2 Ordering Information Plug, Solder Type (Lock, shell type) (SJ104311 ) FI-R E ** C L Series E: Shell Type No. of Contacts : 21, 31, 41, 51 pos. L: With Mechanical Lock Plug, Solder Type C1 Unit: mm Drawing when cable is connected (for reference) Dimensions JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd. 12/15 MB-0153-2 Ordering Information Cover Shell for Solder Type (SJ104716 ) FI-R E ** C L - SH2 - 3000 Series E: Shell Type No. of Contacts : 21, 31, 41, 51 pos. Embossed Tape 3000pcs. per reel Cover Shell L: With Mechanical Lock Plug Solder Type C2 Unit: mm Dimensions JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd. 13/15 MB-0153-2 Lineup Receptacle Number of Contacts 21 31 41 51 Type Shell Shell Shell Shell Mounting Direction Right-angle Straight Right-angle Straight Right-angle Straight Right-angle Straight Part Number FI-RE21S-HF FI-RE21S-VF FI-RE31S-HF FI-RE31S-VF FI-RE41S-HF FI-RE41S-VF FI-RE51S-HF FI-RE51S-VF Reel Part Number FI-RE21S-HF-R1500 FI-RE21S-VF-R1300 FI-RE31S-HF-R1500 FI-RE31S-VF-R1300 FI-RE41S-HF-R1500 FI-RE41S-VF-R1300 FI-RE51S-HF-R1500 FI-RE51S-VF-R1300 Plug, Crimp Type Number of Contacts 21 31 41 51 Type Shell Shell Shell Shell Mechanical Lock Yes Yes Yes Yes Part Number FI-RE21HL FI-RE31HL FI-RE41HL FI-RE51HL Plug, Solder Type Number of Contacts 21 31 41 51 Type Mechanical Lock Yes Part Number Cover Shell Part Number FI-RE21CL-SH2-3000 FI-RE31CL-SH2-3000 FI-RE41CL-SH2-3000 FI-RE51CL-SH2-3000 Shell FI-RE21CL FI-RE31CL FI-RE41CL FI-RE51CL JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd. 14/15 MB-0153-2 Related Documents ・Contact Crimp Tool (Manual) Part Number: CT150-4C-FIR Handling Instruction: T700276 ・Contact Crimp Tool (Semi-automatic machine) Press Machine Part Number: CT215-4B Handling Instruction: T707064 Applicator Part Number: 350-FI-2B Handling Instruction: T703263 Japan Aviation Electronics Industry, Limited Product Marketing Division Aobadai Building, 3-1-19, Aobadai, Meguro-ku, Tokyo 153-8539 Phone: +81-3-3780-2787 FAX: +81-3-3780-2946 Notice: Products shown in this leaflet are made for the applications listed below. However, if the above-mentioned products are to be used in aerospace devices, marine cable-connection devices, atomic power control systems, medical equipment for life-support systems, and any other specific application requiring extremely high reliability, please contact JAE for further information. Recommended applications: Computers, Office machines, Measuring devices, Telecommunication devices (Terminals, Mobile devices), AV devices, Household applications, FA devices, etc. 15/15 * The specifications in this brochure are subject to change without notice. Please contact JAE for information. JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
