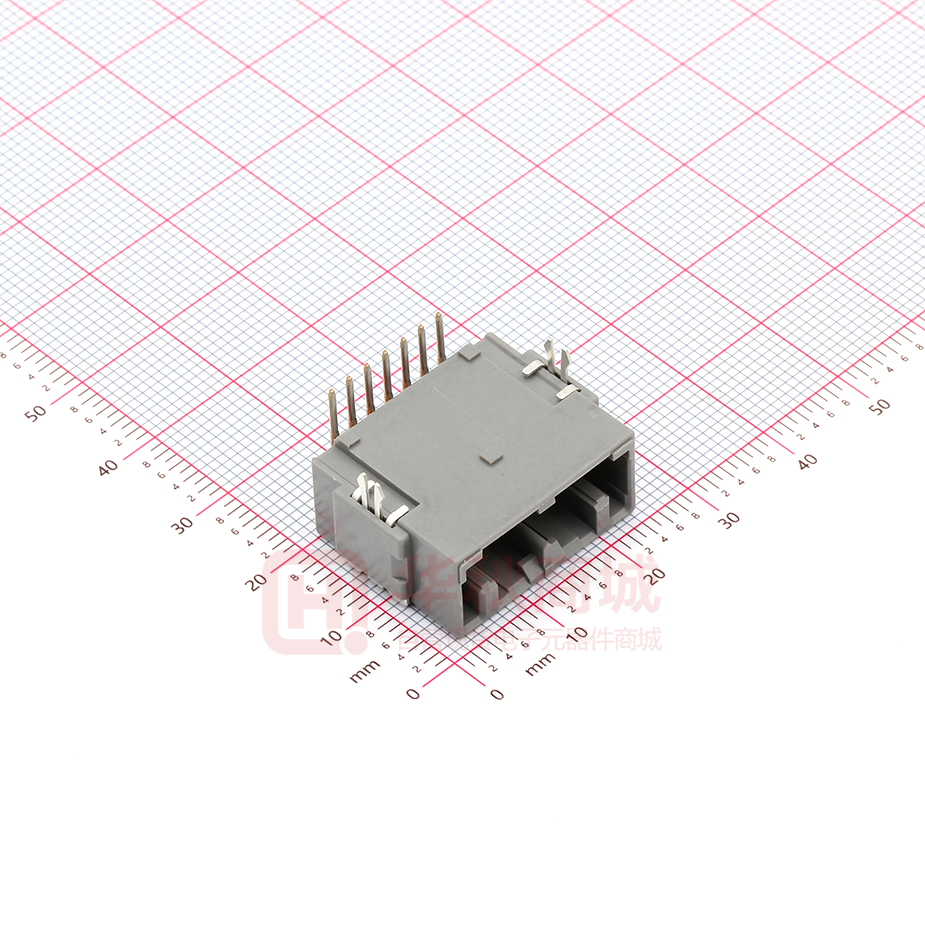

MX34007NF1

COMPONENTS PRODUCT INFORMATION NEW Compact Automotive Connectors for PCB-to-Cable Applications CONNECTOR MB-0175-1 MX34 Series (for Low Pin Counts) October 2007 RoHS Compliant Compact, single row type connectors have been developed to add to the existing line of MX34 Series connectors for automobiles. The available pin counts are 3, 5 and 7 positions, available in straight and angle pin header type. (Straight type is available in 5 and 7 positions) Hook pins are placed on both sides for easier board attachment. An 8 position, double row type has also been developed. Features •Compact, single row PCB-to-cable connector with 2.2 mm horizontal pitch. (8 pos. is available in double row, 2.4mm pitch) •Hook pins are placed on both sides for easier board attachment. •Socket contact with box-type pin header is durable in external forces; contact is highly resistant to twisting and equipped with a proven double leaf spring. (In common with MX34 Series double row type) • Adoption of a preset-type retainer facilitates easy wire harness operation. If retainer is not completely inserted in housing, the connector is not engaged, and incomplete contact insertion is detected. •Lock spring is equipped with a bridge protecting the contacts from external load. General Specifications •No. of Contacts: Single row 3, 5, 7 pos. Double row 8 pos. •Contact Resistance: 5m  max. (initial) •Dielectric Withstanding Voltage: AC 1000V (per minute) •Operating Temperature: •Rated Current: 3A •Insulation Resistance: 100M  min. •Durability: 50 times •Applicable Wire: Please refer to next page -40 Deg. C to +85 Deg. C JAE PMK Div. Proprietary. Copyright © 2007, Japan Aviation Electronics Industry, Ltd. 1/7 MB-0175-1 Materials and Finishes •Socket Connector Component Socket Housing Retainer Material and Finish PPE+PA66 (ALLOY) PPE+PA66 (ALLOY) •Pin Connector Component Pin Insulator Pin Contact Hook Pin Material and Finish SPS GF 30 Brass / Sn plating Copper alloy / Sn plating •Socket Contact Component Socket Contact Material and Finish Highly conductive material / Sn plating Applicable Wire Part Number M34S75C4F1 M34S75C4F2 M34S75C4F3 M34S75C4F4 Applicable Wire AVSS0.3mm 2 , CHFUS0.22mm 2~0.35mm 2 AVSS0.5mm 2 , CHFUS0.5mm 2 ~0.75mm 2 CAN　SD　0.35mm 2 (Note1) AVSS0.85mm 2 (Note1) SJ Drawing SJ038527 SJ038528 SJ038747 SJ038893 Note 1: M34S75CF3 and M34S75CF4 can only be inserted in double row cavities on both sides, two housing cavities in total. (8 position type can be inserted in any area.) Crimp Tool Part Number M34S75C4F1 M34S75C4F2 M34S75C4F3, 4 Withdrawal Tool Hand Crimp Tool Semi Automatic Applicator Automatic Applicator CT150-2-MX34 350-MX34D-2 350-MX34D-3B CT150-1-MX34 -------350-MX34C-2 350-MX34C-3B ET-MX34-1 JAE PMK Div. Proprietary. Copyright © 2007, Japan Aviation Electronics Industry, Ltd. 2/7 MB-0175-1 Outer Dimensions •Socket Housing No. Diameter of each area Part Number SJ Drawing of A B 3 MX34003SF1 SJ100823 4.4 10.8 5 MX34005SF1 SJ100825 8.8 15.2 7 MX34007SF1 SJ104416 13.2 19.6 •Socket Contact 1. M34S75C4F1, F2 2. M34S75C4F3, F4 JAE PMK Div. Proprietary. Copyright © 2007, Japan Aviation Electronics Industry, Ltd. 3/7 MB-0175-1 •Angle Pin Header No. of pos. 3 5 7 Diameter of each area Part Number SJ Drawing MX34003NF1 SJ100824 MX34005NF1 SJ100826 MX34007NF1 SJ104514 A B C D E F 4.4 8.8 13.2 13.8 18.4 22.8 13.2 17.8 22.2 15.8 20.4 24.8 3.9 8.5 12.9 7.8 12.4 16.8 JAE PMK Div. Proprietary. Copyright © 2007, Japan Aviation Electronics Industry, Ltd. 4/7 MB-0175-1 •Straight Pin Header No. of Part Number SJ Drawing pos. 5 MX34005UF1 SJ104369 7 MX34007UF1 SJ104370 Diameter of each area A B C D E F 8.8 13.2 17.8 22.2 18.4 22.8 20.4 24.8 11.3 15.7 12.3 16.7 Note 1: 3 position not available for straight pin header JAE PMK Div. Proprietary. Copyright © 2007, Japan Aviation Electronics Industry, Ltd. 5/7 MB-0175-1 Shape of Double Row 8 Position Type •Angle Pin Header (MX34E08NF1) SJ Drawing: SJ106197 JAE PMK Div. Proprietary. Copyright © 2007, Japan Aviation Electronics Industry, Ltd. 6/7 MB-0175-1 Shape of Double Row 8 Position Type •Socket Housing (MX34E08SF1) SJ Drawing: SJ106203 Others Specification Handling Instructions JACS-1754 JAHL-1754 Product Marketing Division Aobadai Building, 3-1-19, Aobadai, Meguro-ku, Tokyo 153-8539 Phone: +81-3-3780-2787 FAX: +81-3-3780-2946 Notice: Products shown in this brochure are made for the applications listed below. However, if the above-mentioned products are to be used in aerospace devices, marine cable-connection devices, atomic power control systems, medical equipment for lifesupport systems, or any other specific application requiring extremely high reliability, please contact JAE for further information. Recommended applications: Computers, Office machines, Measuring devices, Telecommunication devices (Terminals, Mobile devices), AV devices, Household applications, FA devices, etc. * The specifications in this brochure are subject to change without notice. Please contact JAE for information. JAE PMK Div. Proprietary. Copyright © 2007, Japan Aviation Electronics Industry, Ltd. 7/7
