MX34024NF1

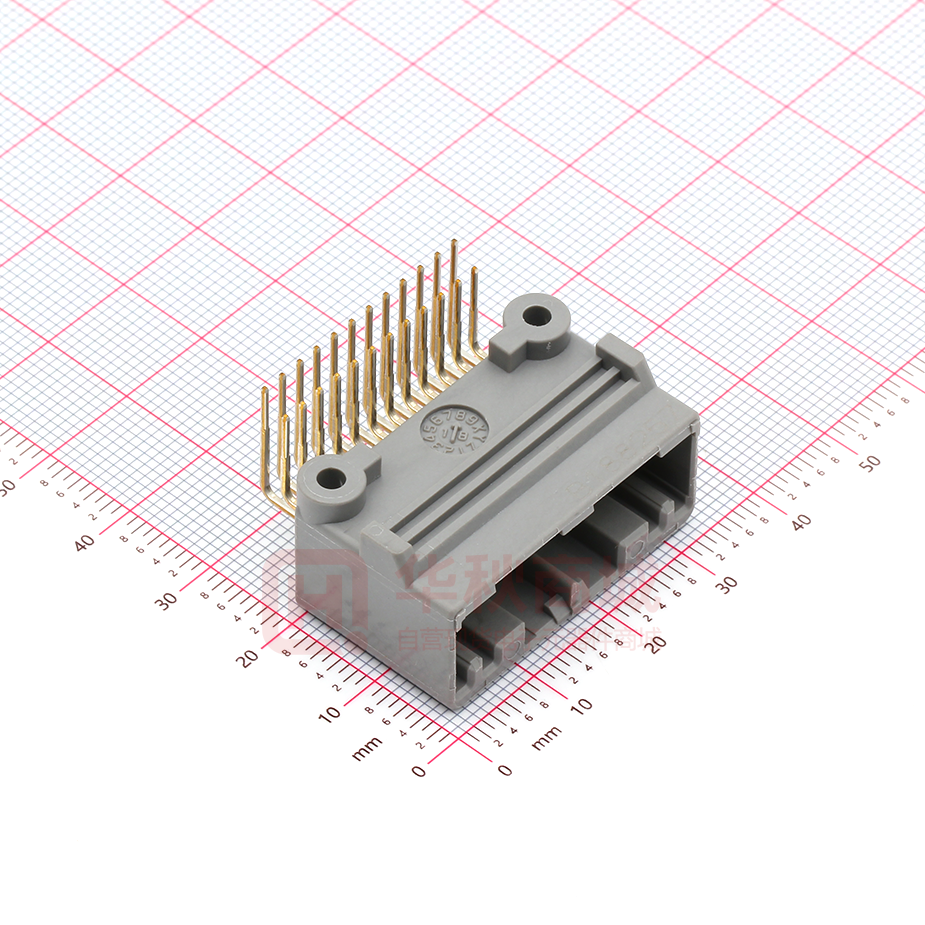

COMPONENTS PRODUCT INFORMATION NEW Compact Automotive Connectors for PCB-to-Cable Applications CONNECTOR MB-0116-3 MX34 Series January 2007 RoHS　Compliant The MX34 Series connectors are compact, non-waterproof connectors with a double row of contacts, and are developed for automotive use. The up to 40 poles reduces mating and unmating force to 80N or less and improves workability. Furthermore, automotive connector requirements such as the preset type of double locking mechanism and box type of pin header are satisfied. Features •Compact, lightweight, double row PCB-to-cable connector with 2.2 mm horizontal pitch and 3 mm diagonal pitch. •Up to 40 poles reduces the mating and unmating force to 80N or less. •Socket contact with box-type pin header is durable to external force; contact part is highly resistant to twisting and equipped with a proven double leaf spring. • Adoption of a preset-type retainer facilitates easy wire harness operation. If retainer is not completely inserted in housing, the connector is not engaged, and incomplete contact insertion is detected. •Lock spring is equipped with a bridge protecting the contacts from external load. General Specifications •No. of contacts: 12, 16, 20, 24, 28, 32, 36, 40 pos. •Contact resistance: 5m ohm max. (initial) •Dielectric withstanding voltage: AC 1000V (per minute) •Operating temperature: •Insulation resistance: 100M ohm min •Durability: 50 times •Applicable wire: Please refer to next page -40 Deg. C to +85 Deg. C •Rated current: 3A 1/6 JAE PMK Div. Proprietary. Copyright © 2007，Japan Aviation Electronics Industry, Ltd. MB-0116-3 Materials and Finishes Socket Connector Components Socket housing Retainer Materials and Finishes 66NY+PPE(ALLOY) 66NY+PPE(ALLOY) Pin Connector Components Pin insulator Pin contact Pin contact2 Materials and Finishes SPS GF 30 Brass/Sn plating Brass/Sn plating Socket Contact Components Socket contact Materials and Finishes Highly conductive material/ Sn plating Applicable Wire Part Number M34S75C4F1 M34S75C4F2 M34S75C4F3 M34S75C4F4 Applicable Wire AVSS0.3mm2, CHFUS0.22mm2~0.35mm2 AVSS0.5mm2, CHFUS0.5mm2~0.75mm2 CAN　SD　0.35mm2(note1) AVSS0.85mm2(note2) SJ Drawing SJ038527 SJ038528 SJ038747 SJ038893 Note 1: M34S75CF3 and M34S75CF4 can only be inserted in double row cavities on both sides, four housing cavities in total. Crimp Tool Part Number M34S75C4F1 M34S75C4F2 M34S75C4F3, 4 Withdrawal Tool Hand Crimp Tool Semi Automatic Applicator Automatic Applicator CT150-2-MX34 350-MX34B-2 350-MX34B-3B CT150-1-MX34 -------350-MX34C-2 350-MX34C-3B ET-MX34-1 2/6 JAE PMK Div. Proprietary. Copyright © 2007，Japan Aviation Electronics Industry, Ltd. MB-0116-3 Outside Dimension Socket housing No. of pos. 12 16 20 24 28 32 36 40 Part Number SJ Drawing MX34012SF1 MX34016SF1 MX34020SF1 MX34024SF1 MX34028SF1 MX34032SF1 MX34036SF1 MX34040SF1 SJ100717 SJ038754 SJ038752 SJ100271 SJ038623 SJ038756 SJ100270 SJ038526 Diameter(A) Diameter(B) 11.0 15.4 19.8 24.2 28.6 33.0 37.4 41.8 16.3 20.7 25.1 29.5 33.9 38.3 42.7 47.1 3/6 JAE PMK Div. Proprietary. Copyright © 2007，Japan Aviation Electronics Industry, Ltd. MB-0116-3 Angle Pin Header No. of pos. 12 16 20 24 28 32 36 40 Part Number SJ Drawing MX34012NF1 MX34016NF1 MX34020NF1 MX34024NF1 MX34028NF2 MX34032NF2 MX34036NF2 MX34040NF2 SJ100715 SJ038753 SJ038751 SJ100269 SJ106304 SJ106305 SJ106307 SJ106309 Diameter(A) Diameter(B) Diameter(C) 11.0 15.4 19.8 24.2 28.6 33.0 37.4 41.8 13.1 17.5 21.9 26.3 30.7 35.1 39.5 43.9 19.1 23.5 27.9 32.3 36.7 41.1 45.5 49.9 4/6 JAE PMK Div. Proprietary. Copyright © 2007，Japan Aviation Electronics Industry, Ltd. MB-0116-3 Straight Pin Header No. of pos. 12 16 20 24 28 32 36 40 Part Number SJ Drawing MX34012UF1 MX34016UF1 MX34020UF1 MX34024UF1 MX34028UF2 MX34032UF2 MX34036UF2 MX34040UF2 SJ100716 SJ038766 SJ038765 SJ100221 SJ106312 SJ106313 SJ106314 SJ106315 Diameter(A) Diameter(B) Diameter(C) 11.0 15.4 19.8 24.2 28.6 33.0 37.4 41.8 19.1 23.5 27.9 32.3 36.7 41.1 45.5 49.9 25.1 29.5 33.9 38.3 42.7 47.1 51.5 55.9 5/6 JAE PMK Div. Proprietary. Copyright © 2007，Japan Aviation Electronics Industry, Ltd. MB-0116-3 Socket Contact 1. M34S75C4F1, F2 2. M34S75C4F3, F4 Others Specification Specification JACS-1754 Notice: Products shown in this leaflet are Handling Handling Instructions Instructions JACS-1754 Japan Aviation Electronics Industry, Limited Product Marketing Division Aobadai Building, 3-1-19, Aobadai, Meguro-ku, Tokyo 153-8539 Phone: +81-3-3780-2787 FAX: +81-3-3780-2946 made for the applications listed below. However, if the above-mentioned products are to be used in aerospace devices, marine cable-connection devices, atomic power control systems, medical equipment for life-support systems, or any other specific application requiring extremely high reliability, please contact JAE for further information. Recommended applications: Computers, Office machines, Measuring devices, Telecommunication devices (Terminals, Mobile devices), AV devices, Household applications, FA devices, etc. * The specifications in this brochure are subject to change without notice. Please contact JAE for information. JAE PMK Div. Proprietary. Copyright © 2007，Japan Aviation Electronics Industry, Ltd. 6/6
