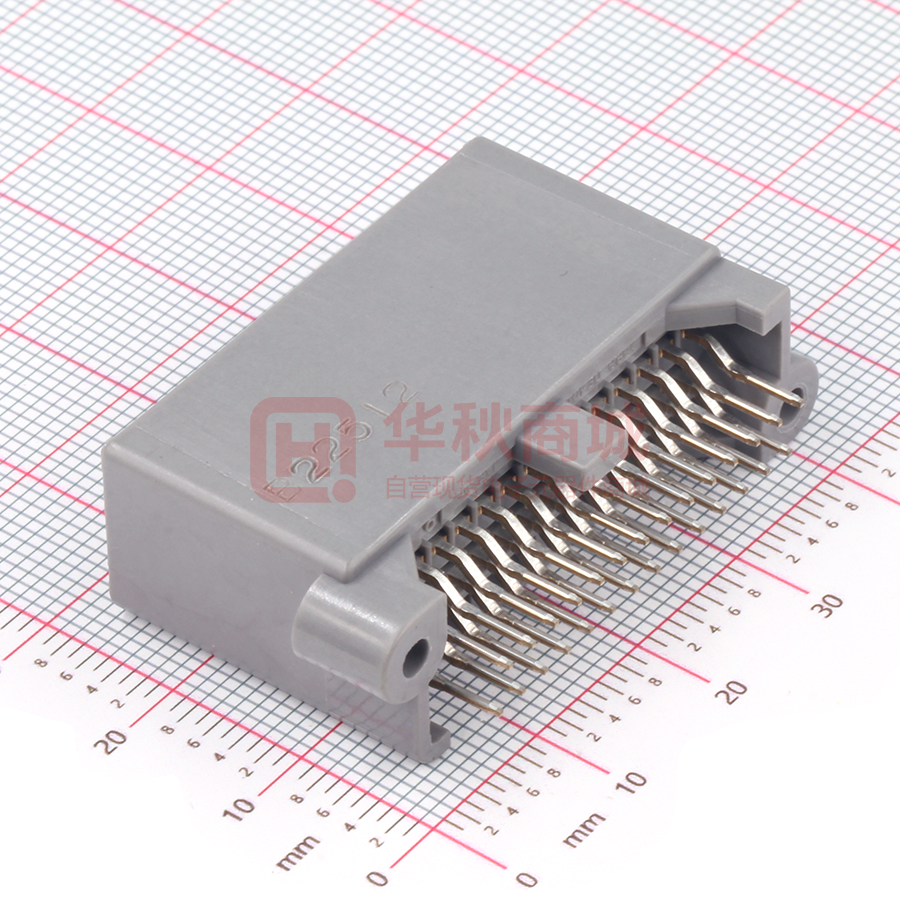

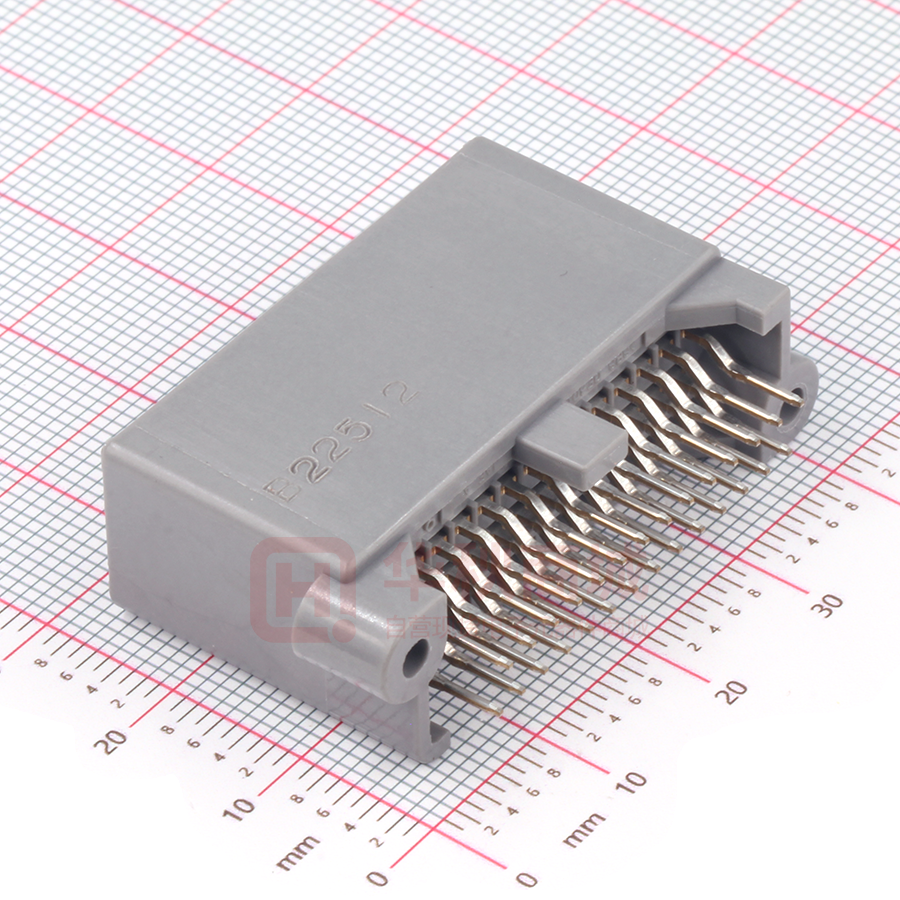

MX34028UF2

COMPONENTS PRODUCT INFORMATION Compact Automotive Connector with 0.64mm Size Terminal CONNECTOR MX34 Series MB-0360-3 Nov.2021 RoHS Compliant The MX34 series is a non-waterproof connector with a 0.64 mm size terminal that meets various requirements for automotive applications, and has been adopted for many automotive ECU applications. Since its development, a lineup for MX34 Series has been enhanced with a wide variety of variations. Applicable Market General purpose automotive electrical control units (ECU), battery system components for electric vehicles (EV), and Battery Management System applications (BMS) Features ・Non-waterproof connector with 0.64mm size terminals ・Durable socket terminal that uses a 2-layer spring structure for contact area ・Retainer that detects incomplete insertion of terminals during harness work ・ Bridge structure on the lock spring supports external load ・ Variations for pin side is available for inline connection, and SMT or DIP mounting type for vertical and horizontal connection to board ・ USCAR2 tested General Specifications Number of Contacts 3~40 position (please refer to next page for details) Rated Current 3A Contact Resistance 5mΩ max. (initial) Insulation Resistance 100MΩ min. 10mΩ max. (posttest) Mating Cycles 50 times AC 1000V r.m.s for 1 minute Operating Temperature -40℃ ~+85℃ Dielectric Withstanding Voltage JAE Connector Div. Proprietary. Copyright © 2021, Japan Aviation Electronics Industry, Ltd. 1/12 MB-0360-3 Ordering Information MX34 0 03 S F *(~) Modification Code* : Please refer to Page 5 onwards for further details Series Connector Type 0: Standard E: 8 position in different array Q: Reflow DIP Type R: SMT Type Number of Contacts: 03 ~ 40 positions Plating Specification F: Sn plating Connection Type Cable connection S: Socket side, P: Pin side Board connection (for pin side only) Angle) N: DIP, H: SMT Straight) U: Flow DIP, T: Reflow DIP, V: SMT Product List and Mating Combinations Socket Side Number of Contacts Cable connection 3 MX34003SF1 ⇔ 5 MX34005SF1 ⇔ 7 MX34007SF1 ⇔ Pin Side Cable connection Board connection Angle Flow DIP MX34003NF1 MX34003NF3 MX34005NF1 Angle SMT MX34007NF1 MX34R05HF4T MX34R07HF4T MX34R07HF4R150 MX34007SF4 ⇔ 12 MX34E08NF3 MX34012SF1 ⇔ MX34012PF1 ー 20 MX34020SF1 ⇔ MX34020PF1 MX34024SF1 ⇔ (Note 1) MX34024SF4 ⇔ 28 MX34028SF1 ⇔ MX34007UF1 MX34E08NF1 16 MX34016SF1 ⇔ MX34016PF1 24 MX34005UF1 MX34R08HF4T MX34E08SF1 ⇔ MX34012SF4 ⇔ Straight SMT MX34007UF4 MX34008SF4 ⇔ 8 Straight Reflow DIP MX34R03HF4T MX34005NF3 MX34R05HF4R150 (Note 1) Straight Flow DIP MX34012NF1 MX34012NF3 MX34R12HF4T MX34012UF1 MX34R12VF1 MX34012UF3 MX34012NF4 MX34R12HF8T MX34012UF4 MX34016NF1 MX34R16HF4T MX34016UF1 MX34016NF3 MX34R16HF4R110 MX34016UF3 MX34020NF1 MX34020NF3 MX34024NF1 MX34024NF3 MX34R20HF4T MX34R24HF4T MX34020UF1 MX34020UF3 MX34Q20ATF8T40 MX34R20VF1 MX34024UF1 MX34024UF3 MX34024NF4 (Note 1) MX34028NF2 MX34028NF3 MX34R28HF4T MX34032NF2 MX34032SF1 ⇔ MX34032NF3 MX34R32HF4T MX34032SF4 ⇔ MX34032NF4 MX34R32HF8T MX34032NF5 MX34R32HFDT MX34036NF2 MX34R36HF4T MX34028UF2 MX34028UF3 MX34032UF2 MX34Q32BTF1 MX34032UF3 MX34Q32BTF1T30 32 MX34R32VF1 MX34Q32BTF1R200 MX34032SF5 ⇔ 36 MX34036SF1 ⇔ 40 MX34040SF1 ⇔ MX34Q32BTF2-1T30 MX34036UF2 MX34036NF3 MX34R36HF4R110 MX34036UF3 MX34040NF2 MX34040UF2 MX34040NF3 MX34040UF3 Note 1) Please use MX84 series cables, for 7, 24, and 28 cable connection including the socket side. (For MX84 series, please refer to reference number MB-0330-*.) JAE Connector Div. Proprietary. Copyright © 2021, Japan Aviation Electronics Industry, Ltd. 2/12 MB-0360-3 Materials and Finishes Socket Housing (Cable connection) Component Material Housing PPE＋PA66 (ALLOY) Retainer PPE＋PA66 (ALLOY) Housing Socket Contact (Cable connection) Component Contact Retainer Material / Finish Highly Conductive Copper Alloy / Sn plating Pin Housing (Cable connection) Component Material / Finish Housing PPE＋PA66(ALLOY) Retainer PPE＋PA66(ALLOY) Contact Housing Retainer Pin Contact (Cable connection) Component Contact Material / Finish Highly Conductive Copper Alloy / Sn plating Angle Pin Header (Flow DIP) Component Material / Finish Housing SPS GF 30 Contact Brass/ Sn plating Hook Pin Copper Alloy / Sn plating *With screw hole, not available for pin count larger than 12 position Contact Housing Hook Pin Angle Pin Header (SMT) Component Material / Finish Housing PPS GF 40 Contact Copper Alloy / Sn plating Leg Brass/ Sn plating Contact Housing Leg JAE Connector Div. Proprietary. Copyright © 2021, Japan Aviation Electronics Industry, Ltd. Contact 3/12 MB-0360-3 Materials and Finishes Straight Pin Header (Flow DIP) Components Material / Finish Housing SPS GF 30 Contact Brass / Sn plating Hook Pin Copper alloy / Sn plating *With screw hole, not available for pin count larger than 12 position Hook Pin Contact Straight Pin Header (Reflow DIP) Components Material / Finish Housing PPS GF 40 Contact Copper alloy / Sn plating Leg Brass / Sn plating *Not available for 20 position Housing Housing Leg Contact Straight Pin Header (SMT) Components Material / Finish Housing PPS GF 40 Contact Copper alloy / Sn plating Hold-down Brass / Sn plating Hold-down Housing Contact JAE Connector Div. Proprietary. Copyright © 2021, Japan Aviation Electronics Industry, Ltd. 4/12 MB-0360-3 Drawing Number ■Socket Housing / Pin Housing (Cable connection type) Num ber of Cont acts 3 5 7 8 12 16 20 24 28 32 36 40 Socket Housing Part Number MX34003SF1 MX34005SF1 MX34007SF1 MX34007SF4 (Note MX34008SF4 MX34E08SF1 (Note MX34012SF1 MX34012SF4 (Note MX34016SF1 MX34020SF1 MX34024SF1 MX34024SF4 (Note MX34028SF1 MX34032SF1 MX34032SF4 (Note MX34032SF5 (Note MX34036SF1 MX34040SF1 Pin Housing Drawing 3) 2) 3) 3) 3) 3) SJ100823 SJ100825 SJ104416 SJ109859 SJ109127 SJ106203 SJ100717 SJ108275 SJ038754 SJ038752 SJ100271 SJ107990 SJ038623 SJ038756 SJ114408 SJ114627 SJ100270 SJ038526 Part Number ⇔ ⇔ ⇔ ⇔ ⇔ ⇔ ⇔ ⇔ ⇔ ⇔ ⇔ ⇔ ⇔ ⇔ ⇔ ⇔ ⇔ ⇔ Drawing （Note 1） MX34012PF1 SJ111563 MX34016PF1 MX34020PF1 （Note 1） SJ112590 SJ104399 （Note 1） Note 1) Please use MX84 series cables, for 7, 24, and 28 cable connection including the socket side. (For MX84 series, please refer to reference number MB-0330-*. Note 2) Basically, for the mating combination of socket side and pin side the insulators should be of the same or similar color. However, for MX34E08~ socket side is light blue and the pin side is black. In addition, the contact arrangement of the mating part of the MX34E08~ is different from that of the MX34008~. (See the figure below) ＜MX34008SF4＞ (Standard type) ＜MX34E08SF1＞ Note 3) This product is different key mating type. JAE Connector Div. Proprietary. Copyright © 2021, Japan Aviation Electronics Industry, Ltd. 5/12 MB-0360-3 Drawing Number ■Socket Contact (For cable connection type) Part Number Drawing M34S75C4F1 SJ038527 M34S75C4F2 SJ038528 M34S75C4F3 (Note 4) M34S75C4F4 (Note 4) M34S75C4F5 SJ038747 SJ038893 SJ109336 Applicable Cable 2 AVSS 0.3mm ,CHFUS 0.22~0.35mm2 AVSS 0.5mm2,CHFUS 0.5~0.75mm2 CAVS 0.5mm2,CHFS 0.75mm2 CAN SD 0.35mm2 AVSS 0.85mm2,CAVS 0.85mm2 CHFUS 0.13mm2 Note 4) M34S75C4F3 / 4 can only be inserted into the two housing cavity positions at the both ends of the connector. (8 position type MX34E08SF1 can be inserted in all locations.) ・Handling Instruction for Crimp tool for Socket Contact is as below. Applicable Contact M34S75C4F1 M34S75C4F2 M34S75C4F5 M34S75C4F3,4 Hand Crimp Tool CT150-2-MX34 (T700261) CT150-2B-MX34 (T700261) ー CT150-2C-MX34 (T700392) Semi-automatic Applicator Automatic Applicator 3502-MX34D-2 (T703418) 3502-MX34D-3B (T703501) 3502-MX34C-2 (Please contact us for details) 3502-MX34C-3B (Please contact us for details) ・ Extraction tool for Socket Contact is “ET-MX34-1” (T711140). ■Pin Contact (Cable connection type) Part Number Drawing M34P75C4F1 SJ103146 M34P75C4F2 SJ103147 M34P75C4F5 SJ109337 Applicable Cable (Note) AVSS 0.3mm2, CHFUS 0.22~0.35mm2 AVSS 0.5mm2, CHFUS 0.5~0.75mm2 CAVS 0.5mm2 CHFUS 0.13mm2 ・Handling Instruction for Crimp tool for Pin Contact is a below. Applicable Contact M34P75C4F1 M34P75C4F2 M34P75C4F5 Hand Crimp Tool Semi-automatic Applicator Automatic Applicator CT150-2-MX34 (T700261) CT150-2B-MX34 (T700261) ー 3502-MX34D-2 (T703418) 3502-MX34D-3B (T703501) ・ Extraction tool for Pin contact is “ET-MX34P-1” (T711154). JAE Connector Div. Proprietary. Copyright © 2021, Japan Aviation Electronics Industry, Ltd. 6/12 MB-0360-3 Drawing Number ■ Angle Pin Header Num ber of Cont acts 3 5 7 8 12 Socket Housing Part Number 20 24 32 40 ⇔ Please refer to Page 5 ⇔ MX34008SF4 Please refer to Page 5 ⇔ MX34007NF1 MX34E08NF1 MX34E08NF3 (Note 5) MX34012NF1 Please refer MX34012SF1 to Page 5 ⇔ MX34012NF3 (Note 5) MX34E08SF1 Please refer to Page 5 Please refer to Page 5 ⇔ Please refer to Page 5 Please refer to Page 5 ⇔ MX34032SF4 Please refer to Page 5 Please refer to Page 5 Please refer to Page 5 Please refer to Page 5 Part Number SJ100824 MX34R03HF4T SJ110997 SJ100826 MX34R05HF4T SJ116927 MX34R05HF4R150 (Note 6) MX34R07HF4T SJ104514 MX34R07HF4R150 (Note 6) SJ106197 SJ116929 SJ100715 SJ107602 Drawing SJ110327 SJ110328 SJ118052 SJ110662 SJ118053 MX34R08HF4T SJ110338 MX34R12HF4T SJ110663 MX34R12HF8T(Note 3) SJ114629 SJ038753 MX34R16HF4T SJ107603 MX34R16HF4R110 (Note 6) SJ038751 MX34R20HF4T SJ107604 SJ100269 MX34R24HF4T SJ107605 SJ110664 SJ118054 SJ110665 SJ110666 SJ106304 SJ107606 SJ106305 SJ107607 MX34R28HF4T SJ119976 MX34R32HF4T SJ110668 ⇔ MX34032NF4 (Note 3) SJ114407 MX34R32HF8T (Note 3) SJ114413 ⇔ MX34032NF5 (Note 3) SJ114626 MX34R32HFDT (Note 3) SJ114628 ⇔ MX34036NF2 MX34036NF3 (Note 5) MX34040NF2 Please refer MX34040SF1 to Page 5 ⇔ MX34040NF3 (Note 5) MX34036SF1 Angle Pin Header (SMT) ⇔ MX34024NF4 (Note 3) SJ107989 MX34028NF2 MX34028NF3 (Note 5) MX34032NF2 Please refer MX34032SF1 to Page 5 ⇔ MX34032NF3 (Note 5) MX34028SF1 Drawing ⇔ MX34012NF4 (Note 3) SJ118320 MX34016NF1 MX34016NF3 (Note 5) MX34020NF1 Please refer MX34020SF1 to Page 5 ⇔ MX34020NF3 (Note 5) MX34024NF1 Please refer MX34024SF1 to Page 5 ⇔ MX34024NF3 (Note 5) MX34016SF1 MX34032SF5 36 Please refer to Page 5 MX34007SF1 MX34024SF4 28 Part Number Drawing MX34003NF1 MX34003NF3 (Note 5) MX34005NF1 Please refer MX34005SF1 to Page 5 ⇔ MX34005NF3 (Note 5) MX34003SF1 MX34012SF4 16 Angle Pin Header (Flow DIP) ⇔ SJ106307 MX34R36HF4T SJ110669 SJ107608 MX34R36HF4R110 (Note 6) SJ118055 SJ106309 SJ107609 Note 3) This product is different key mating type. Note 5) Contacts for part number (~F3) is post plated, (~F1 or ~F2) is pre plated. The only difference between the two last digits of the part number is plating. Note 6) Only the packaging (~T : stick, ~R : embossed) of these 2 items are different. JAE Connector Div. Proprietary. Copyright © 2021, Japan Aviation Electronics Industry, Ltd. 7/12 MB-0360-3 Drawing Number ■Straight Pin Header Number of Contacts 5 7 Socket Housing Part Number MX34005SF1 MX34007SF1 MX34007SF4 Straight Pin Header (Flow DIP) Part Number Drawing ⇔ MX34005UF1 SJ104369 ⇔ MX34007UF1 SJ104370 Drawing Please refer to Page 5 Please refer to Page 5 Please refer to Page 5 ⇔ MX34012SF1 Please refer to Page 5 ⇔ MX34012SF4 Please refer to Page 5 ⇔ 16 MX34016SF1 Please refer to Page 5 ⇔ 20 MX34020SF1 Please refer to Page 5 ⇔ 24 MX34024SF1 Please refer to Page 5 ⇔ 28 MX34028SF1 Please refer to Page 5 ⇔ 12 MX34032SF1 Please refer to Page 5 MX34032SF4 Please refer to Page 5 ⇔ 36 MX34036SF1 Please refer to Page 5 ⇔ 40 MX34040SF1 Please refer to Page 5 ⇔ 32 Number of Contacts 12 20 32 Straight Pin Header (Reflow DIP) ⇔ MX34007UF4 (Note 3) MX34012UF1 MX34012UF3 (Note 5) MX34012UF4 (Note 3) MX34016UF1 MX34016UF3 (Note 5) MX34020UF1 MX34020UF3 (Note 5) MX34024UF1 MX34024UF3 (Note 5) MX34028UF2 MX34028UF3 (Note 5) SJ108274 SJ038766 SJ107611 SJ038765 SJ107612 SJ100221 SJ107613 SJ106312 SJ107614 SJ107615 SJ106314 Please refer to Page 5 MX34020SF1 MX34032SF1 MX34Q32BTF1 (Note 8) MX34Q32BTF1T30 (Note 8) MX34Q32BTF1R200 (Note 8) MX34Q32BTF2-1T30 (Note 3) SJ119062 SJ121243 SJ121453 SJ121244 SJ107616 SJ106315 SJ107617 Socket Housing MX34012SF1 SJ121464-1 SJ107610 MX34032UF3 (Note 5) Drawing MX34Q20ATF8T40 (Note 7) SJ100716 SJ106313 Part Number Drawing SJ109858 MX34032UF2 MX34036UF2 MX34036UF3 (Note 5) MX34040UF2 MX34040UF3 (Note 5) Part Number Straight Pin Header (SMT) Part Number Drawing ⇔ MX34R12VF1 SJ109156 Please refer to Page 5 ⇔ MX34R20VF1 SJ106351 Please refer to Page 5 ⇔ MX34R32VF1 SJ106352 Note 3) This product has different key mating type. Note 5) Contacts for part number (~F3) is post plated, (~F1 or ~F2) is pre plated. The only difference between the two last digits of the part number is plating. Note 7) This product is fixed by the contact DIP area (without leg) only. Please secure sufficient strength in the housing accordingly to the situation of usage before use . Note 8) Only the packaging (stick, tray, embossed) of these 3 items are different. JAE Connector Div. Proprietary. Copyright © 2021, Japan Aviation Electronics Industry, Ltd. 8/12 MB-0360-3 Outer Dimensions ■Socket Housing Unit: mm Number of Contacts Dimension A 3 10.8 5 15.2 7 19.6 Note) Drawing of 20 position type B 8 A C Dimension B 12.2 MX340 12.9 15.2 MX34E 11.7 15.7 12 16.3 16 20.7 20 25.1 24 29.5 28 33.9 32 38.3 36 42.7 40 47.1 Dimension C 21.3 15.2 ■Pin Housing Unit: mm Dimension A 12 24.2 16 28.6 20 33 B Number of Contacts Dimension B Dimension C 15.6 34.8 Note) Drawing of 20 position type A C JAE Connector Div. Proprietary. Copyright © 2021, Japan Aviation Electronics Industry, Ltd. 9/12 MB-0360-3 Outer Dimensions Unit: mm ■Angle Pin Header (DIP) B Number of Contacts C A Note) Drawing of 20 position type Dimension Dimension Dimension A B C 3 15.8 5 20.4 7 24.8 8 (MX34E) 18.1 12 19.1 16 23.5 20 27.9 24 32.3 28 36.7 32 41.1 36 45.5 40 49.9 10.7 18.7 14.2 18.1 16 19.9 ■Angle Pin Header (SMT) Unit: mm B Number of Contacts A Note) Drawing of 32 position type C Dimension Dimension Dimension A B C 3 18 5 22.6 7 27 8 20.1 12 23.7 16 28.1 20 32.5 24 36.9 28 41.3 32 45.7 36 50.1 10.9 JAE Connector Div. Proprietary. Copyright © 2021, Japan Aviation Electronics Industry, Ltd. 23.75 14 10/12 MB-0360-3 Outer Dimensions ■Straight Pin Header (Flow DIP) Unit: mm Number of Dimension Dimension Dimension Contacts A B C B Note) Drawing of 20 position type C A 5 20.4 7 24.8 12 25.1 16 29.5 20 33.9 24 38.3 28 42.7 32 47.1 36 51.5 40 55.9 10.4 23.7 13.4 ■Straight Pin Header (Reflow DIP) Unit: mm Number of Dimension Dimension Dimension Contacts A B C 32.5 32 45.7 13.3 19.8 B 20 A C Note) Drawing of 32 position type JAE Connector Div. Proprietary. Copyright © 2021, Japan Aviation Electronics Industry, Ltd. 11/12 MB-0360-3 Outer Dimensions ■Straight Pin Header (SMT) Unit: mm Number of Dimension Dimension Dimension Contacts A B C 29.4 20 38.2 32 51.4 B 12 16 19.5 Note) Drawing of 32 position type A C Technical Documents Specifications Handling Instructions Pin Housing (Cable connection) JACS-1754-4 JAHL-1754-1 Socket SMT Type JACS-1754-10 Others JACS-1754 JAHL-1754 Notice: 1. The values specified in this brochure are only for reference. The products and their specifications are subject to change without notice. Contact our sales staff for further information before considering or ordering any of our products. For purchase, a product specification must be agreed upon. 2. Users are requested to provide protection circuits and redundancy circuits to ensure safety of the equipment, and sufficiently review the suitability of JAE's products to the equipment. 3. The products presented in this brochure are designed for the uses recommended below. We strongly suggest you contact our sales staff when considering use of any of the products in any other way than the recommended applications or for a specific use that requires an extremely high reliability. (1) Applications that require consultation: (i) Please contact us if you are considering use involving a quality assurance program that you specify or that is peculiar to the industry, such as: Automotive electrical components, train control, telecommunications devices (mainline), traffic light control, electric power, combustion control, fire prevention or security systems, disaster prevention equipment, etc. (ii) We may separately give you our support with a quality assurance program that you specify, when you think of a use such as : Aviation or space equipment, submarine repeaters, nuclear power control systems, medical equipment for life support, etc. (2) Recommended applications include: Computers, office appliances, telecommunications devices (terminals, mobile units), measuring equipment, audiovisual equipment, home electric appliances, factory automation equipment, etc. * The specifications in this brochure are subject to change without notice. Please contact JAE for information. JAE Connector Div. Proprietary. Copyright © 2021, Japan Aviation Electronics Industry, Ltd. 12/12
