JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD

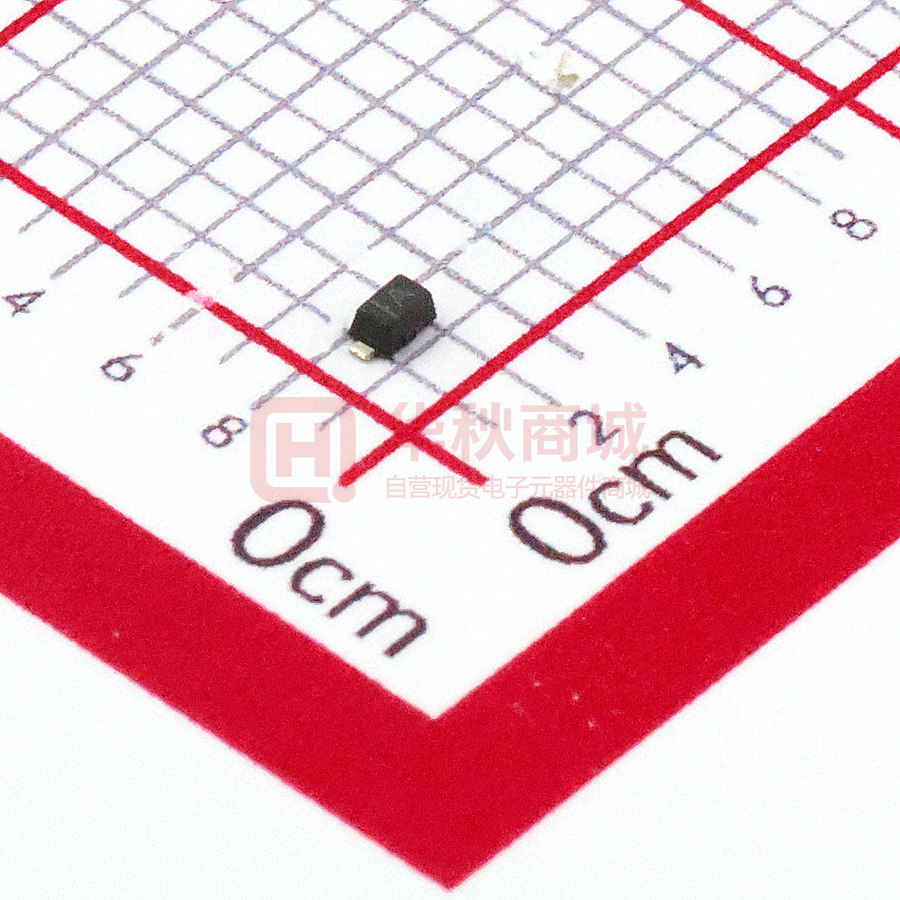

SOD-523 Plastic-Encapsulate Diodes
1SS400
High Speed Switching Diode
SOD-523
FEATURES
z
z
z
Small surface mounting type
High speed
High reliability with high surge current handing capability
MARKING:A
A
A
The marking bar indicates the cathode
Solid dot = Green molding compound device,
if none,the normal device.
Maximum Ratings and Electrical Characteristics, Single Diode @Ta=25℃
Parameter
Symbol
Limit
Unit
Non-Repetitive Peak Reverse Voltage
VRM
90
V
DC Blocking Voltage
VR
80
V
Forward Continuous Current
IFM
225
mA
Average Rectified Output Current
IO
100
mA
Non-Repetitive Peak Forward Surge Current @t=8.3ms
IFSM
2.0
A
Power Dissipation
Pd
150
mW
RθJA
833
℃/W
Junction Temperature
Tj
150
℃
Storage Temperature
TSTG
-55~+150
℃
Thermal Resistance Junction to Ambient
Electrical Ratings @Ta=25℃
Parameter
Symbol
Min.
Typ.
Max.
Unit
Conditions
Forward voltage
VF
1.2
V
IF=100mA
Reverse current
IR
0.1
μA
VR=80V
Capacitance between terminals
CT
3.0
pF
VR=0.5V, f=1MHz
Reverse recovery time
trr
4
ns
VR=6V,IF=10mA,RL=100 Ω
www.cj-elec.com
1
C,Mar,2015
Typical Characteristics
Forward
100
Characteristics
Reverse
1000
Characteristics
(mA)
Ta=100℃
REVERSE CURRENT IR
1
Ta
=2
5℃
Ta
=1
00
℃
FORWARD CURRENT
IF
(nA)
10
0.1
0.01
0.0
0.4
0.2
0.6
FORWARD VOLTAGE
0.8
VF
1.0
Ta=25℃
10
1
1.2
0
40
20
(V)
REVERSE VOLTAGE
Capacitance Characteristics
1.2
100
60
VR
80
(V)
Power Derating Curve
200
(mW)
150
PD
POWER DISSIPATION
CAPACITANCE BETWEEN TERMINALS
CT (pF)
Ta=25℃
f=1MHz
1.0
0.8
0
5
10
REVERSE VOLTAGE
www.cj-elec.com
15
VR
100
50
0
20
(V)
0
25
50
75
AMBIENT TEMPERATURE
2
100
Ta
125
150
(℃)
C,Mar,2015
SOD-523 Package Outline Dimensions
6\PERO
A
A1
b
c
D
E
E1
E2
L
'LPHQVLRQV,Q0LOOLPHWHUV
0LQ
0D[
0.510
0.770
0.500
0.700
0.250
0.350
0.080
0.150
0.750
0.850
1.100
1.300
1.500
1.700
0.200 REF
0.010
0.070
7° REF
'LPHQVLRQV,Q,QFKHV
0LQ
0D[
0.020
0.031
0.020
0.028
0.010
0.014
0.003
0.006
0.030
0.033
0.043
0.051
0.059
0.067
0.008 REF
0.001
0.003
7° REF
SOD-523 Suggested Pad Layout
www.cj-elec.com
3
C,Mar,2015
SOD-523 Tape and Reel
www.cj-elec.com
4
C,Mar,2015
