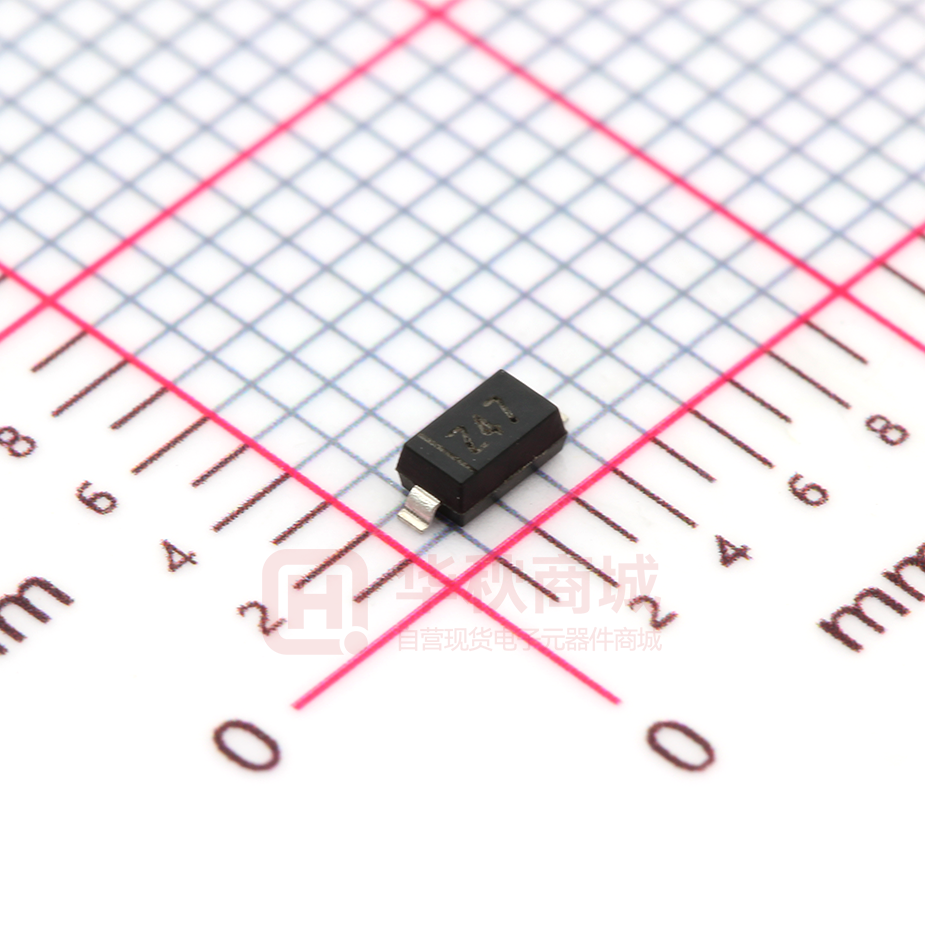

2CZ4007

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOD-123 Plastic-Encapsulate Diodes 2CZ4007 RECTIFICATION DIODE SOD-123 FEATURE Low Leakage Current Ideal for Surface Mounted Applications   MARKING: Z47 Z47 The marking bar indicates the cathode Solid dot = Green molding compound device, Z47 if none,the normal device. MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter Non-repetitive peak reverse voltage VRM Reverse Voltage VR VR(RMS) RMS reverse voltage Average rectified output current IO Value Unit 1000 V 700 V 1 A IFSM Non-repetitive peak forward surge current @t=8.3ms 7.5 A PD Power dissipation 350 mW Thermal resistance from junction to ambient 357 ℃/W Junction temperature 150 ℃ -55~+150 ℃ RθJA Tj Tstg Storage temperature ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Symbol Reverse voltage V(BR) IR=0.1mA Reverse current IR VR=1000V Forward voltage VF Total capacitance Ctot www.cj-elec.com conditions Test Min Typ Max Unit V 1000 5 μA IF=1A 1.1 V VR=4V,f=1MHz 15 pF 1 A-1,Jul,2016 Typical Characteristics Forward Reverse Characteristics 1000 Pulsed (nA) Ta=100 ℃ a T= a 2 5℃ REVERSE CURRENT IR 100 =1 00 ℃ 100 T IF (mA) Pulsed FORWARD CURRENT Characteristics 1000 10 1 0.2 10 Ta=25 ℃ 1 0.4 0.6 0.8 FORWARD VOLTAGE VF 1.0 1.2 0 200 (V) 400 600 REVERSE VOLTAGE 800 VR 1000 (V) Power Derating Curve Capacitance Characteristics 20 400 Ta=25℃ (mW) 300 PD 15 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) f=1MHz 10 5 0 200 100 0 0 5 10 REVERSE VOLTAGE www.cj-elec.com 15 VR 20 0 25 50 75 AMBIENT TEMPERATURE (V) 2 100 Ta 125 150 ( ℃) A-1,Jul,2016 SOD-123 Package Outline Dimensions Dimensions In Millimeters Min Max 1.050 1.250 0.000 0.100 1.050 1.150 0.450 0.650 0.080 0.150 1.500 1.700 2.600 2.800 3.550 3.850 0.500 REF 0.250 0.450 0° 8° Symbol A A1 A2 b c D E E1 L L1 θ Dimensions In Inches Max Min 0.041 0.049 0.000 0.004 0.041 0.045 0.018 0.026 0.003 0.006 0.059 0.067 0.102 0.110 0.140 0.152 0.020 REF 0.010 0.018 0° 8° SOD-123 Suggested Pad Layout www.cj-elec.com 3 A-1,Jul,2016 SOD-123 Tape and Reel www.cj-elec.com 4 A-1,Jul,2016
