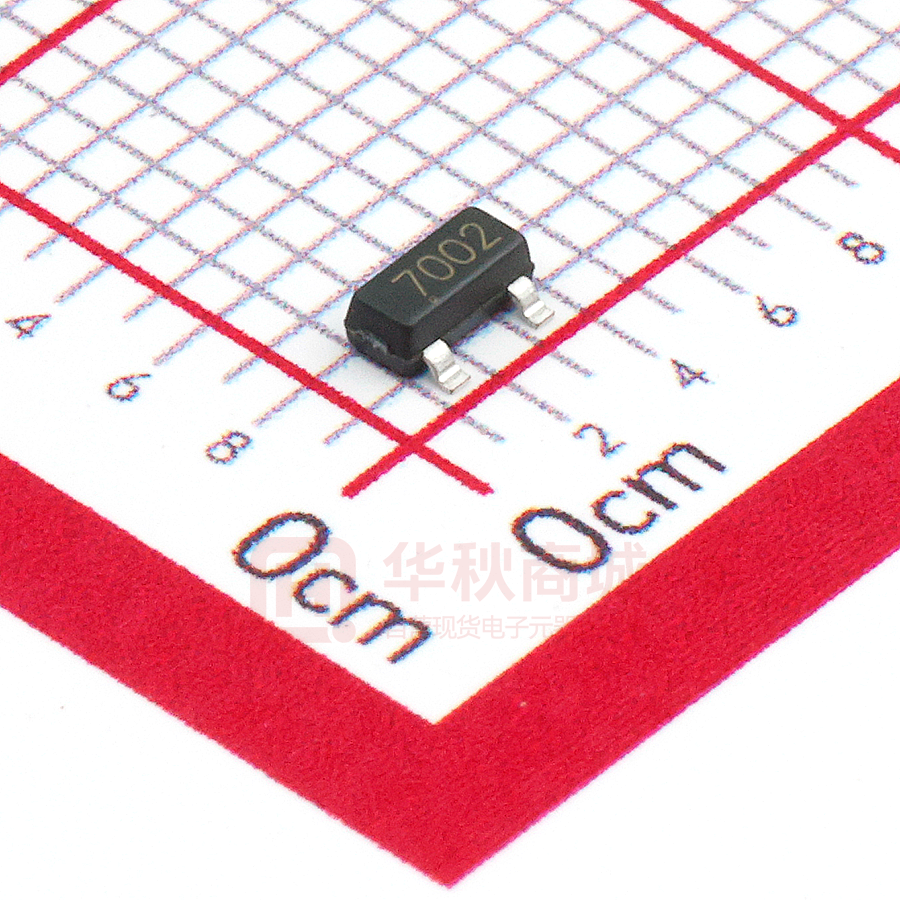

2N7002

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOT-23 Plastic-Encapsulate MOSFETS 2N7002 MOSFET (N-Channel) V(BR)DSS ID RDS(on)MAX SOT-23 5Ω@10V 60 V 3 115mA 7Ω@5V 1. GATE 2. SOURCE 1 3. DRAIN 2 APPLICATION Load Switch for Portable Devices z DC/DC Converter FEATURE z High density cell design for low RDS(ON) Voltage controlled small signal switch z Rugged and reliable z z High saturation current capability z Equivalent Circuit MARKING 7002=Device code Solid dot = Green molding compound device,if none, the normal device MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Parameter Symbol Value Unit Drain-Source Voltage VDS 60 V Gate-Source Voltage VGS ±20 V Continuous Drain Current ID 0.115 A Power Dissipation PD 0.225 W RθJA 556 ℃/W Junction Temperature TJ 150 Storage Temperature Tstg -50 ~+150 Thermal Resistance from Junction to Ambient www.jscj-elec.com 1 ℃ Rev - 2.0 MOSFET ELECTRICAL CHARACTERISTICS Ta =25 ℃ unless otherwise specified Parameter Symbol Test conditions Min Typ Max Unit V(BR)DSS VGS=0 V, ID=250 µA 60 Vth(GS) VDS=VGS, ID=250 µA 1 Gate-body Leakage lGSS VDS=0 V, VGS=±20 V ±80 nA Zero Gate Voltage Drain Current IDSS VDS=60 V, VGS=0 V 80 nA On-state Drain Current ID(ON) VGS=10 V, VDS=7 V Drain-Source On-Resistance RDS(on) Forward Trans conductance gfs Drain-Source Breakdown Voltage Gate-Threshold Voltage Drain-source on-voltage VDS(on) Diode Forward Voltage VSD Input Capacitance * Ciss Output Capacitance * Coss Reverse Transfer Capacitance * Crss 1.6 2.5 500 V mA VGS=10 V, ID=500mA 0.9 5 VGS=5 V, ID=50mA 1.1 7 Ω VDS=10 V, ID=200mA 80 VGS=10V, ID=500mA 0.5 3.75 V VGS=5V, ID=50mA 0.05 0.375 V 1.2 V IS=115mA, VGS=0 V 0.55 ms 50 VDS=25V, VGS=0V, f=1MHz 25 pF 5 SWITCHING TIME Turn-on Time * td(on) Turn-off Time * td(off) VDD=25 V, RL=50Ω, ID=500mA,VGEN=10 V RG=25Ω 20 40 ns *These parameters have no way to verify. www.jscj-elec.com 2 Rev - 2.0 Typical Characteristics Transfer Characteristics Output Characteristics 1.0 1.4 Ta=25℃ VGS=10V,9V,8V,7V,6V 1.2 Ta=25℃ VGS=5V Pulsed Pulsed (A) ID 0.8 DRAIN CURRENT DRAIN CURRENT ID (A) 0.8 1.0 VGS=4V 0.6 0.4 0.6 0.4 0.2 VGS=3V 0.2 0.0 0 1 2 3 4 DRAIN TO SOURCE VOLTAGE VDS 0.0 5 0 2 4 6 GATE TO SOURCE VOLTAGE (V) RDS(ON) —— ID RDS(ON) —— 3 VGS (V) VGS 6 Ta=25℃ Ta=25℃ Pulsed RDS(ON) 2 ON-RESISTANCE ON-RESISTANCE RDS(ON) ( Ω) ( Ω) Pulsed VGS=5V 1 VGS=10V 0 0.0 0.2 0.4 0.6 DRAIN CURRENT 0.8 ID 4 ID=500mA 2 0 1.0 ID=50mA 0 6 GATE TO SOURCE VOLTAGE (A) 12 VGS 18 (V) IS —— VSD 2 Ta=25℃ SOURCE CURRENT IS (A) 1 Pulsed 0.3 0.1 0.03 0.01 3E-3 1E-3 0.2 0.4 0.6 0.8 1.0 SOURCE TO DRAIN VOLTAGE www.jscj-elec.com 1.2 1.4 VSD (V) 3 Rev - 2.0 SOT-23 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° SOT-23 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein.JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 4 Rev - 2.0 SOT-23 Tape and Reel SOT-23 Tape and reel SOT-23 Embossed Carrier Tape P0 d P1 E C B W F A A A P Packaging Description: SOT-23 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). A-A Dimensions are in millimeter Pkg type A B C d E F P0 P P1 W SOT-23 3.15 2.77 1.22 Ø1.50 1.75 3.50 4.00 4.00 2.00 8.00 SOT-23 Tape Leader and Trailer Trailer Tape Leader Tape 100±2 Empty Pockets Components 50±2 Empty Pockets SOT-23 Reel D I G W2 H 3000 2500 2000 1500 1000 D2 D1 500 W1 Dimensions are in millimeter Reel Option D D1 D2 G H I W1 W2 7''Dia Ø178.00 54.40 13.00 R78.00 R25.60 R6.50 9.50 12.30 G.W.(kg) REEL Reel Size Box Box Size(mm) Carton Carton Size(mm) 3000 pcs 7 inch 30,000 pcs 203×203×195 120,000 pcs 438×438×220 www.jscj-elec.com 5 Rev - 2.0
